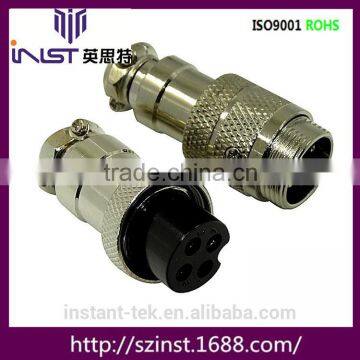

INST GX16 Circular Connector Socket Plug 4pin
-

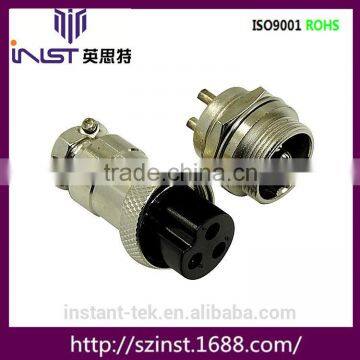

INST INST GX16 3Pin Male & Female Diameter 16mm Wire Panel Connector GX16 Circular Connector Socket Plug Quality Choice
-
INST GX16 2Pin Male & Female Diameter 16mm Wire Panel Connector GX16 Circular Connector Socket Plug
-
INST M20D 4pin Nylon IP68 Waterproof Connector
-
INST Popular RJ45 8 Pin Couple of Straight Connector
-
INST Popular Rj45 Assembly Field Connector Quality Choice
Product Details
| Place of Origin | Guangdong, China | Brand Name | INST | |
| Model Number | XS16 | Type | RCA | |
| Application | Power | Gender | Male |
Product Description
Inst GX16 circular connector Socket Plug 5pin
Description | Details | Code |
1. Connector Size | INST-XS | M8 |
2. Current Rating | 7A | 7 |
3. Number of Contacts | 3,4 | 3,4,5,6,7 |
4. Connector Type | Without SR | B |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation | M |
8. Mating Style | Screw | S |
9. Backs hell | Straight | L |
10. Waterproof Rating | IP68 | 8 |
Material: Core Material: PA6+30%GF UL94V0 Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45℃~+105℃ Protection Ration: IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.
| ||
