Spy Recorder With ip Phone Digital 16 Ports Voice Recorder
US$ 551.8 - 649.18
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card PayPal
You May Like
-
Usb Digital Recorder Phone Repeater With 16 Ports Usb Interface Recorder
-
Cellphone Recorder Voice Repeater With ip Phone 16 Ports Usb Recorder
-
Voice Recorder Mini Digital Recorder 16 Ports ip Phone Recorder Factory With Low Price
-
Phone Recorder Voice Digital Recorder 16 Ports
-
16 Line Phone Recorder Box/telephone Recorder/electronic Voice Box
-
Hot Selling !!16 Line Phone Voice Recorder Recorder Tool,mobile Recording
Product Details
| Brand Name | SKYLINE | Model Number | TYH8216 | |
| Record Audio Format | REC, WAV | |||
| Place of Origin | Guangdong, China |
Product Description
spy recorder with ip phone digital 16 ports voice recorder
Product Description
Embedded phone boxes is a fusion of advanced digital signal processing technology, embedded voice recording products, It is simple, without a computer, recording time is long, safe, reliable, low-power, more energy-saving features, it can give your work and life with to great convenience.
This product can be widely used in commercial telephone recording, power dispatch recording, hotline telephone recording, telephone recording complaints, Key positions in telephone recording, paging stations recording, recording of financial securities, public security alarm recording, call monitoring the security sector, aviation, railway, transportation scheduling recordings and the recording industry's production scheduling.
- Power that can work without connecting to the computer, independent, low power consumption, the product machine consumes less than 10 watts.
- Default standard 500G hard disk, support for G729 compression format, saving storage space, sustainable recorded 140000 hours of voice, high compression and high-quality, easy to play.
- Remote login through web browser to visit record box device, convenient management recording system.
- Support network management, support multi-user management and visit, you can set users with different operating authority, protection of audio data security, will not leak and lost.
- Support real-time query record, multi-criteria query, convenient and quick to find recording information, real-time playback of audio files, download and delete record audio files.
- Recordings may aggregate statistics by channel and time and support the sort of records in many ways, user-friendly to operate.
- Suport dual standard call number detection(FSK and DTMF), automatically adaptive capability, with caller ID accuracy rate up to larger than 99.9%.
- High Resistance design in telephone interfaces, to ensure no impact to the original telephone system and no impact to communication between the two sides.
- Using DSP digital technology, 16-channel work independently, high quality recording, voice processing ability, and the system is embedded linux software, safe and reliable, anti-virus.
- When the system disk will be full, the system will automatically remove the first audio files in order to ensure that the system can record continuously. Also be set to automatically back up recordings, ensure the recording of data is not lost.
- Support software telephone line voltage measurement function, can adapt to any telephone line.
- Support real-time monitor for telephone.
- With real-time monitoring function,can monitor the status of any one line and call voice.
- Support popup windows with incoming phonenumber.
- Support software telephone line voltage measurement function, can adapt to any telephone line.
- Telephone module telephone lines against lightning strikes and anti-short, safe, reliable, and durable.
- With log management and alarm log function.
- Support online software upgrades, convenient and practical.
- Support Simplified Chinese, English and other languages versions.
Packaging & Shipping
Packaging:
Please confirm that your kit includes the following items:
- Recording equipment
- Power adapter(12V)
- Network line
- USer Guide
Panel Description:

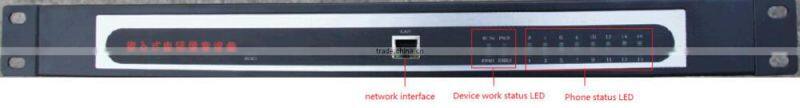

a. Front panel view:

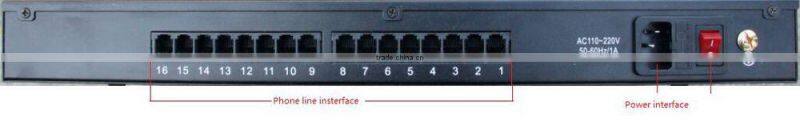

b. Rear view:
The installation process:
telephone line connection method:

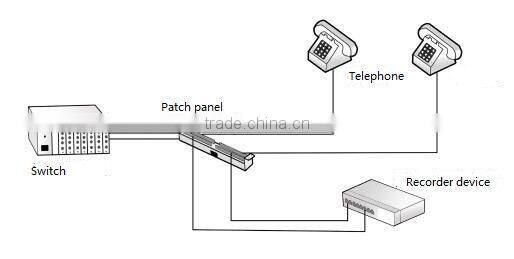

a. with a patch panel connection method:
If you have room patch panels, according to complete the installation shown above. Extension from the patch panel wiring to a cable to another leads to the telephone jack on the telephone recording box is complete.

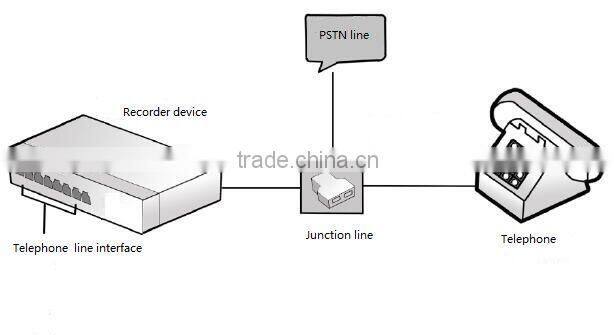

b. without a patch panel connection method:
You need to use the junction box. Voice switches, wireless access junction box extension of the input hole, 2 out of a hole with the supplied cable connected to the phone, one connected to the recording box, as shown below:
power:
Connect the power line that comes with recording equipment, power supply, front panel power indicator is lit red to indicate power on. About 60 seconds or so (if you are recording the power-down, It may need longer to start point, need to restore the file system information, please be patient), the former board 8-channel LED light will last the whole 3 seconds, and then will follow the line status indicator shows that the system has been launched, and can be start recording and network login.
After the system starts, please check recorder device led state.
| Status LED | Name | Normal state |
|---|---|---|
| POWER | Power indicator light | LED on |
| RUN | Work indicator light | LED flash |
| ERR1 | Error 1 indicator light | hard disk failures(LED on) |
| ERR2 | Error 2 indicator light | Encryption error(LED on) |
| ACT | Network status indicator | LED on or LED flash |
| 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16 | Phone status LED | LED on: telephone and telephone hook ring |
| LED off: hang up and phone calls to stop vibratio | ||
| LED flash: no connected phone line or line fault | ||
| LED fast flash: the phone module channel exception |
| parameters | value |
|---|---|
| telephone channels | 16 |
| Hard disk capacity | the default standard (500G) |
| Telephone Interface input impedance | > 20 Kohm |
| SNR | typical 60 dB |
| Frequency response | 300-3400 Hz |
| Speech coding | G729/A-law |
| Power supply | AC 85~264V/47~63Hz |
| Power | <10W |
| Temperature of the environment | 0~55 degrees Celsius |
| Weight | 3KG |
| size | Standard 19 inch 1U chassis 440mm*235mm*44mm |
Company Information
Enterprise culture
FAQ
FAQ:
. How about our service?
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
. What is our main express shipment?
DHL,UPS,FEDEX,TNT,EMS(can ship to anywhere all over the world)
Any questions, contact me freely
