INST M22D IP68 4pin Metal Waterproof Connector
- shenzhen
- T/T Credit Card
You May Like
-
INST 10 Pin DIN Male and Female Circular Cable Connector
-
INST M16 4pin Cable Waterproof Connector
-
INST 18mm 5PIN 5amp Molding Cable Waterproof Connector
-
INST 18mm 4PIN 5amp Molding Cable Waterproof Connector
-
INST 18mm 3PIN 5amp Molding Cable Waterproof Connector
-
INST 18mm 2PIN 5amp Molding Cable Waterproof Connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | Instantware | |
| Model Number | M20 | Type | Other | |
| Application | Power | Gender | Male |
Product Description

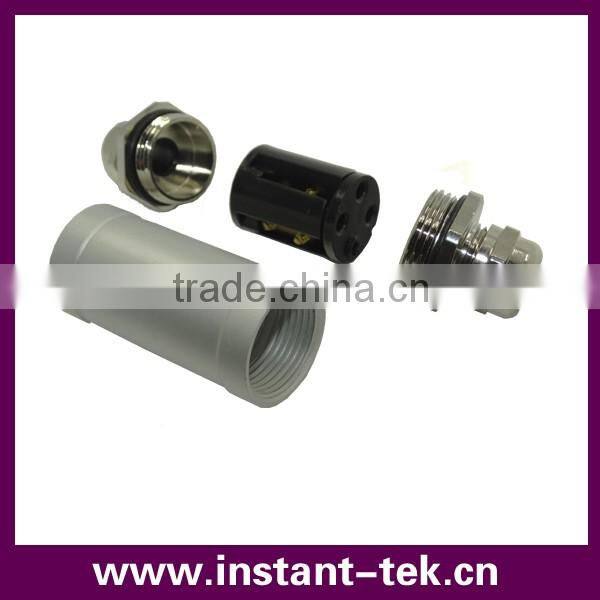

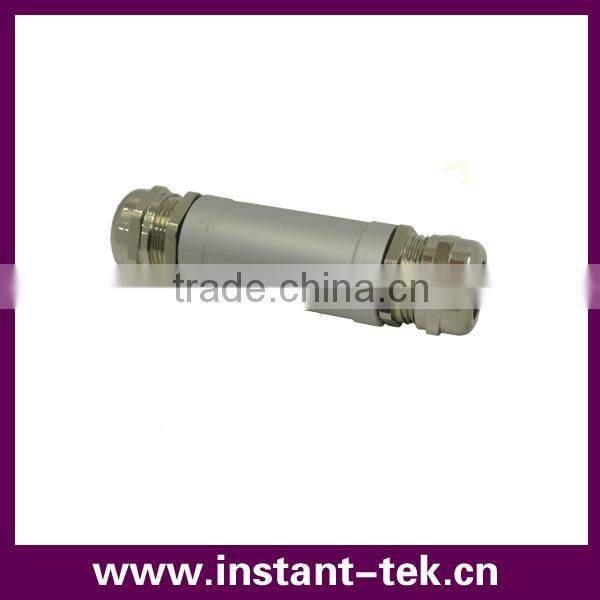

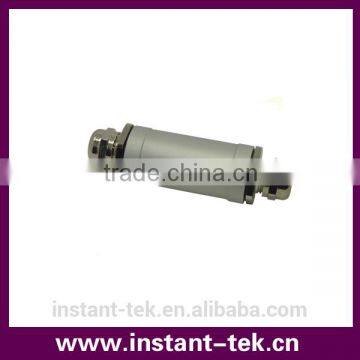

INST M22D IP68 4pin metal waterproof connector

Product Specs
Description | Details | Code |
1. Connector Size | INST-M22 | M22 |
2. Current Rating | 15A | 15 |
3. Number of Contacts | 3,4 | 3,4 |
4. Connector Type | Screw | S |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation /Molding(Solder) | M |
8. Mating Style | Screw | S |
9. Backs Shell | Straight | ST |
10. Waterproof Rating | IP68 | 8 |
Material: Core Material: PA6+30%GF UL94V0 Mold Material: Waterproof PVC Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45℃~+105℃ Protection Ration: IP67, 300mm water half an hour / IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.
| ||
Packing: 1. plastic bag 2. carton 3. Customize
Shipping:We could offer various shipping solutions for your choice, competitive express freight such as DHL/ FedEx/ UPS...
