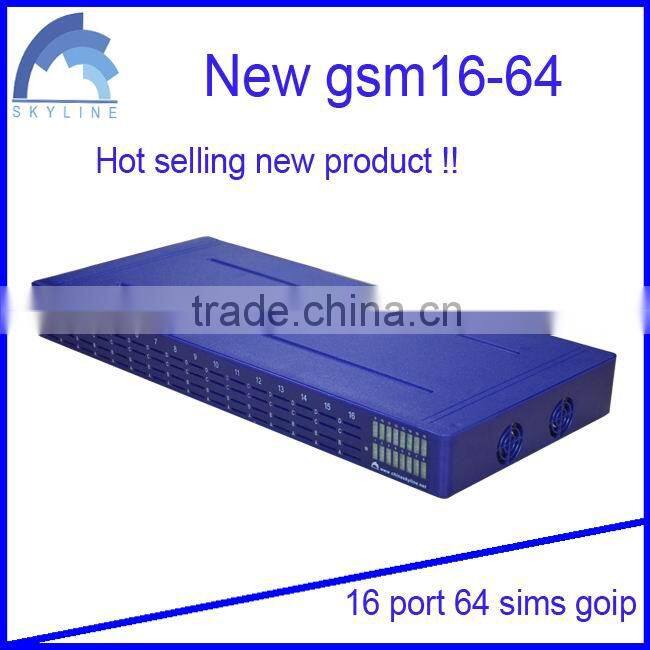

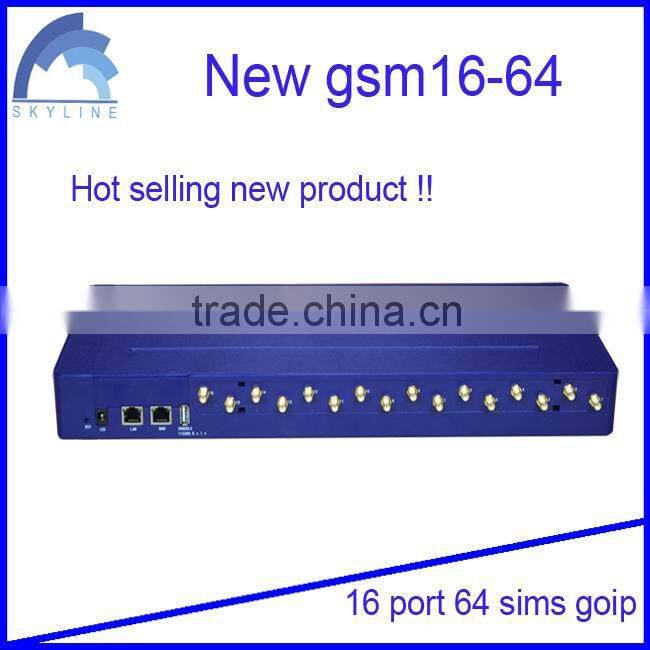

high quality goip gsm gateway 16 channels 16 ports with 64 sims best communications equipment

FOB Price

USD $1,250 - $1,251 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	SKYLINE
Model Number	SK GSM16-64		Type	VoIP Gateway

16 ports 64 slots goip 's new functions:

1. Support IMEI change automatic and support USSD

2. Support automatically detect the ACD ASR

3. Support automatically detect the sim card issue

4. Save your internet bandwidth ,15kb/s for 1 call

5. Including the sim bank feature of avoiding the sim card blocked

Overview:

Parameter data sheet

Features		Relay Encryption Solution(Fix IP blocking)
		Bandwidth Optimization
		Support SIM Rotating(one channel including 4 SIM cards)
		Changing SIM automatically(Fix SIM blocking)
		Base Station Switch
		VPN goip router
		Remote Control(Access your device system anywhere)
		Multi-Codec Support(G729 a/b/e,G723,G711 A/U law,iLBC)
		SMS Receive & Send
		Upgrade online or local
Network		IPv4,TCP,UDP
		DHCP, DNS, PPPoE
		Telnet, STUN
		HTTP,FTP,TFTP,ARP,NTP
		Encryption goip router
		WAN,LAN,USB
	SIM Frequency	GSM:850/900/1800/1900MHz CDMA:450/800/1900MHz WCDMA:850/900/1800/1900+2100MHz
	Software	Guide Initialization Web
		Call Forwarding goip router
		PIN Code Management
		AT, SMS,USSD
		Personification goip router
		Caller Anonymous
		Avoid FAS goip router
		High-Q ASR,ACD
		Echo/Silence control
		VOL control goip router
		RTP/RTCP RFC3551
		SIP V2.0 RFC3261
		Qos goip router
		IVR goip router
		Black/White List
		Linux Operation(Safe & Stable)
Hardware		Cooling Fans goip router
		Power Input:100-240V~50-60Hz 1.2A MAX Power Output:12V/5A
		RJ45&USB Cable support
		16 Antennas goip router
		Working Temperature:0~+50°C
		Working Moisture: 10 ~ 90 % RH
		HTTP Web Browser: Firefox/Chrome /IE/Opera
		16 Channel 64 SIM cards/16 Channel 16 SIM cards
		USB Serial Port , Baudrate:115200,8,n,1,n

Description:

GSM 850/1900/900/1800 Mhz
SIP V1/V2, Compatible with mainstream softswitch, SIP server and Asterisk/Open source PBX
16 channels 64 SIM cards goip router
4 sim cards per channel rotation using goip router
The SIM can Make calls from different Base Stations.
SIMs auto rotation according to ( Time limits - Day hours - successful calls - Unsuccessful calls - .. etc )
Removing Blocked SIMs or SIMs with no credit from routeing.
Remote configuration access. ( Web-interface ) . goip router
SIMs can make calls and SMS between each other. ( To simulate Human Behavior )
Sending USSD code for SIM recharge. goip router
working fine with DTMF.

Picture:

If you have any needs and questions , just contact with me freely.

WhatsApp: +86 18575412848 Tel: +86 18575412848
