16 port goip gsm gateway analog line gsm gateway 32 channel sim server/ sim bank/ gsm voip gateway

FOB Price

USD $395.38 - $396 / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port SHENZHEN PORT
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	skyline
Model Number	GOIP - 16		Type	VoIP Gateway

Product Description

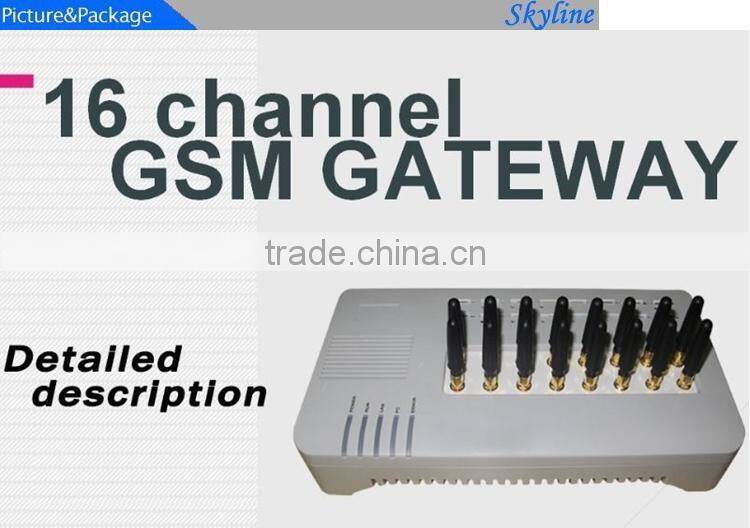

Goip 16 port gsm gateway/ sim card device

Description:

VoIP GSM Gateway GoIP bridges the GSM and the IP networks by enabling voice communications. It is installed on the Mobile SIM Card, you can register the GSM telephone on the VoIP Softswitch.it can be easily combined into arbitrary number of channels of Large Gateway Group. Low price, perfect sound quality and powerful function make GoIP GSM inevitable choice of system Integrators, traffic Business and soft switch Manufacturers.

sim card device

Other type:

sim card device


Key Features	Open Standard VoIP Protocols (SIP&H.323)
	Single or Multiple Server Registrations
	Two 10/100 Ethernet for WAN / LAN connections
	Peer-to-Peer IP Calls
	Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
	Line Echo Cancellation
	VLAN and QoS support
	NAT Transversal and Router functions
	Voice prompts, HTTP Web, Auto Provision support for configuration and updates
	Highly stable embedded Linux operating system in high performance ARM 9 Processor

Basic Features	LEDs for Power, Ready, Status, WAN, PC, FXS
	Dial in mode or dial out mode only
	Call forward from GSM to VoIP and VoIP to GSM
	Dial Plan
	Retransmit GSM Caller ID to VoIP terminal

Enhanced Features	Dynamic selection of codec
	Advanced jitter buffer
	Automatic traversal of NAT and firewall
	VLAN / Qos
	Router
	Echo cancellation for Speakerphone
	Comfort noise generation (CNG)
	Voice activity detection (VAD)
	Auto provisioning (requires auto provisioning server)
	On line firmware upgrade
	Multi-language support: English and Chinese

Supported Standards	ITU: H.323 V4, H.225, H.235, H.245, H.450
	RFC 1889 - RTP/RTCP
	RFC 2327 -SDP
	RFC 2833 - RTP Payload for DTMF Digits, Telephony Tones and Telephony Signals
	RFC 2976 - SIP INFO Method
	RFC 3261 - SIP
	RFC 3264 - Offer/Answer model with SDP
	RFC 3515 - SIP REFER Method
	RFC 3842 - A Message Summary and Message Waiting Indicator
	RFC 3489 - Simple Traversal of User Datagram Protocol (UDP) Through Network Address Translators (NATs)
	RFC 3891 - SIP "Replaces" Header
	RFC 3892 - SIP Referred-By Mechanism
	draft-ietf-sipping-cc-transfer-04 - Session Initiation Protocol Call Control Transfer
	Codec: G.711 (A/µ law), G.729A/B, G.723.1
	DTMF: RFC 2833, In-band DTMF, SIP INFO
	Operating temperature: 10°C to 40°C (50°F to 104°F)

Physical and Environmental		Storage temperature: 0°C to 50°C (32°F to 122°F)
		Power: 12 VDC 2A (110V-220V) (AC/DC adapter included)
		Warranty: one year

sim card device

16 port goip

sim card device

FAQ
	Question	Answer
1	What is main funtion of the 16 ports terminal gsm voip gateway GoIP?	For call terminal
2	What is the software can be supported by GoIP?	VOS,VPS,VoIP switch,3CX,P·B·Xes,free PBX,MOR
3	What is the hardware can be supported by GoIP?	IPPBX and so on
4	What is the bandwidth requested by GoIP?	It is up to your voice code.G723 need 23kbps per channel,G729 need 34kbps, G711 need 90 kbps
5	Is there any 32 port or 64 port GSM VOIP GATEWAY?	Each gsm port need 30-45 kpbs upload,and normally for adsl's upload bandwith is 512 kpbs. So max is 16 port .
6	What is the differnce between the new GoIP(antena bulit in)and the previous GoIP?	The function is the same with the previous GoIP.The only difference is antena. New GoIP antena is bulit in the board.
7	What is the communication network can be supported by GoIP?	Only GSM
8	How about our service?	Pls don't worry.If you have some problem,our engineer will give u help at the first time
10	What is our main express shipment?	DHL,UPS,FEDEX,TNT,EMS(can send to all over the world)

NOTES

>We provide strong FREE tech support about VOIP server and A-Z termination. (6 days*12 hours)

>We can help you rent a VoIP server in USA.

>We can provide copy version VOS.

>We can install Relay server, SMS server,SMB server for you.

(for free)

>We can offer voip terminal guide.

>We may need your termina routes.

>We offer full tech support untill your gateway runs

Any enquiry, Contact me freely.

WhatsApp: +86 18575412848 Tel: +86 18575412848
