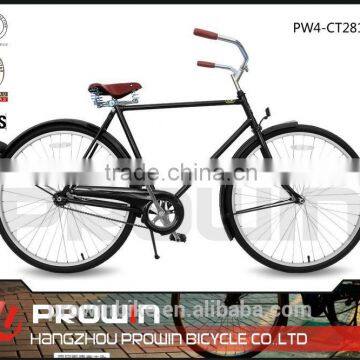

2014 NEW DESIGN 28 new style MEN city bike(PW4-CT28101)

PW4-CT28101

Frameset

Frame

*28” Dutch style city bike, TIG pulse argon welding

*30*34*200mm H/T, 28.6*1.2T bend T/T, 28.6*1.2T, WB: 1100mm

*The welded regular seat collar

*heavy duty painted hi-ten steel TIG welded

*Brazed-on 3.5mm press end

Fork

*28” Painted  TIG pulse argon welding Hi-ten steel fork w/

 ID*OD*L*B: 22.2*25.4*231*90mm

*welded 3.5mm steel pressed ends

TRANSMISSION PARTS

Front Hub

QS-208 type,Steel,14G*36H* 85W*120mm w/ ED safety hooks& washer, CP flange nut

Rear Hub

Kunteng KT-305R, Steel, 3/8"*14G*36H*110w*155L , ED black w/ coaster brake accessories &18T freewheel

Pedals

YH-61X,environmental Pp, 97*52 w/ ball retainer & reflectors

Bottom Bracket

D axle, Steel black W/ thread on right & left & lock washer , set-9pcs

Crank

Two pcs, 1/2”*1/8”*44T ,steel ED

Chain

KMC 410,Steel, BLACK

Components

Saddle

YJ-1093, PVC padded PU cover black, W/ CP Steel rail & clamp

Seat post

25.4*1.2T*300mm,steel

Handlebar

Steel,620mmL*22.2mmOD*1.2T,H=40mm TIG pulse argon welding, ED

Grips

YX-ZYZW29, environmental Pvc, single density,22.2mm*1.6T,L=120mm black,

Front Brake

Nil

Rear Brake

KT Coaster brake

Wheels

Tires

*28”*1.75” black w/ white side wall

*28”1.75” inner tubes, artificial rubber, A/V

*28 rims straps, rubber

Rims

14G*36H,28”*1.75”,alloy double wall, H=30mm, black side wall

Spokes

#45 F&R L=279mm, Steel UCP w/UCP steel Nipples

Extras

Fenders

Steel fenders

Kick stand

Alloy, central mount double leg  type

Assemble

85% S.K.D.(separately knocked down)

*THE HANDLEBAR, STEM, BRAKE LEVER & GRIPS ASSEMBLED TOGETHER

*THE SEAT PILLER PIN ASSEMBLED ON THE BIKE

*THE INNER BOX WEIGHED INDIVIDUALLY

*THE SADDLE, SEAT POST, PEDDLE& SEAT UNASSEMBLED IN A POLYBAG
