HDPE Geonet
USD $0.9 - $1.2
/ Square Meter
5000 Square Meters(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | OEM or ROAD | |
| Model Number | CE131, CE151,CE121,CE141 |
Product Description
Specifications
1)geonet2)material: high-density polyethylene (HDPE) .
3)Spec:CE121,CE131,CE151
4)width:2m or 2.5m

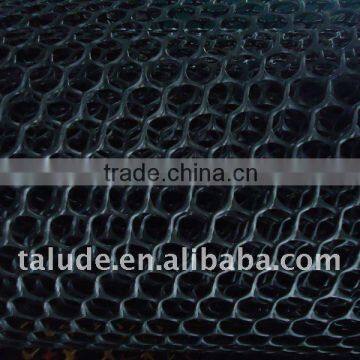

Geonet
The introduction and application of the geonet:
- It is made of high-density polyethylene (HDPE) and the ultravioresistant agent with the property of aging resistance and erosion resistance.
- Using the geo-net on the roadbed of the roadway and railway can distribute the load effectively, improve the loading capacity and the stability of the roadway, and prolong its service life.
- Spreading the geo-net in the dyke protection in the reservoir and the river can protect it from the landslide.
- And with the features of good flexibility and strong erosion resistance, using it in the coast engineering can amortize the concussion and the erosion of the surf
Spec and property indexes of geonet
Spec Item | CE121 | CE131 | CE151 | DN1 | HF10 |
Weight per sq.m.(g/m2) | 730±35 | 630±30 | 550±25 | 750±35 | 1240±60 |
Mseh size(mm) | 8±1X6±1 | 27±2X27±2 | 74±5X74±5 | 10±1×10±1 | 10±1×6±1 |
Net width(m) | 2.00+0.06or2.50+0.06 | ||||
Length of the reel(m) | 50.00+1or40.00+1 | ||||
Maximum drawing force≥(KN/m) | 6.2 | 5.8 | 5.0 | 6.0 | 18 |
Remark | The special spec or size can be manufactured according to the demands of the contract or agreement | ||||
