plastic geocell weld distence 400, 330, 660,800

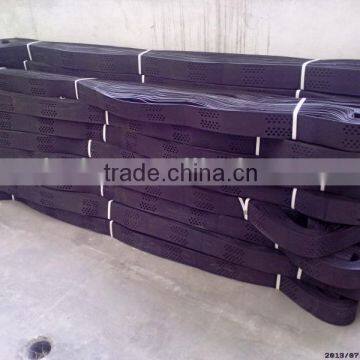

Geocell is a net-shaped cell structure made by welding high intensity thermoplastic
sheet.

Jonit distance:400mm, Mesh Size: 282mmx 282mm

Roll Width: 5.7M (Fixed), Roll length: 6.22M

Thickness: 1mm,1.2mm,1.5mm,2mm

Height: 50mm,100mm,150mm,200mm

It is flexible: folded during transportation, stretching out and beingfilled with stone or concrete during service, and forming into struct with powerful
lateral confinement and rigidity.

It can be used as cushion coat to strengthenloading capacity of weak ground or slope protection structure, as well as stopstructure, and so on.

Functions:

1.Fix railway ground.

2.Fix weak ground of roads.

3.Block loading capacity.

4.Treat river way of shallow water.

5.Act as support in pipeline and sewer.

6.Act as comprehensive block stopping land sliding and bearing loading capacity.
7.Act as independent wall, dock and break-water.

8.Treat desert, beach, riverbed and bank

Geocell (Materials: HDPE)

Notes:

(1)welding distance:330mm~800mm

(2)we can produce smooth/textured geocell, perforated/non-perforated geocell

(3)The special spec or size can be manufactured according to the demands of the contract
