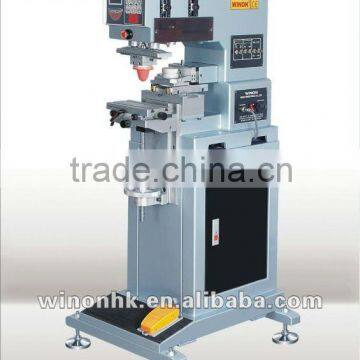

WN-122AE WINON Single Colour Inkcup Pad Printing Machine
- HONG KONG
You May Like
Product Details
| Condition | New | Plate Type | Other, Tampon Printing | |
| Place of Origin | Guangdong, China | Brand Name | WINON | |
| Model Number | WN-122AE | Usage | Label Printer | |
| Automatic Grade | Semi-Automatic | Certification | CE | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
WN-122AE One Colour Pad PrinterUsage: printing on electronic products, home appliance, toys, stationeries and plastics.
WN-122AE One-Colour Pad Printer
Usage: printing on electronic products, home appliance, toys,
stationeries and plastics.
TECHNICAL SPECIFICATIONS:
| MODEL: | WN-122AE |
| INKCUP(MM): | DIAMETER 86 |
| CLICHE SIZE(MM): | 100 X 200 |
| PRINTING AREA(MM): | DIAMETER 75 |
| MAX PRINT(MM): | 280 |
| CYCLE/HOUR: | 1600 |
| POWER(W): | SINGLE-PHASE, 110V OR 220V, 50/60HZ, 20W, 6BAR |
| DIMENSION(MM): | 770 X 580 X 1400 |
| WEIGHT(KG): | 110 |
SINGLE-COLOR INKCUP PAD PRINTER:
1. Made of High-Quality Aluminum;
2. Single Colour Inkcup;
3. Microelectronic Keyboard Control Operating Interface;
4. Rubber Heads with Independent Upper/Lower Strokes;
5. Speed Regulation and Control;
6. X, Y and Z Axles; and
7. Angled Adjusting Workbench.
This machine is greatly known for its high printing efficiency, simple operation system, and its wide application ranges, such as flat, curvy and irregular surfaces. It is widely employed on surfaces of electronics, electric appliances, hardware, plastics, toys, stationeries, and etc. This machine can also be assembled with such fittings as cleaning device and hot air system according to your special needs.
Ink mode:
Made with imported ceramic ring, sealed inkcup reduce ink waste maximally and the evaporation of the odor of the ink. Ink is stored in the cup for longer duration keeping its stable viscosity. It is known for being economical and environmental-friendly.
WOODEN CASE
PLEASE ADVISE IF YOU NEED FUMIGATION
