Home > Products > geocell > HDPE smooth geocell(perforated or no perforated)

HDPE smooth geocell(perforated or no perforated)

FOB Price

USD $1 - $6 / Square Meter

2000 Square Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	OEM or ROAD
Model Number	TGLG-50-400 TGLG-100-400 TGLG-150-400 TGLG-200-400		Material	PP

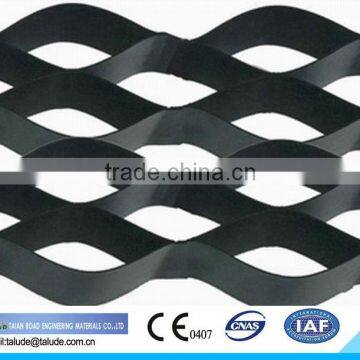

1)HDPE smooth geocell
2)perforated or no perforated
3)height:50~200mm
4)welding distance:300`800mm

Introduction: Geocell is a net-shaped cell structure made by welding high intensity thermoplastic

sheet. It is flexible and folded during transportation, stretching out and being filled with stone or

concrete during service, and forming into structure with powerful lateral confinement and rigidity

Functions:

1.Geocell can be used as cushion coat to strengthen loading capacity of weak ground

2.Geocell can paved in slope as slope protection structure.

3.Geocell can be used to build the support block structure

Properties of Geocell (Materials: HDPE)

Item Model	Height (mm)	Welding distance (mm)	Sheet thickness (mm)		Tensile yield strength of the cell (MPa)	Seam peel strength (N)
Item Model	Height (mm)	Welding distance (mm)	smooth	textured	Tensile yield strength of the cell (MPa)	Seam peel strength (N)
TGLG-50-400	50	400	1~1.1	1.4~1.5	20.0	500
TGLG-100-400	100	400	1~1.1	1.4~1.5	20.0	1000
TGLG-150-400	150	400	1~1.1	1.4~1.5	20.0	1500
TGLG-200-400	200	400	1~1.1	1.4~1.5	20.0	2000
TGLG-75-330	75	330	1~1.1	1.4~1.5	20.0	750
TGLG-100-330	100	330	1~1.1	1.4~1.5	20.0	1000
TGLG-150-330	150	330	1~1.1	1.4~1.5	20.0	1500

Notes:

(1)welding distance:330mm~800mm

(2)we can produce smooth/textured geocell, perforated/non-perforated geocell

(3)The special spec or size can be manufactured according to the demands of the contract
