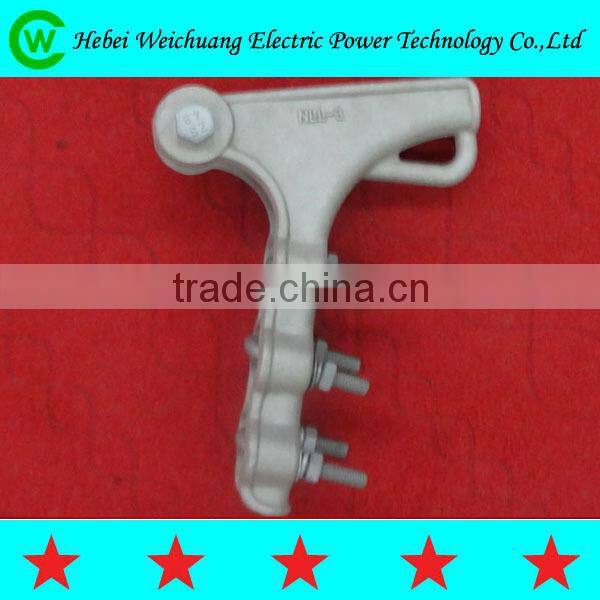

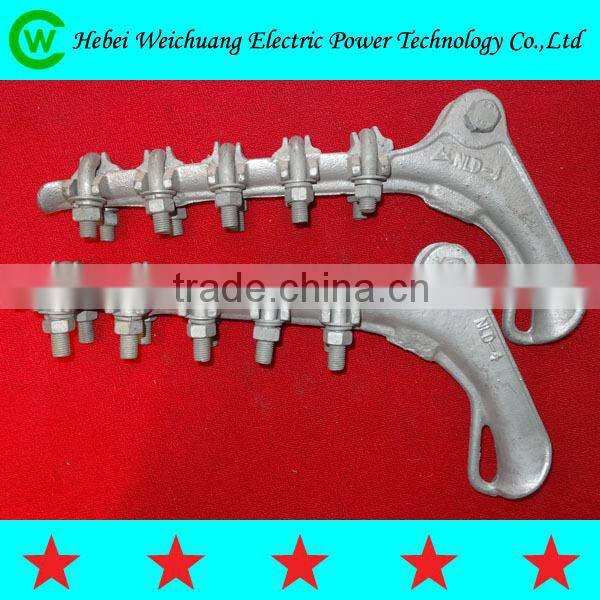

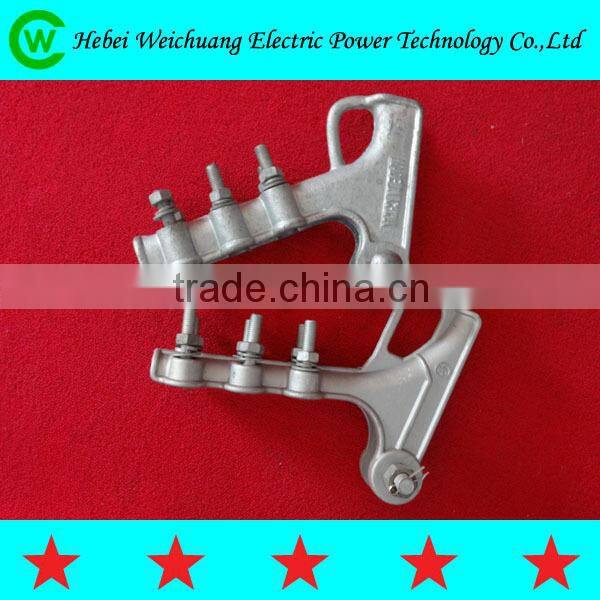

Bolt Type Strain Clamp/tension Clamp(aluminium Alloy Strain Clamp)
- tianjin
- T/T
You May Like
-
NLL-3 70KN Aluminum Alloy Strain Clamp
-
NLL-3, 3U Bolt 70KN Aluminum Alloy Strain Clamp
-
Galvanized Aluminium Preformed Opgw/adss Cable Clamp
-
China Manufacturer Galvanized Aluminium Preformed Opgw/adss Cable Clamp
-
Electronic Cable Aluminium Alloy NLL Strain Clamp (bolt Type)
-
2014 China Manufacture Aluminium Dead End Alloy Strain Clamp
Product Details
| Place of Origin | Hebei, China | Brand Name | weichuang | |
| Model Number | NLL | Usage | Other, strain clamp | |
| Material | Aluminium | Structure | Other, strain clamp | |
| Standard or Nonstandard | Standard |
Product Description
Specifications
bolt type strain clamp(aluminium alloy strain clamp)1.90% exportation
fessional manufacturer
3.aluminium
bolt type strain clamp(aluminium alloy strain clamp)
Strain Clamps NLL series:
NLL series bolt type aluminium alloy strain clamp is suitable for 35KV or less than overhead circuit,fix aluminium wire of steel-aluminium wire on strain rod.Overhead insulation aluminium conductor,it is for mating insulation aluminium cover,it takes insulation protection.

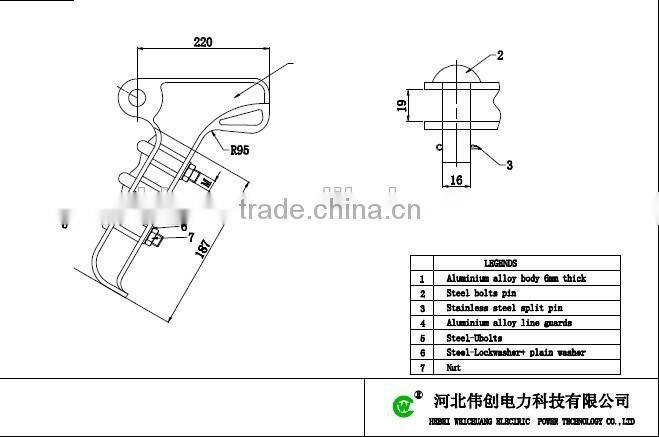

Type | Conductor Dia | Dimension(mm) | Failure load not | |||
| (mm) | L | I | C | D | less than(KN) |
NLL-1 | 5.1-11.4 | 125 | 110 | 19 | 16 | 40 |
NLL-2 | 8.9-18.5 | 175 | 186 | 24 | 16 | 40 |
NLL-3 | 5.0-15.0 | 190 | 205 | 18 | 16 | 70 |
NLL-4 | 12.1-21.8 | 300 | 285 | 30 | 18 | 90 |
NLL-5 | 18.0-30.0 | 445 | 345 | 36 | 24 | 120 |
Why Choose Us
•guarantee excellent workmanship
•Competitive price link fitting
•Small order accepted
•Prompt delivery
•Accurate CAD in drawing
•L/C,T/T,Western Union short Payment
