1000kw water turbina/ Kaplan turbine generating unit/Hydropower plant

1000kw water turbina/ Kaplan turbine generating unit/Hydropower plant

                                                                    Deyang Baota Electromechanical Equipment Co., Ltd

High efficiency Kaplan turbina/1000kw turbine

 1000kw Turbina specification

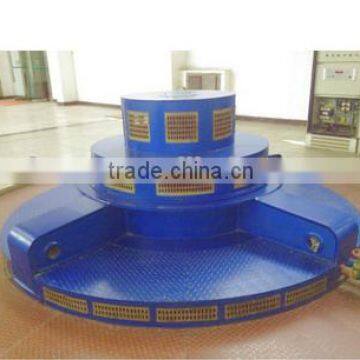

 Vertial Kaplan Turbine/Turbina generator unit

Kaplan runner

Kaplan runner with 3 to 6 blades, fixed blades runner, blades are casted and then welded on the runner hub, and bolts connection with draft cone. Regarding the adjustable blades runner, the hub is designed to be hollow, and a control rod is designed in the shaft middle to change blades angle in order to suit different flow.

Runner material: stainless steel, or other specified by the client

Kaplan runner has been manufactured by us all this high strength, higher efficiency, and longer service life. The factory tests including static and dynamic balance test, UT test, and dimension measurement.

 1.About us:

Deyang Baota Electromechanical Co., Ltd is a trading and manufacturing company which is a specialized manufacturer of medium-and small-sized water turbina generators. We are located in Deyang City, Sichuan Province, one of the three largest manufacturing base of Chinese Heavy Industry that we can give full play to Deyang's manufacturing resource advantage.Our company has advanced equipment,rich and strong technology force and have our own R&D team as well as after-sales service team. All of our products are designed and manufactured by ourselves that we can ensure the products have advanced and reliable performance.

2.Baota's main business:

2.1 For New Hydro Power Projects:

- Site survey & design

- Conmplete E & M equipments supply and related services

- Erection and Commissioning

- Plant management and maintance

( Ranging from trash defender, hoist and gate of water in-take to penstock, main powerhouse equipments and auxiliaries, first and secondary electrical equipments, then to substation, transmission line, even distribution station.)

2.2 For Old Hydro Power Projects:

- Spare parts supply

- Technical imporving and equipments updating

3. Applications & Suitable Water Head:

1.Power: 100kw~100Mw

2.Frequency: 50hz or 60hz

3.Output Type: AC three phase

4.Output voltage:400V, 3.3KV, 6.3KV, 10.5KV, or 13.8KV

5.Working Water head:

- For Francis turbine 10~300m

- For Pelton turbine 80-1000m

- For Kaplan turbine 3~45m

- For Tubular turbine 2~25m

- For Turgo turbine 30-200m

6.Warranty period: 1 year(or more)

7.Lifespan: 30~50years

4.The brief sample model selection for the turbine:

 Main products show

Baota's All Kinds of High Effieciency Water Turbine for Hydropower Plant for Reference if You Are Interested

Product Process

Kindly Notice:

INFORMATION FOR ORDERING

Please supply information as fllowing when ordering.

1.Hydropower station’s name and address.

2.Hydraulic head parameter:max,min,designed(m).

3.Flow rate: max,min,designed(m3/s).

4.Hydropower station’s sea level elevation(m).

5.Installed capacity and quantity.

6.Frequency.

7.Voltage.

8.Draw water pipe’s length,diameter,material.

9.Hydropower station’s running way.

10.Environmental condition:max exterior temperature(℃).

11.Water quality.

12.Waer lever stage:upstream level,downstream level.
