High Quality 16dBi Yagi Antenna With SMA Connector
- Shenzhen
- T/T Credit Card PayPal
You May Like
-
GSM 15dBi Yagi Antenna With N-K/SMA Connector(Customized)
-
2.4G 25dBi Yagi Antenna With N-K/SMA Connector(Customized)
-
2.4G Digital Yagi Antenna With N-K/SMA Connector(Customized)
-
2.4G Wifi Yagi Antenna With N-K/SMA Connector(Customized)
-
High Quality 2.4G Wifi Yagi Antenna
-
Adaptor f Female to Sma Male Connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yetnorson | |
| Model Number | YNX-yagi-018 | Type | Outdoor |
Bubble envelope,Carton packaging or as your requirement
Product Description
Specifications
16dBi Yagi Antenna1.Frequency range:2400-2480MHz
2.Gain:16dBi
3.Connector customize

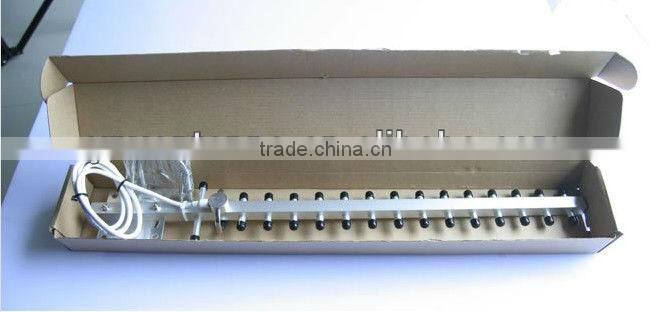

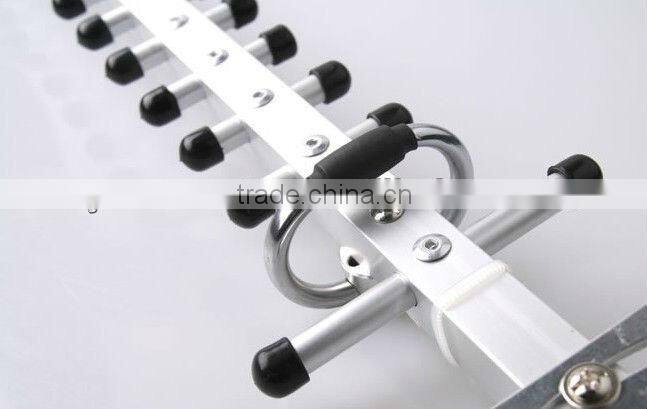

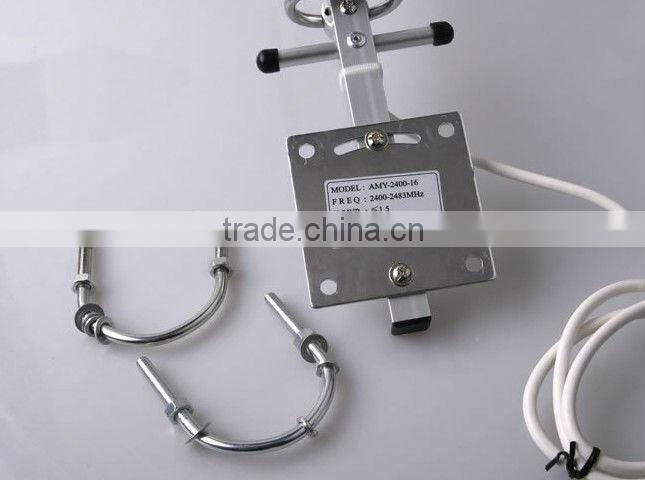

16dBi Yagi Antenna
1. Product Technical specification
| Electrical Characteristic | ||||
| Frequency Range | 2400-2480MHz | |||
| Gain | 16dBi | |||
| VSWR | ≤1.5:1 | |||
| Polarization | Vertical | |||
| Impedance | 50Ω | |||
| Maximum Input Power | 50W | |||
| Connector Type | SMA(CUSTOMIZED) | |||
| Mechanical Characteristic | ||||
| Lightning Protection | Direct Ground | |||
| Dimension | Φ740 mm | |||
| Weight | 400G | |||
| Radome Material | aluminum | |||
| Operating Temperature | -40°C~+70°C | |||
2. Payment Way:
We accept Paypal, T/T, Western Union, L/C and MoneyGram.
3. Shipment:
1. The parts from us are sure to have quality warranty, and they are double tested before shipping.
2. The items can be sent within 7working day after the payment reaches us, except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
4. Refund & Replacement
1. We can guarantee the product quality within 1year.
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.
Please contact usif you have any questions or other requirement
