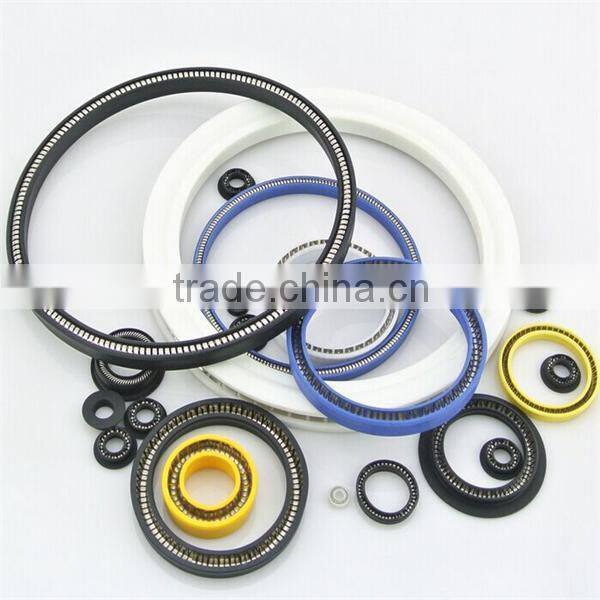

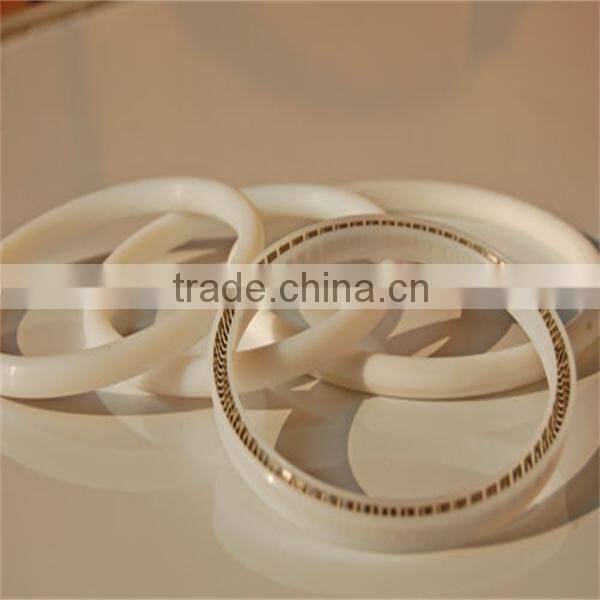

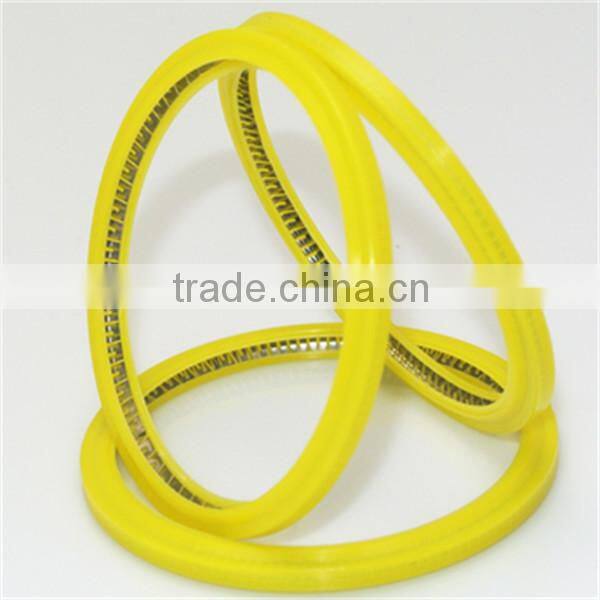

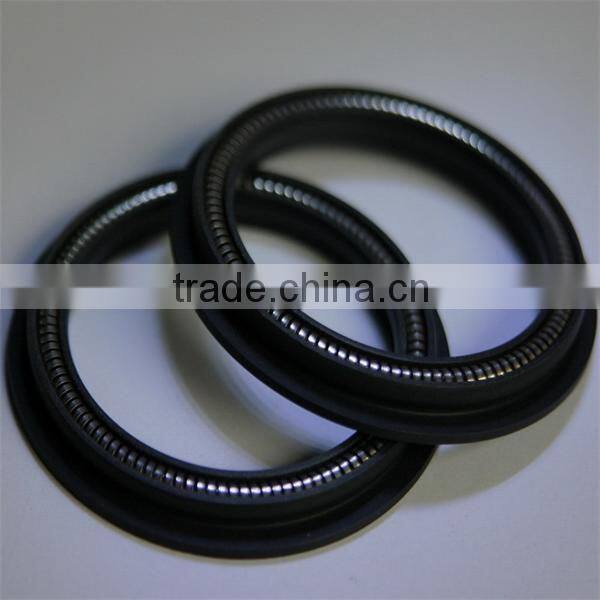

Xingtai Factory Customized Hydraulic Spring Energized PTFE Seal
- Tianjin
- Credit Card
You May Like
-
Hydraulic TYS Type PTA Spring Energized PTFE Seal for Rod for Excavator And/or Breaker
-
Yellow / Blue/ Black/white Telfon PTFE Spring Seal
-
Canted Coil Spring Energized PTFE Seal
-
High Performance PTFE Spring Energized Seal
-
PTA/PTB/PTU/PTW/PTC/PTC PTFE , TEFLON SPRING SEAL
-
Variseal/spring Seal/ptfe PTA/PTB/PTU/PTW/PTC/PTC Seal
Product Details
| Standard or Nonstandard | Standard | Style | Hydraulic | |
| Material | PTFE | Place of Origin | Hebei, China | |
| Brand Name | yuli and ZQ | Model Number | PTA/PTB/PTU/PTW/PTC/PTC |
Product Description
The Spring energized seal is a sealing device consisting of a PTFE or other polymer, energized by a corrosion resistant metal spring. When the seal is seated in the gland, the spring is under compression applying force on the gland sealing surfaces thereby creating a tight barrier to prevent gas or fluids from leaking. The spring also provides resiliency to compensate for seal wear, gland misalignment or eccentricity. While spring force provides adequate force for sealing at low pressure, at high pressure the system pressure augments the spring force to provide an even tighter seal. The PTFE Spring energized seal are precision machined from PTFE, filled PTFE and other high performance polymers.

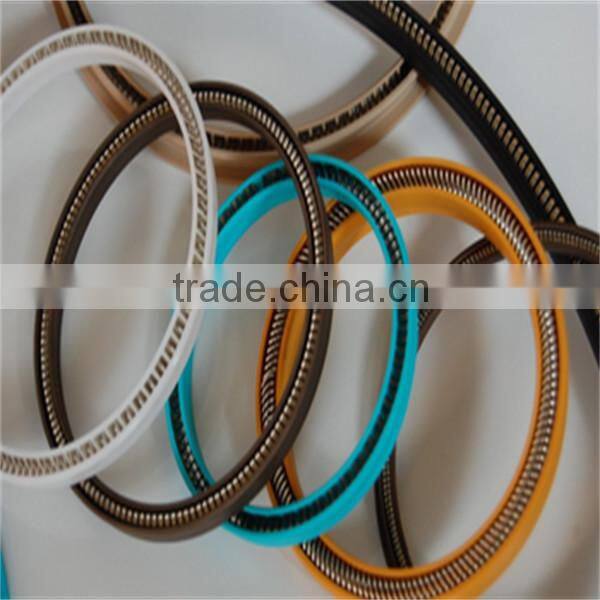

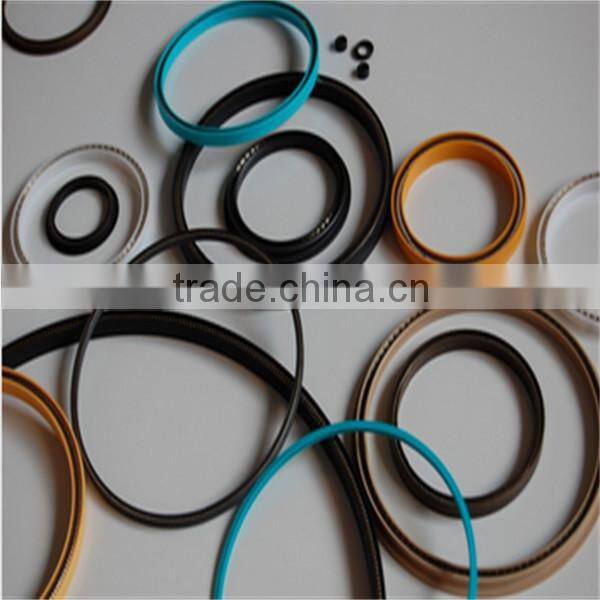

The different shape of spring seal/ spring energized seal

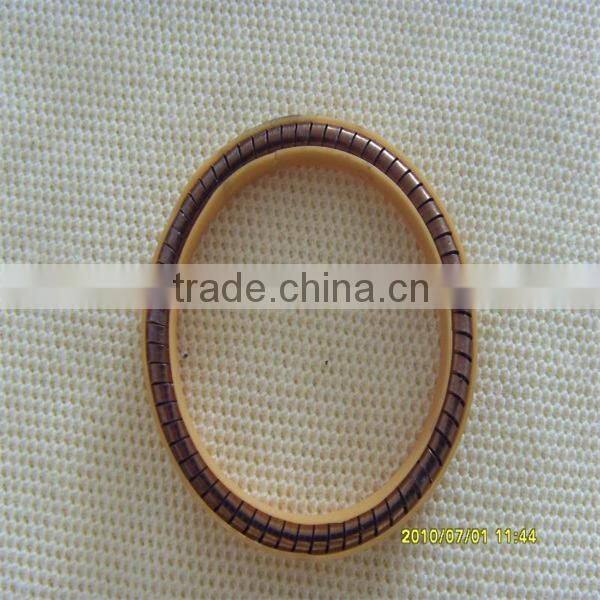

V-spring Helical Spring Slanted Coil Spring
1.V-spring seals are designed for used in high or low presseure dynamic reciprocationg or rotary applications.
2.Helical Spring seals are designed for used in static or slow, infrequent dynamic sealing application due to high compression load over a small deflection range, which make these seals suitable when low pressure or vacuum and very low temperature ( cryogenic ) are present.
3.Slanted Coil Spring Seals are for low friction, dynamic reciprocating and rotary applications. The seal produces a near flat load curve when compressed ( installed ). They provide constant predictable loads through their very wide deflection range.
Energized PTFE Spring Seals:
| Type | Use for | Technical | Application | Material |
| Symmetric | standard heel groove | temperacture:-40~+260 °C ,speed ≤m/s:15,pressure≤ Mpa:45 | virtually all fluids,chemicals and gases | PTFE-filled stainless steel |
| rod | standard heel groove | temperacture:-40~+260 °C ,speed ≤m/s:15,pressure≤ Mpa:45 | virtually all fluids,chemicals and gases | PTFE-filled stainless steel |
| piston | standard heel groove | temperacture:-40~+260 °C ,speed ≤m/s:15,pressure≤ Mpa:45 | virtually all fluids,chemicals and gases | PTFE-filled stainless steel |
| symetric for rod | flanged heel groove | temperacture:-40~+260 °C ,speed ≤m/s:2,pressure≤ Mpa:25 | virtually all fluids,chemicals and gases | PTFE-filled stainless steel |
| high-low lip rod | flanged heel groove | temperacture:-40~+260 °C ,speed ≤m/s:2,pressure≤ Mpa:25 | virtually all fluids,chemicals and gases | PTFE-filled stainless steel |
| inside | face seal | temperacture:-40~+260 °C ,speed:static or slow rotary,pressure≤ Mpa:45 | virtually all fluids,chemicals and gases | PTFE-filled stainless steel |
| outside | face seal | temperacture:-40~+260 °C ,speed:static or slow rotary,pressure≤ Mpa:45 | virtually all fluids,chemicals and gases | PTFE-filled stainless steel |
PE for innner packing and Cartonfoe the outside packing

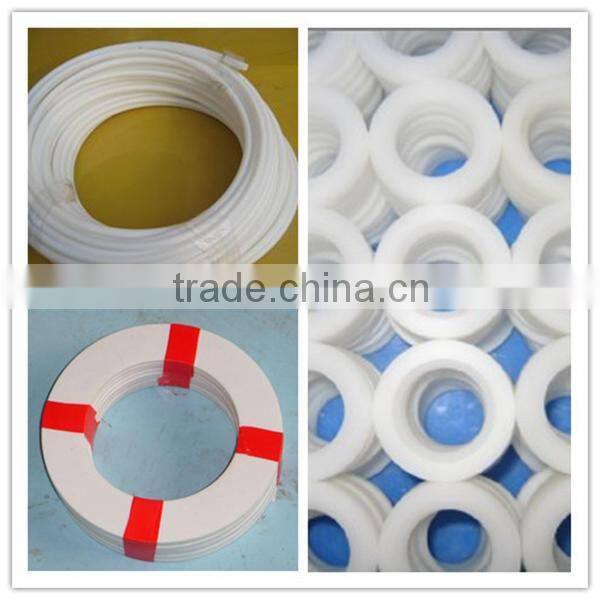

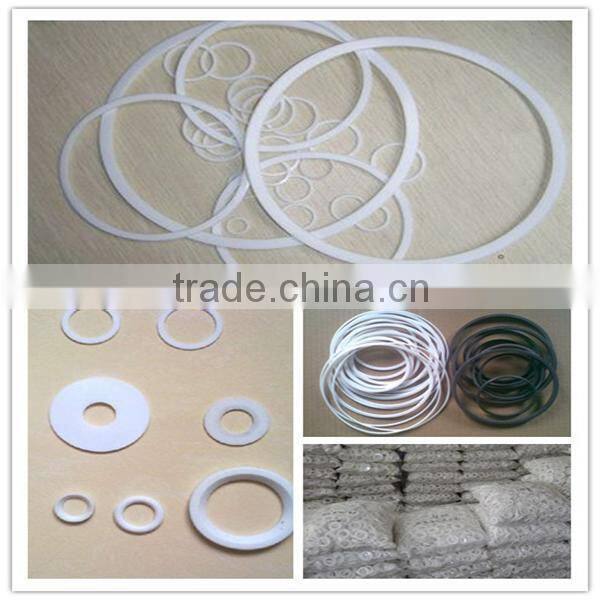

STANDADR OR NON -STANDARD PTFE GASKET /WASHER/WEARING RING
