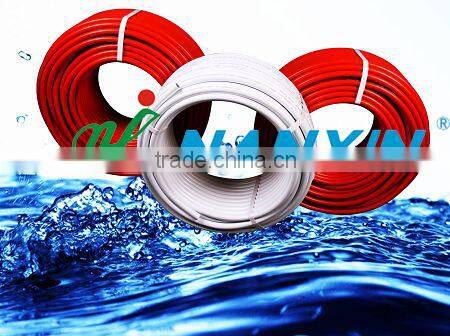

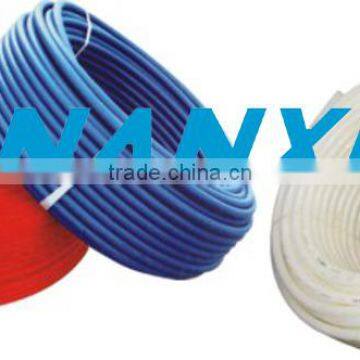

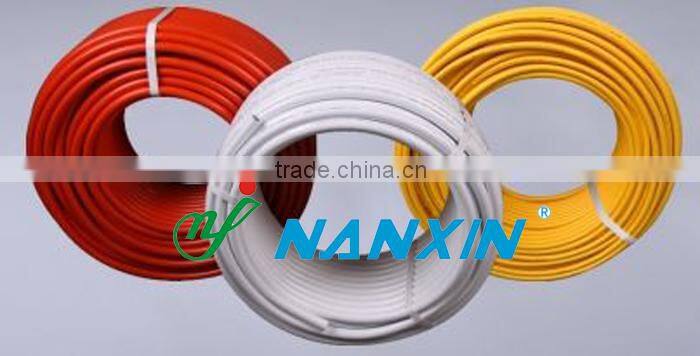

Pex-al-pex Pipe
- NINBO/SHANHAI
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | NANXIN | |
| Model Number | PN1Mpa | Material | PEX AL PE | |
| Specification | 16mm-32mm | Outer Diameter | depend on size | |
| Length | as required | Thickness | depend on size | |
| Standard | GB/T | Color | as required |
Product Description
Specifications
Certificate: CE; ISO9001Pressure: PN1.0Mpa
Size:1216;1418;1620;2026;2632
Colour: on request
15 years experience
Advantages:
High Temperature Resistance: the maximum sustained working temperature is up to 70 °C,the maximum transient temperature is up to 95°C
Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe. And 1/250 of steel pipe.
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium.
Corrosion Resistant: resist chemical matters or electron chemical corrosion.
Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50%over metal piping system.
Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
Long Life: more than 50 years under normal conditions
Recycled and Environment-friendly
| Name | Specification | Max bursting force | working pressure | Standard temperature | Package |
| (Mpa) | (Mpa) | (°C) | (m/pcs) | ||
| Overlapped Welded pipe | PE-AL-PE 1216 | 6 | 1 | -40—60 | 100 |
| PE-AL-PE 1418 | 5.5 | 1 | -40—60 | 100 | |
| PE-AL-PE 1620 | 5 | 1 | -40—60 | 100 | |
| PE-AL-PE 2026/25 | 4 | 1 | -40—60 | 100 | |
| PE-AL-PE 2632 | 3 | 1 | -40—60 | 50 | |
| PE-AL-PEX 1216 | 6 | 1 | -40—95 | 100 | |
| PE-AL-PEX 1418 | 5.5 | 1 | -40—95 | 100 | |
| PE-AL-PEX 1620 | 5 | 1 | -40—95 | 100 | |
| PE-AL-PEX 2026/25 | 4 | 1 | -40—95 | 100 | |
| PE-AL-PEX 2632 | 3 | 1 | -40—95 | 50 | |
| PEX-AL-PEX 1216 | 6 | 1 | -40—95 | 100 | |
| PEX-AL-PEX 1418 | 5.5 | 1 | -40—95 | 100 | |
| PEX-AL-PEX 1620 | 5 | 1 | -40—95 | 100 | |
| PEX-AL-PEX 2026/25 | 4 | 1 | -40—95 | 100 | |
| PEX-AL-PEX 2632 | 3 | 1 | -40—95 | 50 | |
| Butt joint welded pipe | PE-AL-PE 1216 | 5.5-8 | 1.25 | -40—60 | 100 |
| PE-AL-PE 1418 | 5.5-8 | 1.25 | -40—60 | 100 | |
| PE-AL-PE 1620 | 5.5-8 | 1.25 | -40—60 | 100 | |
| PE-AL-PE 2026/25 | 5.5-8 | 1.25 | -40—60 | 100 | |
| PE-AL-PE 2632 | 5.5-8 | 1.25 | -40—60 | 50 | |
| PE-AL-PEX 1216 | 5.5-8 | 1.25 | -40—95 | 100 | |
| PE-AL-PEX 1418 | 5.5-8 | 1.25 | -40—95 | 100 | |
| PE-AL-PEX 1620 | 5.5-8 | 1.25 | -40—95 | 100 | |
| PE-AL-PEX 2026/25 | 5.5-8 | 1.25 | -40—95 | 100 | |
| PE-AL-PEX 2632 | 5.5-8 | 1.25 | -40—95 | 50 | |
| PEX-AL-PEX 1216 | 5.5-8 | 1.25 | -40—95 | 100 | |
| PEX-AL-PEX 1418 | 5.5-8 | 1.25 | -40—95 | 100 | |
| PEX-AL-PEX 1620 | 5.5-8 | 1.25 | -40—95 | 100 | |
| PEX-AL-PEX 2026/25 | 5.5-8 | 1.25 | -40—95 | 100 | |
| PEX-AL-PEX 2632 | 5.5-8 | 1.25 | -40—95 | 50 |
