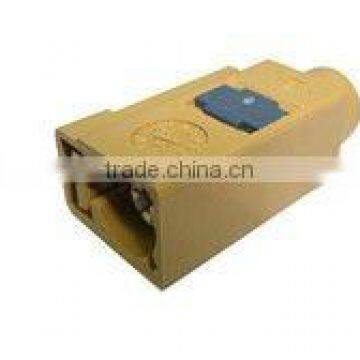

SMB female connector for cable RG174, FAKRA

  Description

TYPE SMB products is one kind of low power miniature RF coaxial connectors with snap-on coupling mechanism. Characteristic impedance has two types:50ohm and 75ohm. The characteristic of connectors is in small volume,light weight, excellent electrical performance, easy to use. They are widely used in connection with RF coaxial cable in RF circuit of radio communication, meter, radio station, TV station, the base station of the microwave system.

 Specification

Temperature Range        -55~+155°C (PE Cable -40~+85°C)

Impedance                50Ω, 75Ω

Vibration                98m/S² (10~2000Hz), 10g

Frequency Range          DC-4GHz(50Ω), DC-2GHz(75Ω)

Insertion Loss           0.30dB/1.5GHz

Withstanding Voltage     1000V r.m.s   at sea level

Working Voltage          335Vr.m.s   at sea level

Insulation Resistance    more than or equal to 1000 MΩ

Durability               more than or equal to 500(cycles)

Engagement force         8~63N

Disengagement force      8~63N

Contact resistance:

        Center Contact        less than or equal to 6mΩ

        Outer Contact         less than or equal to 1mΩ

Voltage Standing Wave Ratio:

    Straight   flex cable     less than or equal to 1.35/3GHz

   Right angle   flex cable   less than or equal to 1.45/1GHz
