Fruits And Vegetables, Dehydrated Vegetables Dryer
- SHANGHAI
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | SHEN YU | Model Number | DW-2.0-12 | |
| Type | Other, Dehydrator, Dehumidifier | Power(W) | 17100 | |
| Dimension(L*W*H) | 12000mm*2000mm*2000mm | Certification | ISO9001:2000 | |
| Warranty | three years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

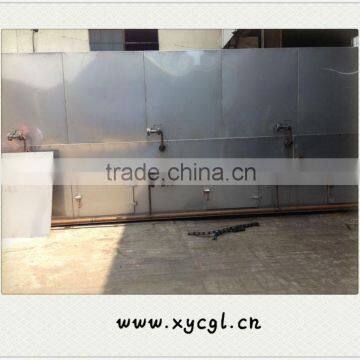

DW mesh-belt dryer is a continuous drying equipment which is used for drying materials with good permeability.Description:
DW Series mesh-belt dryer is a special equipment researched and developed on the basis of traditional net belt dryer. It has stronger pertinency, practicability and high efficiency of energy. It is widely used for materials with high water contents and low dryer temperature, such as dewatering vegetable, herbal medicine,etc.
Features:
1. The DW mesh-belt dryer is a extension and improvement of hot air circulation drying oven.
2. It possess fast drying speed, high evaporation intensity and good product quality.
3. The structure of equipment is compact, and the operation and maintenance is simple.
Application:
1. Food Industry:
De-watering vegetable, particle feed, monosodium glutamate, shredded coconut stuffing, garlic, cushaw,turnip, yam, bamboo shoot, etc.
2. Chemical Industry :
organic pigment, compund rubber,acryl fibre,medicine material,etc.
3. Others:
plastic product,small wooden product, aging for the electronic component device.
Technical Parameter:
| specification | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | |
| unit | 4 | 5 | 4 | 5 | 4 | 5 | |
| Dryinglength(m) | 8 | 10 | 8 | 10 | 8 | 10 | |
| Thickness of raw material(mm) | ≤60 | ||||||
| Working tem | 50~140 | ||||||
Steam pressure(MPa) | 0.2~0.8 | ||||||
| Consumption of steam(kg/h) | 120-300 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 | |
| Drying time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | |
| Drying capacity(kg/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 | |
| power(kw) | 11.4 | 13.6 | 11.4 | 13.6 | 14.7 | 15.8 | |
| Dimention | L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 |
| W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | |
| H(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | |
| weight(kg) | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | |
