spray paint machine/spraying machine for door/mdf/cabinet/furniture/wood

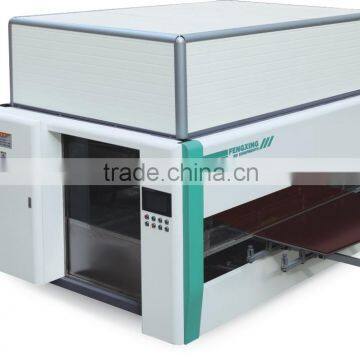

Product  Picture:

FXF250 series plate-type

different type automatic numerical control sprayer

Suitable for dry board furniturewood linescabinet doordecoration
boardfire-proofing boardplastic boardglassleather artificial
stonestainless steelsoundhardwareTV etc outer case's spray painting.

Features:
1. Automatic positioning devices are provided, to ease production;
2. Only two operators are sufficient to complete the whole procedure, with
capacity of 70-100 square meter per hour;
3. Spray gun movement route is under computer precise control, to ensure
uniform spray and paint saving;
4. Operators and spray guns are isolated, to effectively guarantee operators'
health;
5. The exclusive design ensures spray guns move in multiple angles, to ease the
spraying of different sides,
Cycles and deformed surfaces;
6. 2 spray guns are provided in general, while 3 spray guns can be installed at
the most.

7.Control the system

Through continuous research, our company has developed a new generation control system, in which an new autom atic programming system has been added on basis of the old system(namely point-to-point programming system). For new system, when you input length and width of products into the computer, the paint spraying machine will perform paint spraying according to preset technology. It is also possible to change the size of products without shutting down so as to achieve the effect of rapid production and paint saving.

8.Air Purifying System

The air will through percolation, from the engine room crest of the net sends into spray to paint the space after filtering, spraying surplus oil fog of the paint creation and varnishing the flavor was taken to spray to paint by the mighty current of air building collection the inside passes water fog decontamination empress that several waters fog of the stainless steel water plank empress spray a jet, from row breeze tube fly to eject.

9.Cleaning System

This system is made up of a tank two fans and a pump.

Attached drencher curtain with floor cleaning device, collected the redundant paint mist during the spray-painting process, through water mist purifying by many drencher heads ejected that behind the drencher curtain board, then drained by exhaust fan.

Packing:

How to distinguish between genuine and fake:

My machine have the Patent certificate of the People's Republic of China as below:

Company  Information:

Foshan Shunde Hou Ji CNC Equipment Co., Ltd., as a leader in the field of Chinese paint manufacturers, I plant has been built for more than ten years. Specializing in the production of automatic NC spray painting machine, UV curing machine, infrared furnace, glass, door frame, door.
