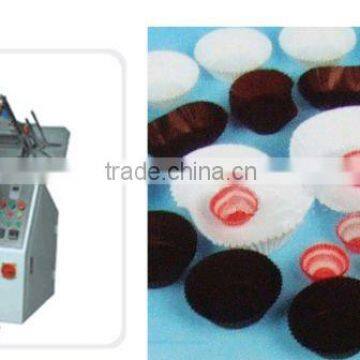

FQ800 CONTROLLED BY MICROCOMPUTER LONGITUDINAL-TRANSVERSAL DIE-CUTTING MACHINE JDGT CAKE TRAY FORMING MACHINE
- 2000 Unit / Units per Month
- Shanghai
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Shanghai, China | Brand Name | Towin | |
| Model Number | FQ800 |
Product Description
Specifications
FQ800 CONTROLLED BY MICROCOMPUTER LONGITUDINAL-TRANSVERSAL DIE-CUTTING MACHINE JDGT CAKE TRAY FORMING MACHINEFQ800 CONTROLLED BY MICROCOMPUTER LONGITUDINAL-TRANSVERSAL DIE-CUTTING MACHINE JDGT CAKE TRAY FORMING MACHINE
Features:
FQ-Model Controlled by Microcomputer Longitudinal-Transversal Die-cutting Machine is mainly used in in cutting coiled prints out of gravure press or flexble press into separated pieces longitudinally and transversely,as well as used in coiled paperdoard.
The machine is controlled by industrial microcomputer,equipped with draw-off mechanism,hand tenstion controller,auto-rectifier with photoelectric tracking,longitudinal edge trimmer, transversal cutter with photoelectric postioner and auto-counter.Its cutting feed is drived by the servo motor.It has the character of autolength recording and auto-counting, auto-trouble protecting ect, high in anti-jamming,stable to work, fast to cut, high in precision .So it is a kind of ideal cutting equipment for printing industry.
The machine adopts mechanical.electric,pneumatic and hydraulic high and new techniques.
Technical specifications
(Model) | FQ600 | FQ800 |
Paper Width (mm) | 305-600 | 400-800 |
Paper Max.Diameter (mm) | φ700 | φ900 |
Paper Pipe Diameter(mm) | φ75 | φ75 |
Max.Cutting-length(mm) | 600 | 800 |
Cutting-thickness(mm) | 0.1-1 | 0.1-1 |
Max.Feeding Speed(m/min) | 40 | 30 |
Max Cutting speed(stroke/min) | 70 | 70 |
Longitudinal Cutting-precision(mm) | ≤0.25 | ≤0.25 |
Transversal Cutting-precision(mm) | ≤0.20 | ≤0.20 |
Total Power(kw) | 4.3(8unit) | 6.45(9unit) |
Overall Dimension(L*W*H)(mm) | 5100*1480*1300 | 6100*1640*1350 |
Weight(kg) | 2500 | 3200 |
