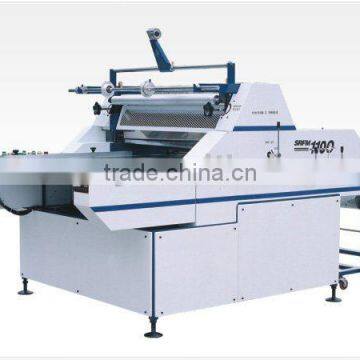

Manual Water-base Laminator
You May Like
Product Details
| Condition | New | Type | Other, laminator | |
| Automatic Grade | Other, Manual | Place of Origin | Zhejiang, China | |
| Brand Name | Towin | Model Number | SRFM-900/1100 |
Product Description
Specifications
Manual Water-base Laminator1.For water-based film laminating
2.IR drying device
3.Various application
Configuration:
1. It adopts conservational water-base glue and BOPP film or PET film to laminate paper products.
2. Manual paper feeding
3. SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine’s speed easily and guarantee the machine’s running stable.
4. Paper regulating plate can move left and right, and regulates manual paper feeding.
5. Glue supplying system supplies and recycles water-base glue automatically.
6. Dip coating saves glue and homogenizes coating much better.
7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
8. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
9. Double pressuring roller guarantees better laminating quality.
10. Automatic paper winder rolls up laminated paper. Winding speed is adjustable upon applications.
11. Phillip IR drying lamp is equipped for smooth working in humid and cold climate.
12. No paper protector stops the machine’s running when no paper occurs in paper conveying.
13. The winded paper is supported by a trolley, and then put on cutting machine for quick automatic cut, or cut by manual work.
Model | SRFM-900 | SRFM-1100 |
Max Paper Width | 850mm | 1050mm |
Paper Thickness | 80-400g/m2 | 80-400g/m2 |
Max Laminating Speed | 40m/min | 40m/min |
Total Power | 3.3kw | 3.6kw |
Total Weight | 1000kg | 1100kg |
Overall Dimensions | 2600*1700*1800mm | 2600*1900*1800mm |
