Product Details
| Place of Origin | Guangdong, China | Brand Name | YNX | |
| Model Number | YNX-P006 | Car Make | all of the Car | |
| Frequence Range | 1575.42mhz | Gain(dB) | 28dB±3dB | |
| Cable Length | 3000mm |
One For Iphone 4 gps antenna with one PE bag packaging
Product Description
GPS Signal Antenna Repeater Amplifier Transfer
Product Description
Specification:
Frequency: 1575.42MHz
Amplifier Gain: 25-28 dB
Noise: <=2dB
Attenuation: 7dB±20MHz
Transmitting Frequency: 1575.42MHz
Transmitting Gain: 11~14dB
Emission Inhibition: 10 dB±20MHz
Antenna/Repeater Power Supply: DC 3-5V
Working Temperature: -45+85
Storage Temperature: -50+90
Humidity: 100%
Out door antnna 5meters, indoor antenna 1.5meters.
Antenna: 47*39*14 (mm)
Repeater: 50*39*15 (mm)
Package
1 * Antenna
1 * Repeater
1 * AC adapter, Default US plug, if you need other version, please give me a message.
1 * Cigarette lighter adapter
Installation

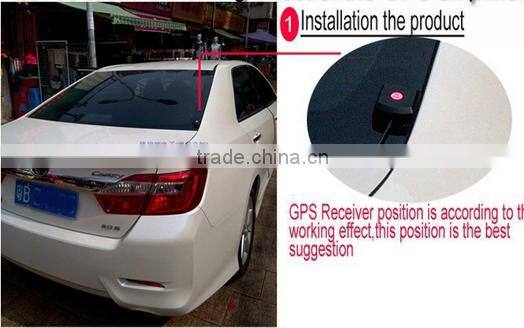

Place the outdoor unit on the top of car
Connect outdoor unit and indoor unit
Plug indoor antenna USB into USB power Adapter. After that, the GPS receiver will operate normally when its power is open.

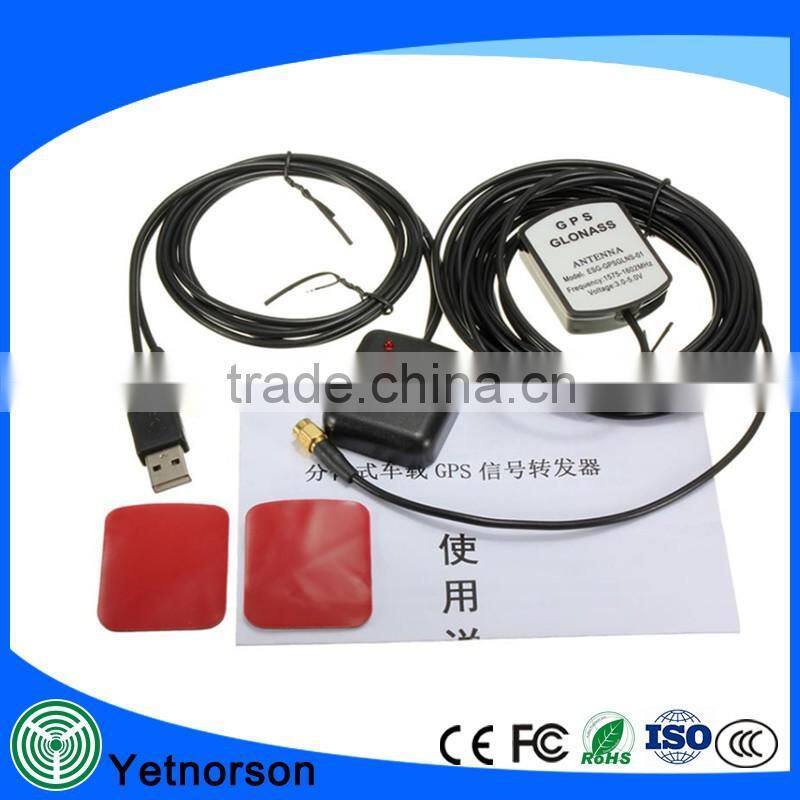

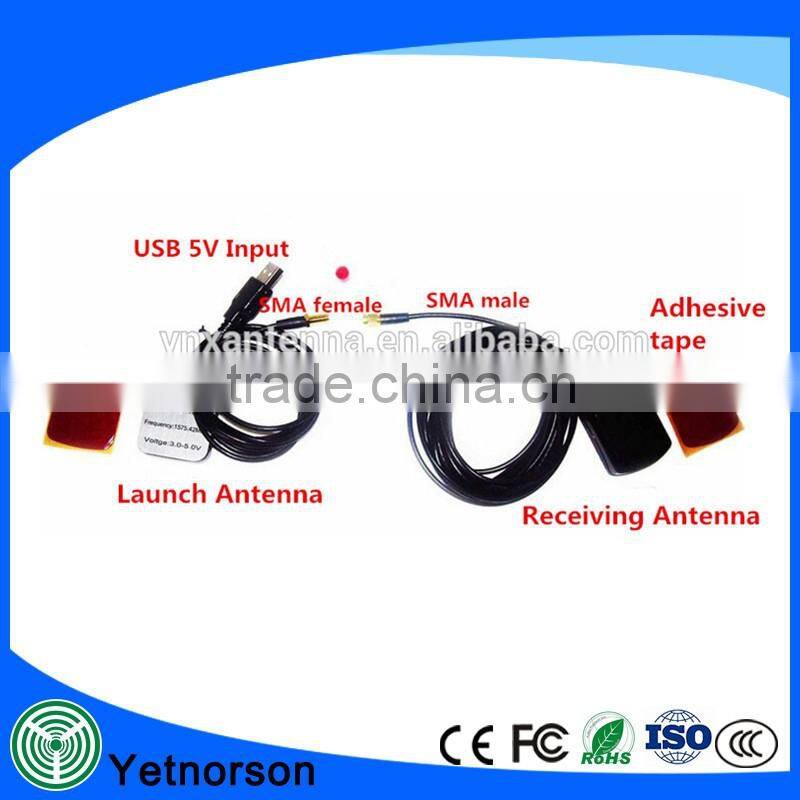

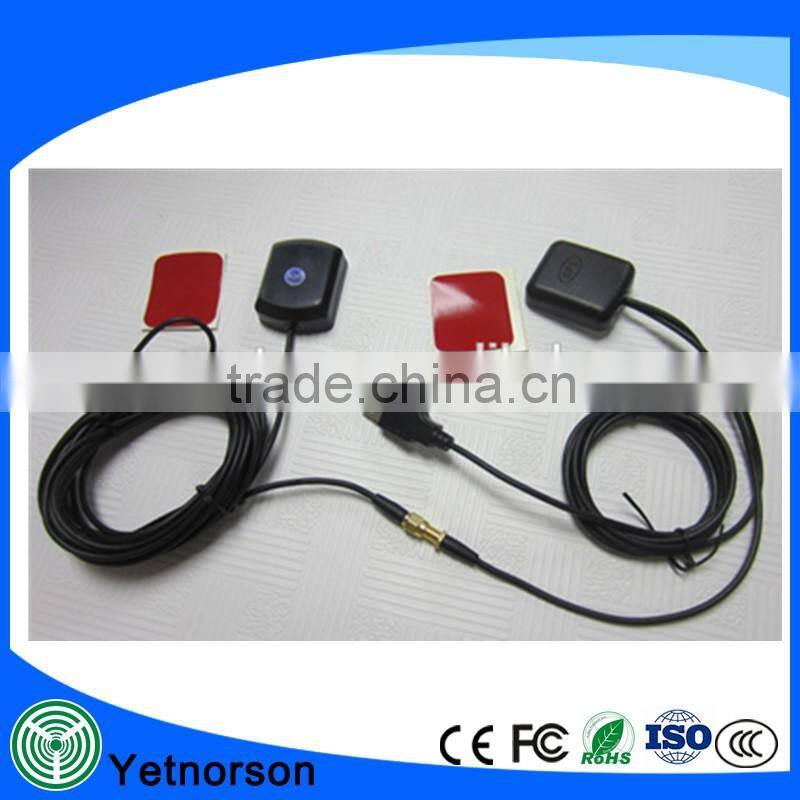

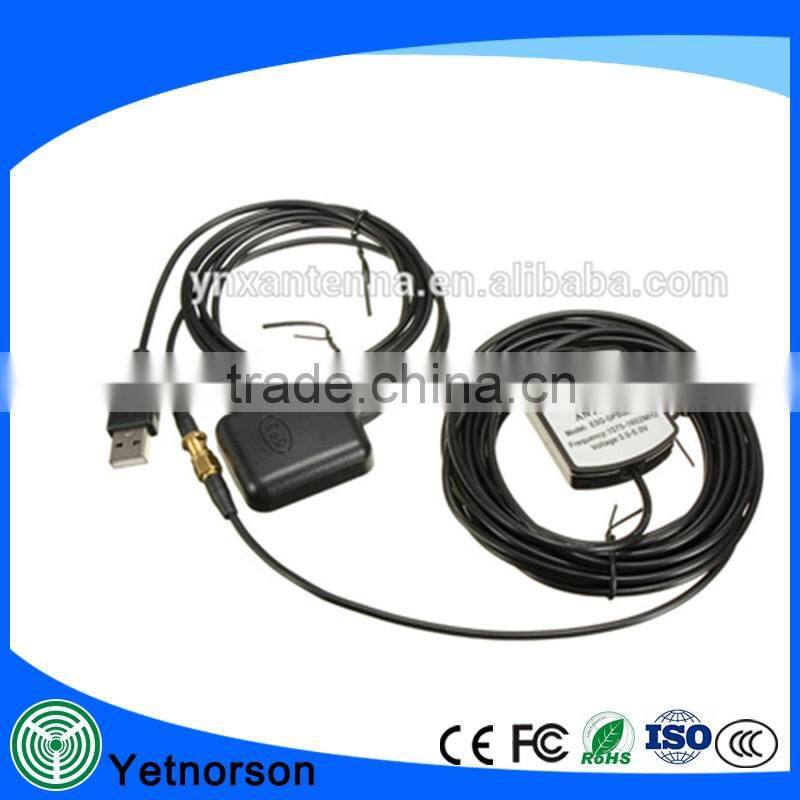

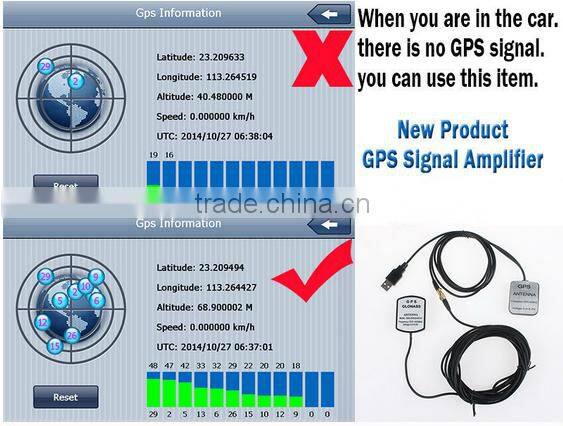

Product pictures
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
