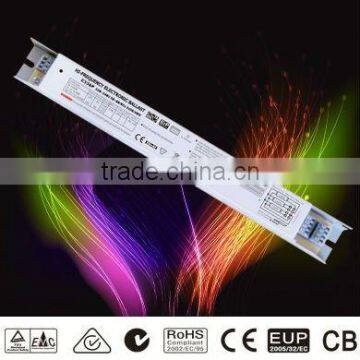

high quality CE Rohs 3x30w T8 ballast electronic

Specifications

high quality CE Rohs 3x30w T8 ballast electronic

Features of electronic ballast:
1.Apply plug- in wiring terminal, convenient installation.
2.Long life low current wave peak
3.High Power factor
4.Low Total Harmonic Distortion,low lamp current crest factor
5.EMC effection:Pass,
6.Comply to EN 61347-1,EN 61347-2-3,EN 55015,EN 61547,EN 61000-3-2,
7.Start mode :Preheat start or instant start selectable
8.Average usable life:>20000hrs,
9.AC voltage range(min-max)170-264V
DC voltage range(min-max)198-276V
10.Energy Efficiency:EEI=A2
11.Suitable for automatic and manual wiring.
12.suitable for emergency lighting.
13.Safe switch off of defective lamps
14.Automatic re-start after lamp change.
15.Protection against lamp fault condition.
(contain End of lamp life protection.)
16.End of lamp life,over-heat,over-load protection
17.Ingress protection:IP20

Features of electronic ballast:

1. Favorable low voltae starting performance,start the lamp under 130v low voltage,power supply.

2. Apply plug-in wiring terminals,conbenient installation apply electronic soft start technology; outstanding performance,long life low current wave peak ratio,

3. The electromagetic compatibility reaches the national standard,high power factor >0.98
