Home > Products > Mixer Truck > 6*4 Concrete Mixing Howo Chassis 5m3-20m3 Concrete Mixer Truck

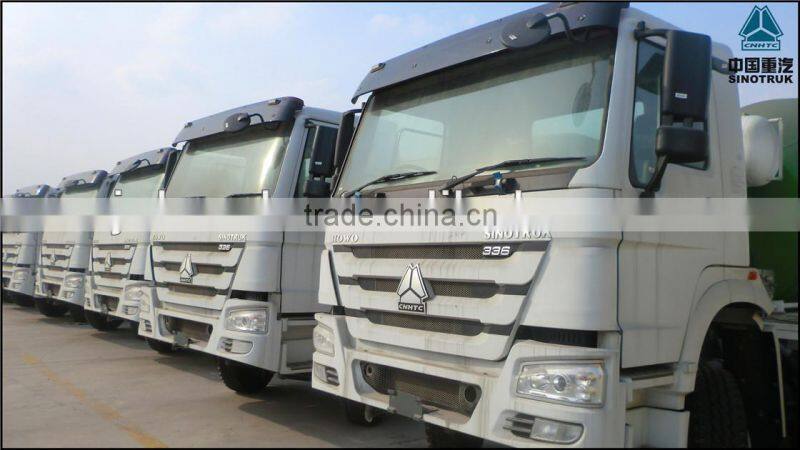

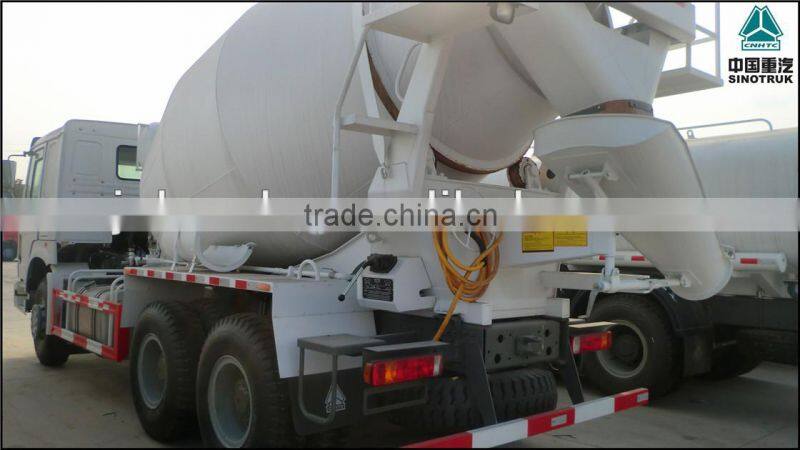

6*4 Concrete Mixing Howo Chassis 5m3-20m3 Concrete Mixer Truck
- any main port of china
- T/T
You May Like
-
Howo Concrete Mixer Truck/Sinotruk Howo Truck Parts/looking for Agent in Algeria
-
HOWO Mixer Truck With Low Price 12cmb
-
China 10m3 Cement Mixer Truck for Sale HOWO Chassis
-
HOWO Sinotruk 6*4 Small Concrete Mixer Truck
-
12wheelers Sinotruk Howo Truck Mounted Cement Mixer Made in Chinese Best Truck Manfacture
-
HOWO CEMENT MIXER TRUCK
Product Details
| Condition | New | Place of Origin | China | |
| Brand Name | sinotruk howo | Model Number | ZZ1257N3647B | |
| Weight | 11550 | Dimension(L*W*H) | 9020X2496X3835 | |
| Power(W) | 247 | Certification | ISO | |
| Warranty | 24 MON | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1. double helix drum2. special wear-resisting vanes
3. shot blasting treatment
4. Eton oil pump, IBonfiglioli speed reduc
Stable, Reliable, Environmental Friendly, Energy Efficient
+ High-intensity drum material, featuring better wear-resistance and long service life
+ Optimized mixing blades, low material residue
+ High-quality parts, reliable running
MIXING DRUM | Geometric volume | 17.5 m3 |
Maximum mixing Capacity | 10 m3 | |
Material of drum | High-strength& wear-resistant manganese plate | |
Angle of drum | 12° | |
Rotational speed | 0~14 r/min | |
Blades | double-screw blades | |
Device of inlet/outlet | Hooper(L*W) | 950×1000; material: High-strength& wear-resistant manganese plate |
Length of Main trough | 1600; material: High-strength& wear-resistant manganese plate | |
Length of extend groove | 780; material: High-strength& wear-resistant manganese plate | |
System of Hydraulic | Oil pump &motor | America ETON |
Speed reducer box | Italy Bonfiglioli | |
Chassis | Style of Motor | WD615.95E |
Tyres | 12R22.5 | |
Style of chassis | ZZ1257N3847C | |
Max speed | 75 km/h | |
wheelbase | 3825/1350 | |
Size | L*W*H | 9020×2496×3835 Height of Feed hooper:3780 |
Quality parameters | unloaded WT | 13155kg |
Max. loaded | 11715 kg | |
Total quality | 25000 kg |
