4 Inch Diameter Rubber Hose
- TIANJIN
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | MINGHOSE | |
| Model Number | R1 R2 R3 R4 R5 R6 R12 R13 |
Product Description

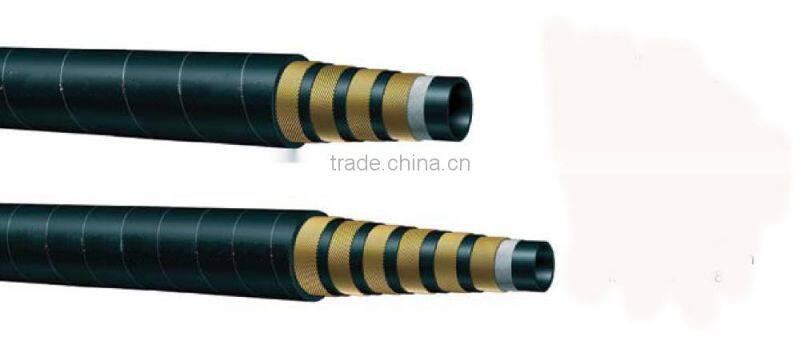

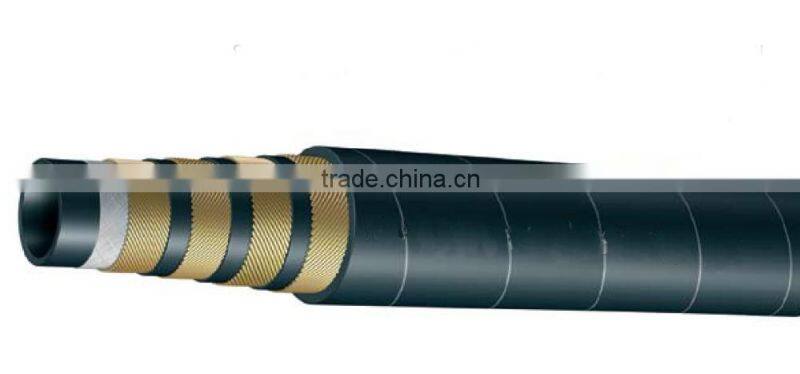

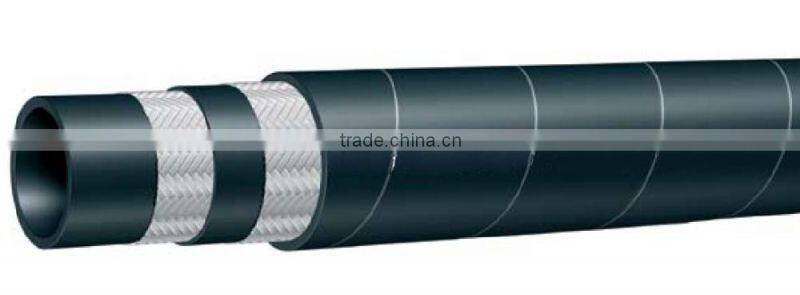

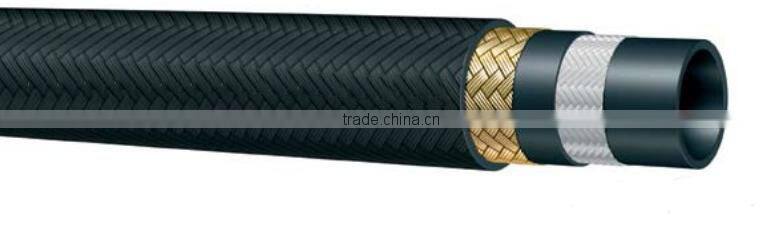

4 inch diameter rubber hose
SAE 100R4
Wire inserted hydraulic suction hose
Tube: Black, oil and heat resistant synthetic rubber.
Reinforcement: Spiral plied synthetic fabric with wire helix.
Cover: Black, oil, abrasion and weather resistant synthetic rubber (wrapped impression).
Temperature Range: -40 ℃ to +100℃
I.D. | O.D. | MAX WP | BEND RADIUS | WEIGHT | |||||
in. | mm. | in. | mm. | psi | Mpa | in. | mm. | lb./ft. | kg./m |
3/4 | 19.05 | 1.37 | 34.9 | 300 | 2 | 5 | 127 | 0.39 | 0.58 |
1 | 25.4 | 1.62 | 41.3 | 250 | 1.7 | 6 | 152 | 0.65 | 0.97 |
1 1/4 | 31.75 | 2 | 50.8 | 200 | 1.4 | 8 | 203 | 0.98 | 1.46 |
1 1/2 | 38.1 | 2.25 | 57.2 | 150 | 1 | 10 | 254 | 1.11 | 1.66 |
2 | 50.8 | 2.75 | 69.9 | 100 | 0.7 | 12 | 305 | 1.08 | 1.61 |
2 1/2 | 63.5 | 3.25 | 82.6 | 100 | 0.7 | 14 | 356 | 1.88 | 2.8 |
3 | 76.2 | 3.75 | 95.3 | 100 | 0.7 | 18 | 457 | 2.2 | 3.37 |
SAE 100R5
Single wire braid, textile covered hydraulic hose
Tube: Oil resistant synthetic rubber
Reinforcement: a single wire braid
Cover: one fiber braided cover
Temperature range: -40 ℃ to +100 ℃
Hose ID | Wire OD | Hose OD | Working Pressure | Burst Pressure | Minimum bend radius | Weight
| |||
Inch | mm | mm | mm | Mpa | Psi | Mpa | Psi | mm | Kg/m |
3/16 | 4.8 | 11 | 13.2 | 25 | 3630 | 100 | 14280 | 76 | 0.25 |
1/4 | 6.4 | 12 | 14.8 | 22.5 | 3270 | 90 | 12840 | 86 | 0.3 |
5/16 | 7.9 | 14.5 | 17.1 | 21.5 | 3120 | 85 | 12280 | 102 | 0.36 |
3/8 | 9.5 | 17 | 19.5 | 18 | 2610 | 72 | 10280 | 117 | 0.5 |
1/2 | 12.7 | 21 | 23.4 | 16 | 2320 | 64 | 9180 | 140 | 0.55 |
5/8 | 15.9 | 25 | 27.4 | 13 | 1890 | 52 | 7420 | 165 | 0.65 |
3/4 | 19.0 | 27.5 | 30 | 10.5 | 1530 | 42 | 6000 | 187 | 0.7 |
7/8 | 22.2 | 29 | 31.4 | 8.8 | 1280 | 35 | 5020 | 200 | 0.85 |
1 | 25.4 | 34 | 36 | 8.8 | 1280 | 35 | 5020 | 200 | 0.9 |
1-1/8 | 28.6 | 35.5 | 38.1 | 7 | 1015 | 28 | 2030 | 229 | 1.05 |
1-3/8 | 35 | 42 | 44.4 | 6 | 870 | 24 | 1740 | 267 | 1.25 |
1-13/16 | 46 | 54 | 56.4 | 5 | 725 | 20 | 1450 | 337 | 1.3 |
2-3/8 | 60 | 70.5 | 73 | 4 | 580 | 16 | 1160 | 610 | 2.0 |
3 | 76 | 88 | 90.5 | 2.5 | 80 | 10 | 1160 | 888 | 3.0 |
SAE 100R12
Heavy duty, high impulse, four spiral steel wire reinforced, rubber covered hydraulic hose
Tube: oil resistant synthetic rubber;
Reinforcement: four spiral plies of steel wire wrapped in alternating directions;
Cover: oil and weather resistant synthetic rubber.
Temperature:-40℃.to +121℃
Hose ID | Wire OD | Hose OD | Working Pressure | Burst Pressure | Minimum bend radius | Weight | |||
inch | mm | mm | mm | Mpa | Psi | Mpa | Psi | mm | Kg/m |
3/8 | 9.5 | 17.2 | 20.3 | 27.5 | 4000 | 110 | 16000 | 125 | 0.65 |
1/2 | 12.7 | 20.7 | 23.8 | 27.5 | 4000 | 110 | 16000 | 180 | .085 |
5/8 | 15.9 | 24.6 | 27.4 | 27.5 | 4000 | 110 | 16000 | 200 | 1.3 |
3/4 | 19.0 | 27.7 | 30.7 | 27.5 | 4000 | 110 | 16000 | 240 | 1.5 |
1 | 25.4 | 34.9 | 38 | 27.5 | 4000 | 110 | 16000 | 300 | 2.0 |
1-1/4 | 31.8 | 43.9 | 47 | 20.7 | 3000 | 82.8 | 12000 | 420 | 2.9 |
1-1/2 | 38.1 | 50.4 | 53.5 | 17.2 | 2500 | 68.8 | 10000 | 500 | 3.3 |
2 | 50.8 | 63.7 | 66.7 | 17.2 | 2500 | 68.8 | 10000 | 630 | 4.9 |
SAE 100R13
Heavy duty, high impulse, multiple spiral steel wire reinforced, rubber covered hydraulic hose
Tube: oil resistant synthetic rubber;
Reinforcement: four or six spiral plies of steel wire wrapped in alternating directions;
Cover: oil and weather resistant synthetic rubber.
Temperature:-40℃.to +121℃
Hose ID | Wire OD | Hose OD | Working Pressure | Burst Pressure | Minimum bend radius | Weight | |||
inch | mm | mm | mm | Mpa | Psi | Mpa | Psi | mm | Kg/m |
3/4 | 19.0 | 28.4 | 32.1 | 34.5 | 5000 | 138 | 20000 | 240 | 1.7 |
1 | 25.4 | 34.8 | 38.7 | 34.5 | 5000 | 138 | 20000 | 300 | 2.25 |
1-1/4 | 31.8 | 47.5 | 50.2 | 34.5 | 5000 | 138 | 20000 | 420 | 3.9 |
1-1/2 | 38.1 | 52.5 | 57.7 | 34.5 | 5000 | 138 | 20000 | 500 | 5.1 |
2 | 50.8 | 68 | 71.5 | 34.5 | 5000 | 138 | 20000 | 630 | 7.9 |
