CE&ISO PVC Profile Production Line

Specifications

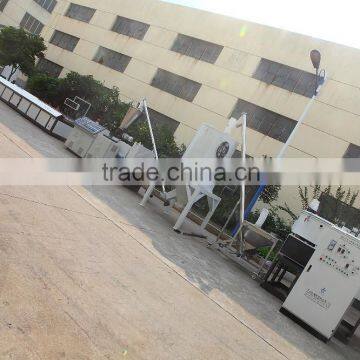

PVC Profile Production Line

    YF series PVC profile production line is mainly used in PVC door, window profile, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines(four holes, six holes, seven holes, nine holes etc). For different sectional surface and molds, different specifications of twin parallel(conical) screws extruder can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.

    Capacity of extruder can be optionally chosen from 60-700kg/g. The haul-off unit has applied unique lift technique of our company. Its work is stable, its pulling force is large. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding. Movement speed and drawing speed of cutting machine keep synchronous. All movement are controlled by improted PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length. Power and dust suction device can be provided. With different molds, the calibration table can choose such specifications as 4, 6, 7, 11 meter, etc.With twin parrallel screw exrtuder, it is particular suitable for high speed of profile.

Main Technical Parameter:

Component of extrusion line:

1.pvc profiles production line adopts the specially-designed conical twin screw extruder, imported transducer for speed adjusting, and imported RKC temperature control instrument, featuring wide adjusting scope, high temperature control precision, and convenient and reliable operation.

2.The auxiliary machine comprises vacuum shaping platform, tractor, cutter, and loading rack.

3.The equipment of large forced refrigeration device ensures the shaping effect of door plates.

4.The cutter is reliable and correct in operation and high in cutting precision.

5.The loading rack, outfitted with movable loading trolley and special rubber protection layer, doesn't damage any materials and is convenient for use.

6.The auxiliary machine unit adopts PLC control or domestic famous control system, reliable and stable.

End product :

 If  you want more information, please contact us, thanks!

Our company is near Shanghai ,about 130km. Welcome to our factory anytime!
