R1 Hydraulic Hose
- TIANJIN
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | MINGHOSE | |
| Model Number | R1 R2 R3 R4 R5 R6 R12 R13 |
Product Description

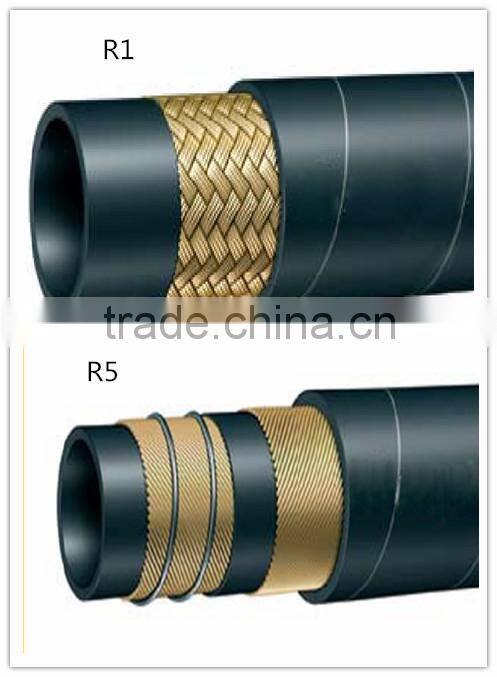

R1 Hydraulic Hose
SAE 100R1AT /DIN EN 853 1SN
Steel wire reinforced, rubber covered hydraulic hose type AT
Tube: Oil resistant synthetic rubber
Reinforcement:one high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature Range: -40℃ to +100℃
DN |
Hydraulic Hose Assembly
OD | Working Pressure | Burst Pressure | Minimum end Radius | Weight | ||||
inch | mm | mm | Mpa | psi | Mpa | psi | mm | kg/m | |
6 | 1/4 | 6.4 | 15.9 | 22.5 | 3270 | 90.0 | 12840 | 100 | 0.31 |
8 | 5/16 | 7.9 | 17.5 | 21.5 | 3120 | 85.0 | 12280 | 114 | 0.38 |
10 | 3/8 | 9.5 | 19.8 | 18.0 | 2615 | 72.0 | 10280 | 127 | 0.45 |
13 | 1/2 | 12.7 | 23.0 | 16.0 | 2320 | 64.0 | 9180 | 178 | 0.55 |
16 | 5/8 | 15.9 | 26.2 | 13.0 | 1890 | 52.0 | 7420 | 200 | 0.63 |
19 | 3/4 | 19.0 | 30.2 | 10.5 | 1530 | 42.0 | 6000 | 240 | 0.77 |
25 | 1 | 25.4 | 38.1 | 8.8 | 1280 | 35.0 | 5020 | 300 | 1.06 |
32 | 1 1/4 | 31.8 | 46.0 | 6.3 | 920 | 25.0 | 3600 | 419 | 1.45 |
38 | 1 1/2 | 38.1 | 52.4 | 5.0 | 730 | 20.0 | 2860 | 500 | 1.80 |
51 | 2 | 50.8 | 66.7 | 4.0 | 580 | 16.0 | 2280 | 630 | 2.30 |
1. We consistent good quality with reasonable price.
2. Stable production capacity(Our output each month can be 800,000 meters for hoses.)
3. Delivery in time.
4. Good quality control.
