Home > Products > 8 channels H.264 DVR > Newest 8ch 1080N real-time playback DVR (IPC,Analog,AHD,TVI,CVI ) Five functions in one DVR for home security

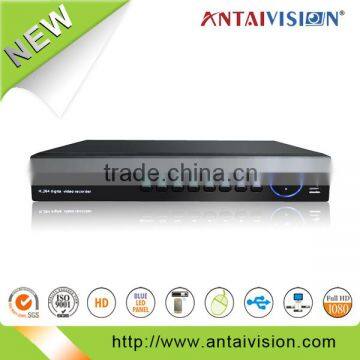

Newest 8ch 1080N real-time playback DVR (IPC,Analog,AHD,TVI,CVI ) Five functions in one DVR for home security
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
New Arrival 8CH 1080N high quality cctv h 264 dvr ahd dvr hot sale in Inida
-
HY series Antaivision 1080N 16ch DVR with real time
-
Full HD 8ch cctv realtime playback DVR with AHD,Network,Analog all in one DVR with Hisilicon Chip Support
-
Newest home security 8ch 1080N DVR (IPC,Analog,AHD,TVI,CVI ) Five functions in one DVR for sale
-
Newest 1080n views 8ch mini h 264 DVR ac adapter 12v CCTV DVR
-
3 In 1 Mul-timodeinput DVR
Product Details
| Place of Origin | Guangdong, China | Brand Name | Antaivision | |
| Model Number | HY-NH-3608 |
Product Description
Newest 8ch 1080N real-time playback DVR (IPC,Analog,AHD,TVI,CVI ) Five functions in one DVR for home security
Specfications
| System | Main processor | Industrial grade embedded micro controller chip Taiwan Zhiyuan chipset GM8286 | |
| Operating system | Embedded LINUX operating system | ||
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. | ||
| Display | Operation interface | 16 bit real color GUI interface support mouse operation | |
| Multilingual Language | YES, 25 kinds of language | ||
| Display screen | 1/4/8/9 screen | ||
| Video | Video Standard | PAL / NTSC(1080N) | |
| Image encode | H.264(Main Profile) | ||
| Capture function | YES | ||
| Monitor quality | Monitor:D1; VGA & HDMI: (1920*1080,1280*1024,1280*720,1024*768) | ||
| Playback quality | 1080N/720P | ||
| Encode capability | 8ch 1080N@20fps | 8ch 1080N@20fps | |
| Decode capability | 4ch 1080N@12fps | 4ch 1080N@12fps | |
| Multi-Input (ONVIF 2.8) | Analogue:8ch 1080N | Analogue:8ch 1080N | |
| Analogue+ Network HD:1080N(AHD-NH)*4+720P(network)*4 | Analogue+ Network HD:1080N(AHD-NH)*4+720P(network)*4 | ||
| Network:8*720P(network) | Network:8*720P(network) | ||
| Audio | Audio compression | G.711A | |
| Record and playback | Record mode | Manual, alarm, motion detection, timing | |
| Local playback | 1--4ch (local mode) | ||
| Video search | Time, date, event, channel search | ||
| Storage and back up | Space Usage | Video 720P:10G~42G/day*channel,1080P:20G~80G/day*channel,Audio 691.2M/day *channel | |
| Video storage | Local Hard Disk, Network | ||
| Back up mode | Network backup, USB portable HDD | ||
| Interface | Video input | 8ch BNC(1.0Vp-p,75Ω) | |
| Video output | 1ch CVBS, 1ch VGA, 1ch HDMI | 1ch CVBS, 1ch VGA, 1ch HDMI | |
| Audio input | 4ch RCA (200-2800mV,30KΩ) | 1ch RCA (200-2800mV,30KΩ) | |
| Audio output | 1ch RCA (200-3000mV,5KΩ)/1ch HDMI audio output | ||
| Alarm input | NO | ||
| Alarm output | NO | ||
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | ||
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | NO | |
| USB port | Support USB 2.0 port | ||
| HDD port | Accommodates 1 SATA HDDs (1 HDD capacity up to 4TB) | ||
| Wireless Port | 3G & WIFI ( Extented by USB) | 3G & WIFI ( Extented by USB) | |
| User | User level | Admin / User | |
| User right | Users can set different permissions (How to use please refer to the manual book) | ||
| Password protection | YES | ||
| Remote | Remote Independent Operation | YES | |
| Download records | YES | ||
| Remote Event Trigger Recording | YES | ||
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | ||
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | ||
| Live Audio | YES | ||
| On-line user | Max. 10 | ||
| Mobile Surveillance | YES (supporting iPad, iPhone & Android;iPad, iPhone, Andriod remote playback) | ||
| Network Protocol | DHCP, PPPOE, FTP, DDNS, NTP, UPNP, EMAIL, IP authority, 3G, Wireless settings | ||
| Alarm | Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) | |
| Event Notification | FTP / E-Mail | ||
| Pre-alarm Recording | YES | ||
| Video loss | Video loss notification | ||
| Buzzer | YES | NO | |
| Others | IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) | |
| Remote control | YES | ||
| Cooling fan | NO | ||
| Tour | YES | ||
| Power Source (±10%) | DC 12V / 2A | ||
| Power Consumption (±10%) | <10W(without HDD) | ||
| Operating Temperature | 0℃ ~ +55℃ | ||
| Dimensions (mm) ** | 250mm(L)* 210mm(W)* 45mm(H) | ||
| System Recovery | System auto recovery after power failure | ||
| Package | Net Weight | 0.93kg±0.1kg | |
| Carton Box Size | 5units packing:358mm(L)* 83mm(W)* 270mm(H); 10units packing:325mm(L)* 80mm(W)*255mm(H) ; | ||
| Package Size | 5units packing:440mm(L)* 375mm(W)*285mm(H) ; 10units packing:415mm(L)* 335mm(W)*525mm(H) ; | ||
| Gross Weight | 5units packing:7.5kg±0.5kg; 10units packing:14.0kg±0.5kg; | ||
Pictures
Payment and Shipment
1. Our usually payment terms is EX-Works Price, Port of loading is Shenzhen.
2. We have cooperation with mainstream Express company(Fedex/DHL/UPS/TNT/EMS). For sample order we suggest you use Express, for mass production we suggest you transport the goods BY AIR or BY SEA.
Our advantages
1.. Excellent hardware built:
a)Our raw material is from the first grade factories in their field and antaivison is already establish a good partner relationships with them so that our raw material defective rate is lower than 0.1%.
b)We have our owned qualified SMT plants, assembly plants, 100% QC procedure, all products finished in one stop, so we can control our quality well.
c)We have more than 20 family case(small case and big case) and more than 90 camera housing for your choice, so that our customer have different choices as they like
d)We have more than 150,000 pcs of mainboards in our production line and warehouse,so that we can deliver effectively and timely.
2.Perfect Software Build:
a)We offer humanized software according to our customer’s requirements. our new products are feature with below functions such as:
Our antaivision new function:
1. Image flip
2. Snapshot direct into USB function
3. Hard disk storage saving function
4. Holiday predication functions.
5 all channel playback.
APP:
1,Alarm push-video function.
2. 4Ch playback
3.Cloud storage function
OEM Service
We have several years' experience of doing OEM order, your OEM order is highly welcome. Your order will be the most important in our factory, we will do our best to make you satisfied!
After sales service:
We offer 2 years warranty and whole life support:
1),software:we establish a neutral software website so that customer can go there to download all of the upgrade software by themselves.
2),hardware:we offer complete reparation book and offer free electronic components for your reparation.
Cetification
Our Factory
Q1: What is your MOQ for this MDVR?
A1: We accept small and sample orders for our existing models, for OEM orders the MOQ is 500 units.
Q2: How long is the warranty period?
A2: 24 months warranty is promised to all customers.
Q3: What is the delivery time?
A3: For sample order it takes 2-5 working days, for mass production it takes 5-15 working days.
Q4: What should I do if I have some problems to handle the DVR?
A4: You can contact our sales, send email to us and we will provide solutions to you.
For more questions, please contact me.
