GL LRS Approved Tinned Copper Wire Conductor 3 Cores 3c Marine Ocean Cable Line

Specifications

GL LRS approved tinned copper wire conductor 3 cores 3c marine ocean cable line

Rating voltage: 0.6/1kv

International Standards applied

IEC60228  IEC60092-350  IEC60092-351  IEC60092-353  IEC60092-359

IEC60332-1  IEC60332-3-22  IEC60331  IEC60754-2   IEC60134-2

JIS C 3410 standards

JIS C 3002      JIS C 3005

JIS K 1433       JIS K 8422

Marine cables construction:

1. Conductor: tinned copper wire,class2 or 5

2. Fire resistant Mica tape on request

3. Insulation: XLPE/EPR

4. Filler ( if necessary)

5. Tape

6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)

7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided

8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)

Marine cables Specifications

Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37

Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2

Marine cables Flammability features

SA:bunched cable flame retardant

SC:bunched cable flame retardant,halogen free & low smoke

NA:bunched cable flame retardant,fire resistant

NC:bunched cable flame retardant,fire resistant,halogen free & low smoke

Marine cables Application

This marine cables areintended for power,lighting of shipboard or offshore building.

It is also available for power plant,chemical works and mines,etc.

Marine cables Classification Society Certificates

CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.

The radius of bend for the installation of marine cables

  1.What is the marine cable price?

   We need to know cable type or cable structure, size and quantity.

  2. What is the MOQ?

   The MOQ of our marine cable is 100M each size.

  3. What is the production time?

    Normally in 20 days.

 4.What is your trade terms?

    EXW FOB CFR CIF DAP

 5.What is your acceptable payment terms?

    Usually by TT. Other payment way also acceptable.

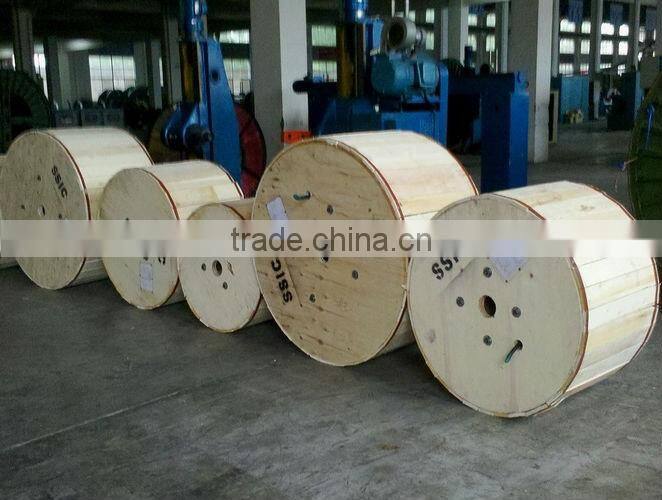

  We usually pack marine cable by plywood cable drum/ reel. or in rolls and put into plywood cartons.

GL LRS approved tinned copper wire conductor 3 cores 3c marine ocean cable line

Rating voltage: 600V/1000V

International Standards applied

IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359

IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2

Construction:

1. Conductor: tinned copper wire,class2 or 5

2. Fire resistant Mica tape on request

3. Insulation: XLPE/EPR

4. Filler ( if necessary)

5. Tape

6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)

7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided

8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)

cable Specifications

Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37

Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2

Flammability features

SA:bunched cable flame retardant

SC:bunched cable flame retardant,halogen free & low smoke

NA:bunched cable flame retardant,fire resistant

NC:bunched cable flame retardant,fire resistant,halogen free & low smoke

Application

The cable is intended for power,lighting of shipboard or offshore building.It is also available for power plant,chemical works and mines,etc.

Classification Society Certificates

CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.

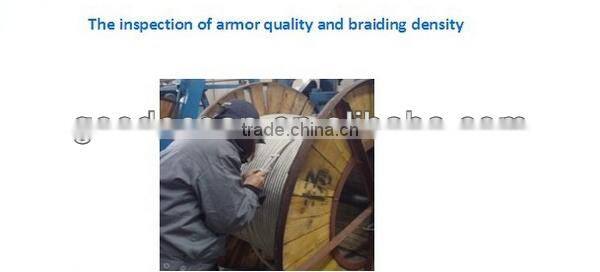

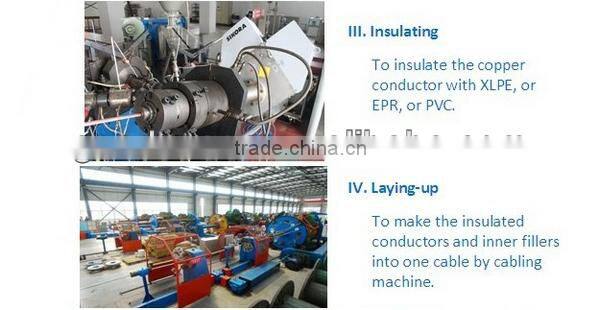

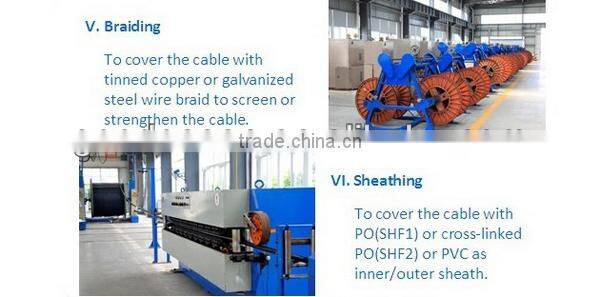

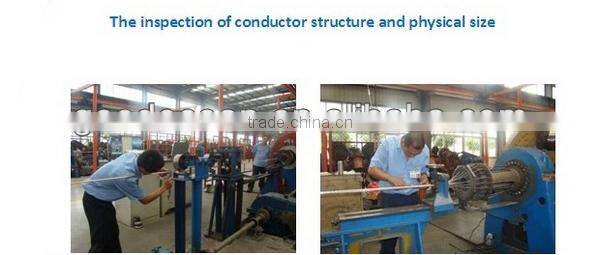

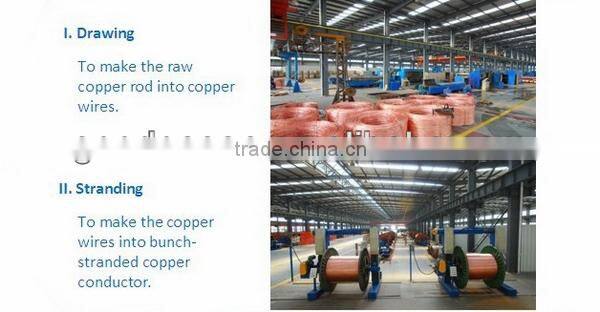

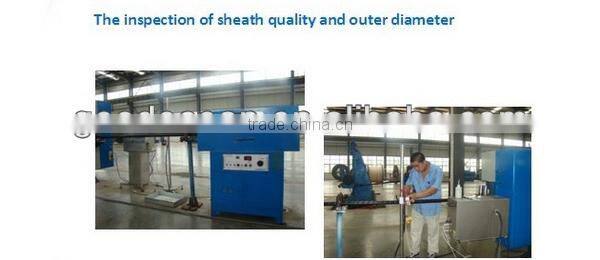

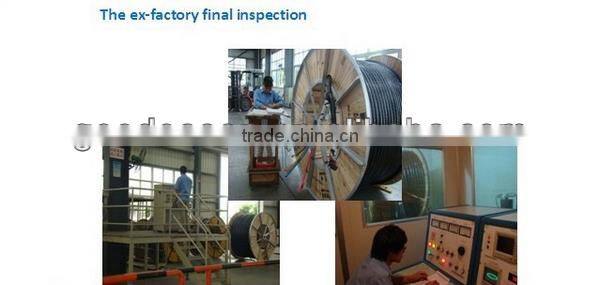

Production process & inspection

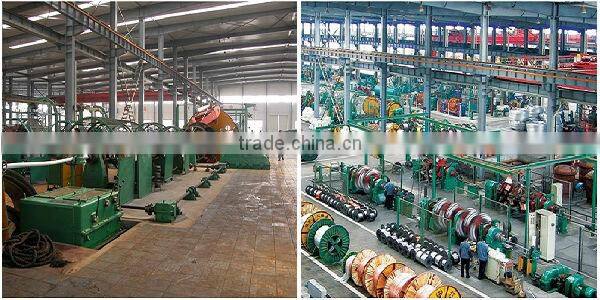

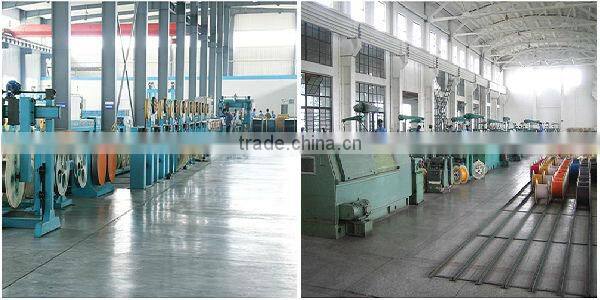

Workshop

Ningbo Good Ocean is focusing on supply marine offshore cable to overseas clients.Our manufacturer is the main marine cable factory in China.With more than 20 years production experience.

ABS, BV, KR, NK, GL, LR, RINA, CCS, DNV,TUV, EC certificates are available on customers requirements. Our factory has established scientific and reasonable quality control system according to ISO 9001:2008. All of our products are produced according to IEC standard and widely used in shipbuilding, ocean engineering, petroleum platform, harbor machinery naval construction.

Our quality control guideline is maintaining efficient management, providing high quality products, continuing quality improvement and accommodating market demand. Our objective is keeping pace with the times, innovation, achieving better profits through better management and developing market with good quality products. Our enterprise spirit is honesty, unity, meticulousness and high efficiency.

Our existing clients come from Australia, New Zealand, Thailand, Burma, Brazil, the Philippines, Malaysia, India, South Korea, etc. Now we are pleased to work together with our new and long-term customers to achieve cable wire solution in the future.

Welcome to contact me for more information.
