Hot sale good quality lightning protection rod
- 10000 Piece / Pieces per Month
- Ningbo or shanghai
- T/T Credit Card
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | DGMDQ ( lightning protection rod ) | |
Model Number | TQYF-3.3 (lightning protection rod ) |
Product Description
Hot sale good quality lightning protection rod

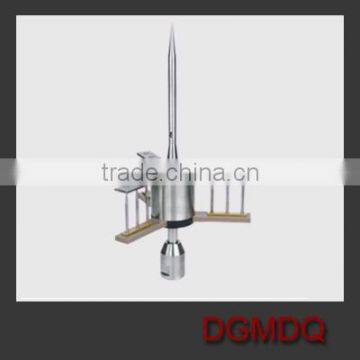

1.Pictures Hot sale good quality lightning protection rod
Go
2. Description Hot sale good quality lightning protection rod
Product Features:
DGM series lightning rod are made from stainless-steel material,it has different protection area and various features.
- Not electron style,life long.
- Keep the good performance after lightning stroked.
- Various protection radius.
- Tracing the lightning in advance and conduction it to the earth completely.
- It would be activated only have lightning and thunder.
- Artistic outline.
- Safety and reliable.
- Without maintenance.
Advance pre-discharge lightning rod.This type serious number is as below:
TQYF-3.1 Three sheets (3 short rod)
TQYF-3.3 Three sheets(9 short rod)
TQYF-4.3 Four sheets (12 short rod)
TQYF-5.3 Five sheets(20 short rod)
TQYF-6.3 Six sheets (30 short rod)
Technology Paramenter is as below: Hot sale good quality lightning protection rod
Type Number | TQYF-3.1 | TQYF-3.3 | TQYF-4.3 | TQYF-5.3 | TQYF-6.3 |
Time ahead to discharge T | 14 μs | 25μs | 34μs | 43μs | 52μs |
Max. discharge current | 200KA | ||||
Capability against wind speed | ≥40m/s | ||||
Steepness of lightning current | ≤10KA | ||||
Grounding Resistance | ≤10Ω | ||||
Production Standard | GB50169-2006 |
The product model and protective radius: Hot sale good quality lightning protection rod
Type Number | Rod Height=Effective height of lightning rod(m) | |||||||||||||||
Rod Height | 5m | 6m | 7m | 8m | 10m | |||||||||||
Protect
Radius | TQYF-3.3 | 40 | 55 | 62 | 40 | 56 | 65 | 41 | 57 | 66 | 41 | 58 | 70 | 42 | 63 | 81 |
TQYF-4.3 | 49 | 66 | 74 | 49 | 67 | 76 | 50 | 67 | 77 | 50 | 68 | 80 | 51 | 72 | 90 | |
TQYF-5.3 | 59 | 76 | 85 | 59 | 77 | 86 | 59 | 77 | 88 | 59 | 78 | 90 | 60 | 82 | 99 | |
TQYF-6.3 | 68 | 86 | 95 | 68 | 87 | 97 | 68 | 87 | 98 | 68 | 88 | 100 | 69 | 91 | 106 |
- Company with full set of advanced production and testing equipment,product quality in the industry to stay ahead,have passed ISO9001-2000,CE,ROHS certification and so on.
- For above product,we should make it as clients' parameter.
