Disconnector/Fuse Switch 110KV / Isolating Switch
- Ningbo or Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DGMDQ | |
| Model Number | GW4-110 | Max. Current | 2000A | |
| Max. Voltage | 110KV |
Product Description
Specifications
1, Suit for HV distribution equipment installed in outdoor line2,Disconnector/Fuse Switch 110KV / Isolating Switch
- Rated voltage:35KV 110KV
- Rated current:630A 1250A 2000A
General description :

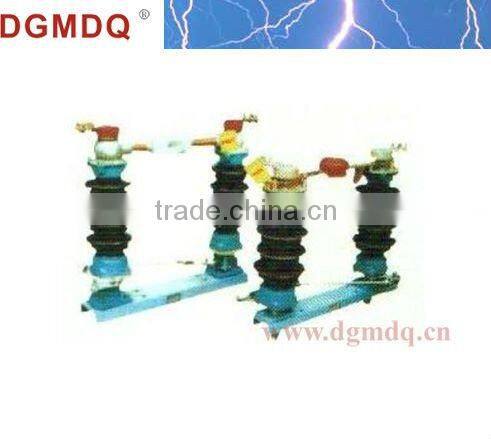

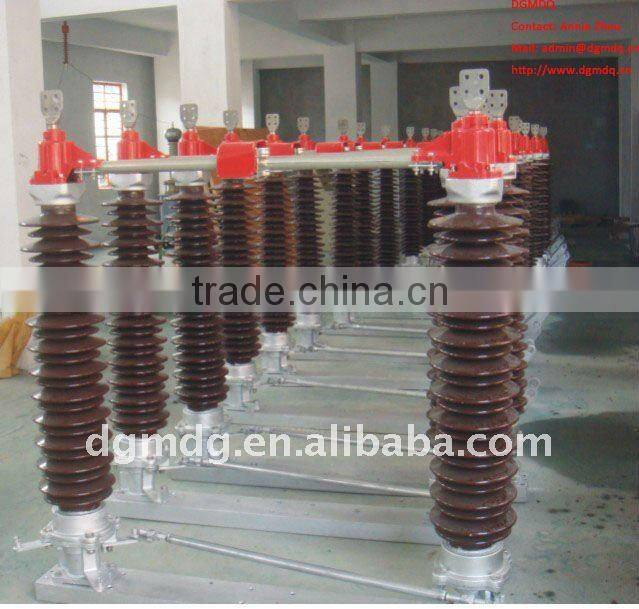

GW4 Series Outdoor isolation switch suit for high voltage distribution equipment installed in the outdoor line, for division and combiner without load .
The basic conditions of use isolation switch:
- Altitude:≤1000m
- Ambient air temp.:upper limited +40oC,lower limited -25oC
- Eathquake intensity ≤8°
- The ground have not fire,exposion danger,seriously nasty,chemical etch and serious shake
The main technology parameter:
Type Number | Rated Voltage(KV) | Rated current(A) | Peak current(KA) | 5s heat-stable current(KA) |
GW4-10 |
10 | 200A | 10 | 5 |
400A | 20 | 10 | ||
600A | 50 | 14 | ||
1000A | 80 | 21.5 | ||
GW4-15 | 15 | 200A | 15 | 5 |
400A | 25 | 10 | ||
GW4-35 GW4-35D |
35 | 400A | 30 | 10 |
600A | 50 | 14 | ||
630A | 55 | 15 | ||
1000A | 30 | 21.5 | ||
1250A | 90 | 23 | ||
GW4-60 GW4-60D | 60 | 600A | 50 | 14 |
1000A | 80 | 21.5 | ||
GW4-110 GW4-110D | 110 | 600A | 50 | 14 |
1000A | 80 | 21.5 |
Key words : Isolator Switch, Disconnector/Fuse Switch 110KVHV Disconnection Switch,High Voltage Isolate Switch
