Toggle Jaw Crusher

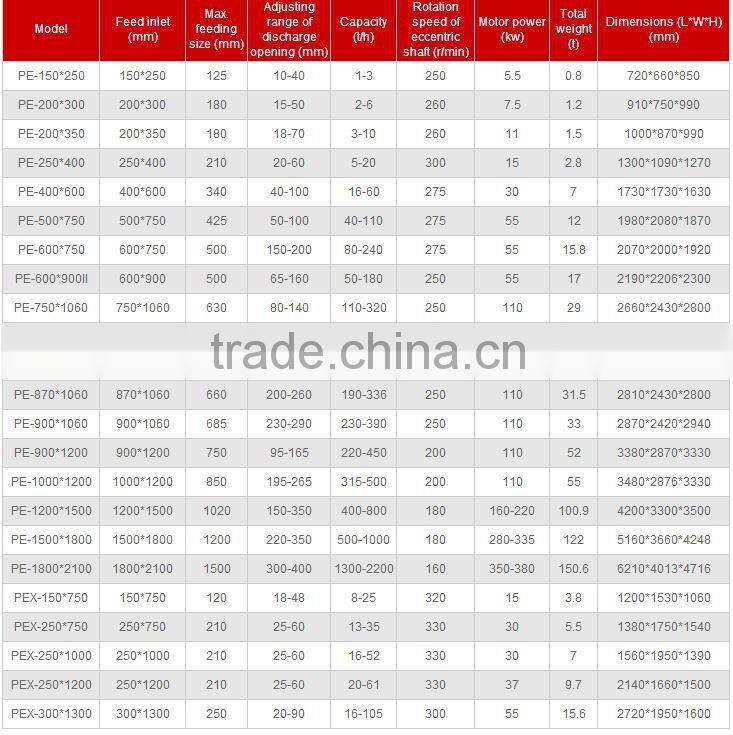

Specifications

Jaw crusher Although simple and complex swing swing both types, but their works are similar, but moving jaw is quite different trajectories. When the jaw crusher work, movable jaw to the fixed jaw plate periodically reciprocating motion, sometimes close, sometimes leave. When approached, the material being squeezed between the two jaw, splitting, the impact was broken; when the left has been broken by the force of gravity and the material discharged from the discharge port. Moving jaw by moving jaw and movable jaw plate bracket and other components, moving jaw broken jaw stent using 35 # steel, and after quenching of Toggle Jaw Crusher

Jaw crusher before starting bearing lubrication should be carefully examined the situation is good, whether the bearing bracket junction has enough grease

Features

Toggle Jaw Crusher Long Service Life, Large Feeding Size, Stable Reliable Motor, Life Time Support,

Toggle Jaw Crusher Operation Notes:

Because of its simple structure, reliable operation, easy maintenance and repair, as well as low cost, present in our mines are widely used, basically use it to crushing hard and medium hard ore (rough broken and in pieces) Operation monitoring 1, the ministries to the oil (fat) remained normal. 2, bearing temperature does not exceed 60 ℃. 3, the electrical instrument no abnormal changes. 4, ministries no abnormal sound, nothing broken hard objects fall.

Maintenance & Attention

Feed size at 400mm above the large crusher should be more than a single heavy 50-125kg big hammer, because by the impact force, the use should be based on the premise of safety, the main choice of ultra-high manganese steel high toughness, can also be selection of high-manganese steel alloy. Feed size less than 200mm and more small and medium sized crusher hammer single 50kg less weight, because by the impact is relatively small, ordinary high manganese steel processing capacity can not be fully cured, so do not wear, you should choose the carbon content of high manganese alloy ceiling or in a low-carbon steel. Feed size 50mm or less in small crusher hammer single use more weight 15kg or less, by the impact of smaller, inappropriate selection of high-manganese steel, carbon steel can choose the more appropriate choice bimetallic composite casting hammer top of high chromium cast iron hammer, hammer handle with 35 # steel or low alloy steel, two materials were to play their own characteristics.

To Choose a Right Toggle Jaw Crusher

First of all, is to look into the feed size of the cone crusher feed size, product size will be smaller. Selection of super coarse type or vice versa coarse type cone crusher with medium or fine type. In the calculation of the expected size of the time, with the open side of the inlet size multiplied by the maximum 0.85 as the selection into the material dimensions. Second, is to see the maximum feed size cone crusher, in general, while the nesting population is less than the closed material is not more than 10% over. If exceeded, the power consumption will rise, rendering the product size sheet. Cone crusher in the course, pay attention to the material will result in a production capacity of uneven, broken material can not be allowed to enter into the silo interior, the best equipped iron removal unit. Finally, is to see the quality of the cone crusher liner, the liner longer the higher power, crushing hard materials selection short liner, soft materials optional long liner. Smaller than the closed side of the discharge port of the material must not exceed 10%, if more than 10%, the increase in power consumption, product size becomes flaky.
