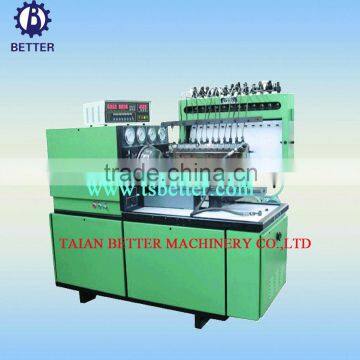

12PSB new serise diesel fuel injection pump test bench

 12PSB new serise diesel fuel injection pump test bench   is design for customer’s require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy.  It is the kind of  product with high quality and good price in our business.

Used for Bosch in line pumps of K,M,MW,A,B,BV,P(ZU,ZW,ZM) and BOSCH rotative distributor injection pumps EP/VA,EP/VM,VE….F…,also used for Chinese pumps such as Ⅰ,Ⅱ,Ⅲ,K,P7,BQ.etc.

Main Function:

1.Measurement of each cylinder delivery at any speed
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. .Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

1. Adjustable rotation speed range:0~4000RPM

2. Double series of graduates:45cc,150cc

3. Volume of oil tank:60L

4. Temperature stabilization: 40±2°C

5. Test oil filtering unit: 5μ

6. D.C.Supply:12V/24V

7. Feed pressure:low: 0~0.4MPa,high: 0~4Mpa

8. Air pressure: +0~0.3MPa, -0.03~0Mpa

9. 3-phase power supply:380V/50Hz or on request

10. Flywheel inertia’s moment: 0.8KG·M2

11. Center height:125MM

12. Output power: 7.5KW,11KW,15KW or on request

13. Overall dimensions(MM): 2360×960×1870 or on request

14. Net weight(KG):about 1000

1).We guarantee all of our products enjoy the free return policy in 2 monthes after receiving the goods,if the goods have quality problem.

2).In 12 monthes ,if some parts are broken,not purposely,we can send you the same part without any charge,but the shipping cost is yours.
