Customized Two Roll Rubber Open Mixing Mill
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Type | Open Mixing Mill | |
| Place of Origin | Shandong, China | Brand Name | Zhihong | |
| Model Number | XK-450 | Voltage | 220V-460V | |
| Power(W) | 55 KW | Dimension(L*W*H) | 5200x2380x1840MM | |
| Weight | 14000 KG | Certification | ISO9001 CE | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

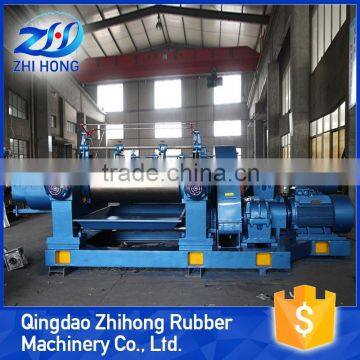

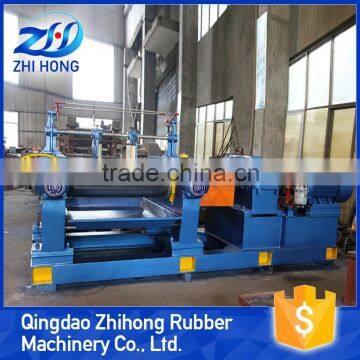

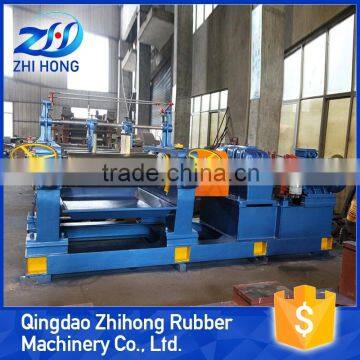

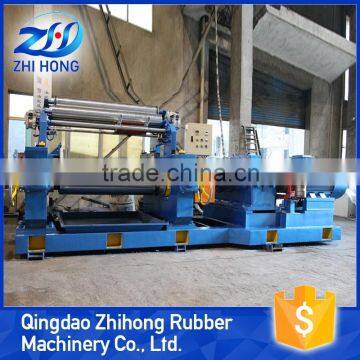

Customized Two Roll Rubber Open Mixing Mill
Product Details Description:
Two roll mixing mill machine is mainly used in rubber & plastic products factory: natural rubber plasticating, raw rubber and compound mixing, as well as rubber warm-up and rubber sheeting. As a open type two roller mixing mill, it consists of seat, frame, roller, driving gear, lubricating device, cooling and heating device, adjusting device of roller nip, safety brake, motor and reducer, etc. The roller, with smooth surface after polished,is made of chilled cast iron. Steam and cooling water can be inputted in the empty roller to adjust temperature of roller. Two rollers rotate reversely with different speed, so that rubber materials are drawn into the gap of the two rollers for processing.
Technical parameters:
Technical Parameter Type | Working Diameter Of Rolls(MM) | Working Length Of Rolls(MM) | Front Roll Surface Speed(M/MIN) | Friction Ratio | MAX.NIP(MM) | Capacity Per.batch(KG) | Motor Power(KW) | Weight(KG) |
| XK-160 | 160 | 320 | 8.95 | 1:1.35 | 4.5 | 1~2 | 5.5 | 1280 |
| XK-230 | 230 | 600 | 10.21 | 1:1.19 | 7 | 6~10 | 15 | 2500 |
| XK-250 | 250 | 620 | 14.1 | 1:1.17 | 8 | 8~15 | 18.5 | 3500 |
| XK-400 | 400 | 1000 | 18.65 | 1:1.27 | 10 | 18~35 | 37 | 7600 |
| XK-450 | 450 | 1200 | 24.26 | 1:1.27 | 15 | 25~50 | 55 | 14000 |
| XK-560 | 560/510 | 1530 | 27.72 | 1:1.2 | 15 | 35~50 | 90 | 23000 |
| XK-550B | 550 | 1500 | 27.94 | 1:1.22 | 15 | 50~60 | 110 | 27000 |
| XK-660 | 660 | 2130 | 28.6 | 1:1.24 | 15 | 165 | 245 | 49000 |
One year guarantee for whole machines(this service is superior than any other suppliers)
24 hours technical support by email
Calling or Door - To -Door service.
Provide videos for each machine.
we will send one engineer to your factory to guide installation and test running the production line, until you can operate the machine skilled.
