Best Popular Opening type two roll rubber mixing mill machine
- 30 Set / Sets per Month
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zhihong | Model Number | XK-250 | |
| Voltage | 220V-460V | Power(W) | 18.5kw | |
| Dimension(L*W*H) | 3400x1500x1800mm | Weight | 3500kg | |
| Certification | ISO9001 CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Best Popular Opening type two roll rubber mixing mill machine
Description:
Opening type two roll mixing mill machine is mainly used in rubber & plastic products factory: natural rubber plasticating, raw rubber and compound mixing, as well as rubber warm-up and rubber sheeting. As a open type two roller mixing mill, it consists of seat, frame, roller, driving gear, lubricating device, cooling and heating device, adjusting device of roller nip, safety brake, motor and reducer, etc. The roller, with smooth surface after polished,is made of chilled cast iron. Steam and cooling water can be inputted in the empty roller to adjust temperature of roller. Two rollers rotate reversely with different speed, so that rubber materials are drawn into the gap of the two rollers for processing.
Technical parameters:
Technical parameter type | XK-160 | XK-230 | XK-250 | XK-400 | XK-450 | XK-560 | XK-550B | XK-660 |
working diameter of rolls(mm) | 160 | 230 | 250 | 400 | 450 | 560/510 | 550 | 660 |
working length of rolls(mm) | 320 | 600 | 620 | 1000 | 1200 | 1530 | 1500 | 2130 |
front roll surface speed(m/min) | 8.95 | 10.21 | 14.1 | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
friction ratio | 1:1.35 | 1:1.19 | 1:1.17 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 |
max.nip(mm) | 4.5 | 7 | 8 | 10 | 15 | 15 | 15 | 15 |
capacity per.batch(kg) | 1~2 | 6~10 | 8~15 | 18~35 | 25~50 | 35~50 | 50~60 | 165 |
motor power(kw) | 5.5 | 15 | 18.5 | 37 | 55 | 90 | 110 | 245 |
overall dimension:LxWxH(mm) | 1380x860x1320 | 2800x1200x1120 | 3400x1500x1800 | 4350x1850x1785 | 5200x2380x1840 | 5845x2284x1978 | 5870x2475x2045 | 7465x3662x2080 |
weight(kg) | 1280 | 2500 | 3500 | 7600 | 14000 | 23000 | 27000 | 49000 |

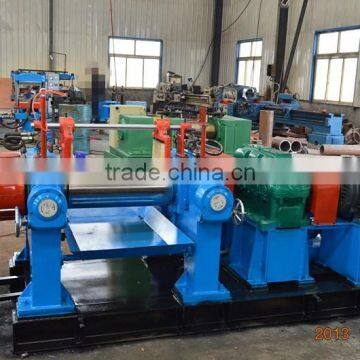

Pictures as following
If you are interested in our machines, please dont hesitate to contact us.
