Home > Products > New Products > Die Cast Aluminum Alloy cast iron NMRV 025-150 Worm Speed reducer , PC pinion helical bevel Gearboxs gear box motor for conveyor Quality Choice

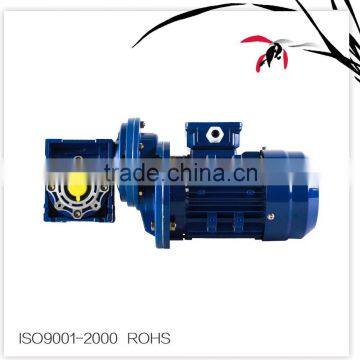

Die Cast Aluminum Alloy cast iron NMRV 025-150 Worm Speed reducer , PC pinion helical bevel Gearboxs gear box motor for conveyor Quality Choice
US$ 20 - 328
/ Unit
1 Unit(Min. Order)
- ningbo shanghai any other port in china mainland
- T/T Credit Card
You May Like
-
Die Cast Aluminum Alloy cast iron NMRV 025-150 Worm Speed reducer , PC pinion helical Gearboxs hollow or solid shaft output
-
Die Cast Aluminum Alloy cast iron NMRV 025-150 Worm Speed reducer , PC pinion helical bevel Gearboxs for conveyor
-
Die Cast Aluminum Alloy cast iron NMRV 025-150-E dz or sz Worm Speed reducer , PC pinion helical bevel Gearboxs gear box motor
-
Die Cast Aluminum Alloy cast iron NMRV 025-150 right angle Worm Speed reducer , PC pinion helical bevel Gearboxs gear box motor
-
Die Cast Aluminum Alloy cast iron double NMRV 025-150 Worm Speed reducer ,helical bevel Gearbox
-
Die Cast Aluminum Alloy cast iron NMRV 025-150 right angle mounted Worm Speed reducer PC pinion helical bevel Gearboxs motor
Product Details
| Gearing Arrangement | Worm | Output Torque | 2.5-3192 n.m | |
| Rated Power | 0.06-15KW | Input Speed | 1400 rpm | |
| Output Speed | 14-280 rpm | Place of Origin | Zhejiang, China | |
| Model Number | NMRV025-NMRV150 | Brand Name | huaxing |
Product Description
| Name | WORM GEARBOX |
| Model: | NMRV025-NMRV150 |
| Ratio: | 1:5;1:7.5,10,15,20,25,30,40,50,60,80,100 |
| Output torque: | 2.5-3192 N.M |
| Color: | Blue/Silver or on customer request |
| Material: | Housing(NMRV025-NMRV090): Die-cast aluminum alloy Housing(NMRV090-NMRV150): HT200 cast iron Worm gear: 10-1 tin-bronze Iron core: HT200 nodular cast iron |
| Packing: | Carton and wooden case, or on clients’s request |
| Bearing: | Yongle; C&U bearing |
| Oil Seal: | NAK SKF |
| Warranty: | 1 Year |
| Input Power: | 0.06KW,0.09KW,0.12KW,0.18KW,0.22KW,0.25KW,0.37KW,0.55KW, 0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW;15KW |
| Usages: | Industrial Machine: food stuff, ceramics, chemical, packing, dyeing, woodworking, glass, etc. |
| IEC Flange: | 56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,100B5, 100B14,112B5,112B14;125B5;132B5;160B5 |
| Lubricant: | Synthetic&Mineral |
Product Description
Contact Us
- Taizhou Huaxing Variable-Speed Machinery Co., Ltd.
- Contact namecindy chen Chat Now
- Phone0086-576-88208285
- Addressworker west road, Taizhou, Zhejiang
