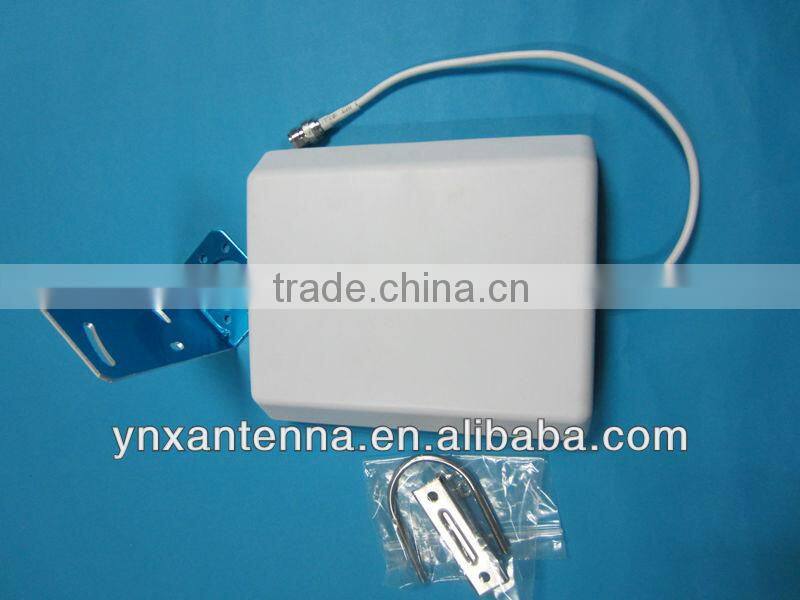

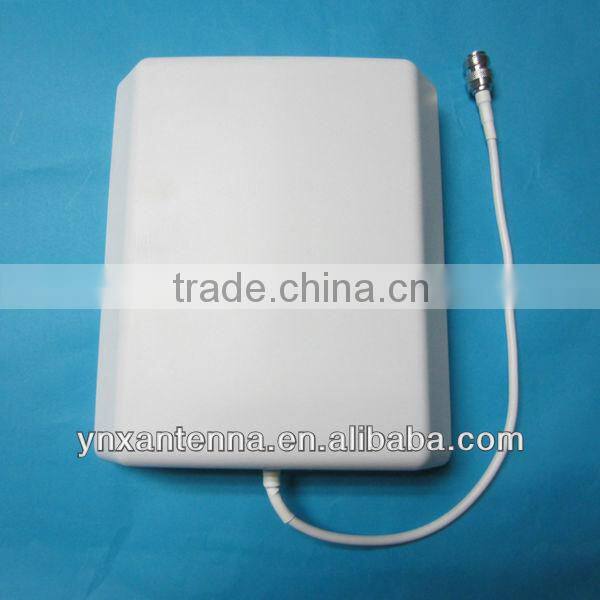

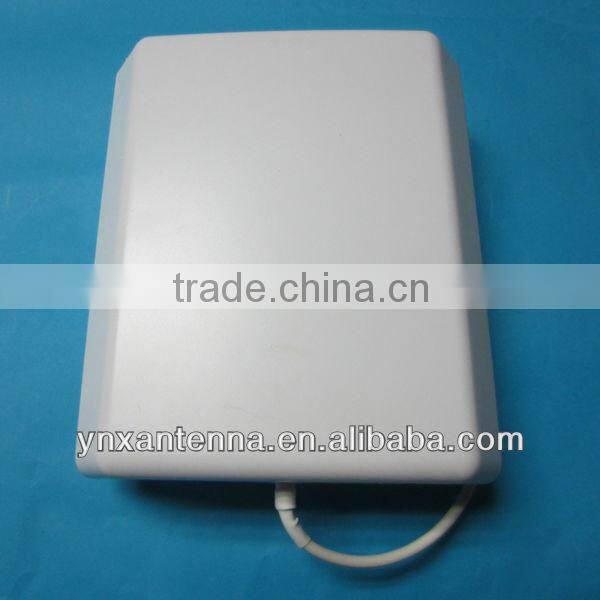

Directional Panel Mounting Antenna With High Gain
- Shenzhen
- T/T Credit Card
You May Like
-
Omni Directional Panel Mounting Antenna With High Gain
-
Hot Sale Mini 3G Indoor Antenna With Inner Connector
-
3G Dual Band Mini Rubber Antenna With Inner Connector
-
High Quality 3G Magnetic Mount Car Antenna With SMA Connector/Adapter
-
High Quality 3G Car Antenna With Magnetic Base
-
High Quality 3G Car TV Antenna With Magnetic Base
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yetnorson | |
| Model Number | YNX-GSM-HG-005 |
One product with PE bag packaging and then one pruduct one Box of directional panel antenna
Product Description
Specifications
directional panel antenna1)spread spectrum communication system
2)Designed for WiFi system; Wireless bridge
| Electrical Specifications of directional panel antenna | |
| Frequency Range (MHz) | 1710-2170 MHz |
| Input Impendence (Ω) | 50 |
| V.S.W.R | ≤1.2 |
| Gain (dBi) | 14dBi |
| F/B Ratio | ≥15dB |
| Horizontal Beam width | 60°-90° |
| Vertical Beam width | 70°-70° |
| Polarization Type | Vertical |
| Power Capacity (w) | 100 |
| Mechanical Specifications of directional panel antenna | |
| Antenna Dimension | 210mm*180mm*45mm |
| Connector | N-Female |
| Weight | 0.6kg |
| Mounting Mast Diameter | Ø30~Ø50mm |
| Rated Wind Velocity | 210Km/h |
| Operating Temperature | -40°C to+80°C |
| Radome Material | UV protected ABS |
| Radome Colour | White |

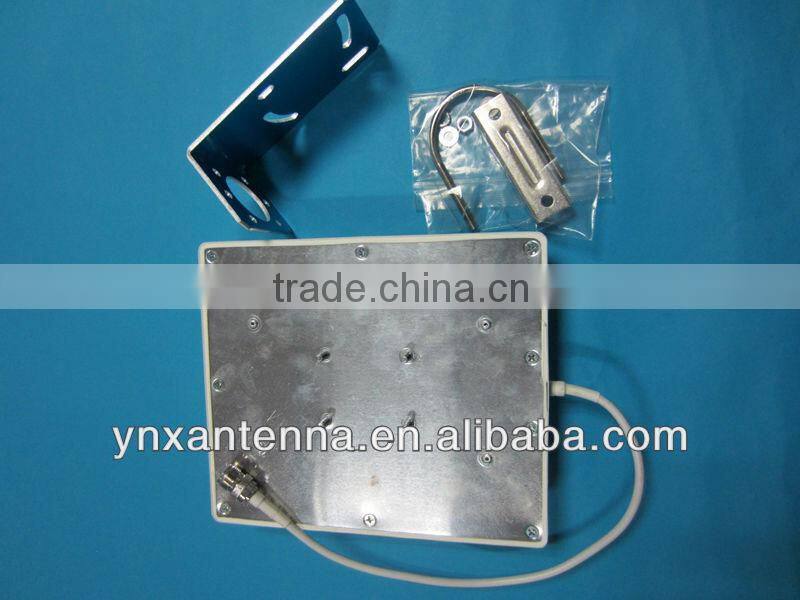

| Mounting way | on the wall or hold in the pole |
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
Company Profile
Shenzhen Yetnorson Technology Co.,Ltd is one of professional antenna maker, which focus on GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field. We offer antennas with good quality and good price. And we are cooperating with several overseas clients from all over the world. Please support us. Thank you very much!
