Tire Tread Extruder
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zhihong | Model Number | XJD-200x12D-4 | |
| Voltage | 220V-460V | Power(W) | 280kw | |
| Dimension(L*W*H) | 4900x1900x1850mm | Weight | 14000kg | |
| Certification | ISO9001 CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
tire tread extruder /Pin barrel cold feed rubber extruder/tire tread extruder/ retread tire extruder/conveyor belt extruder
1. Application:

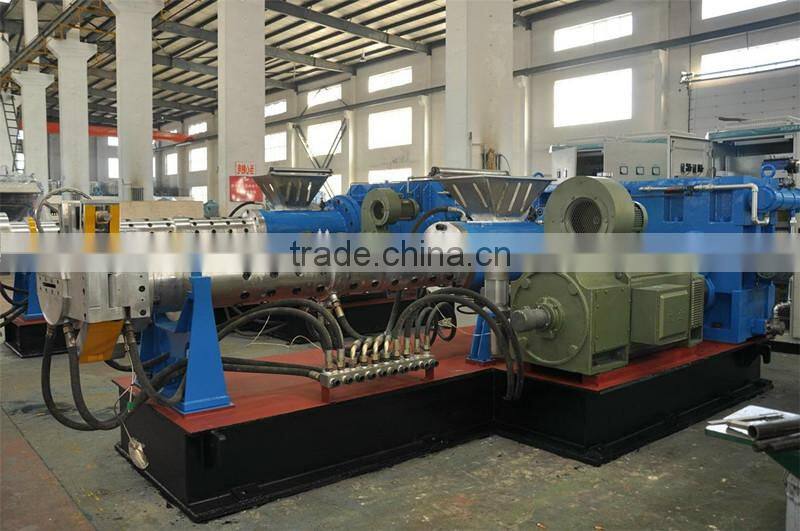

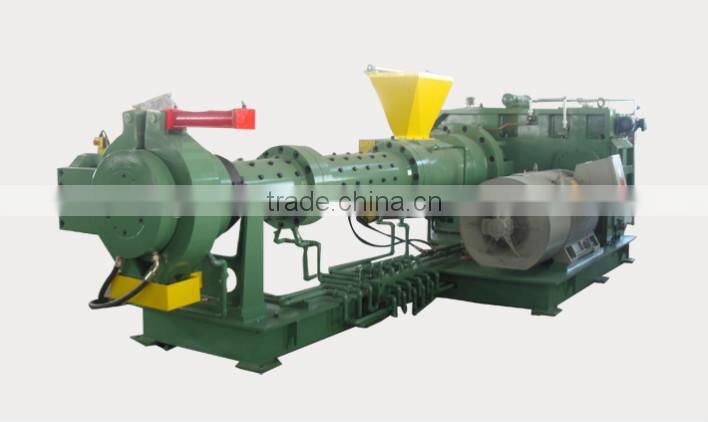

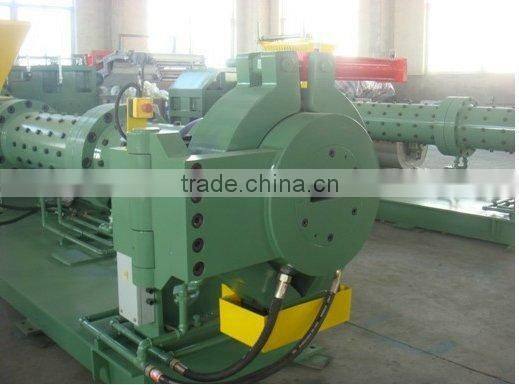

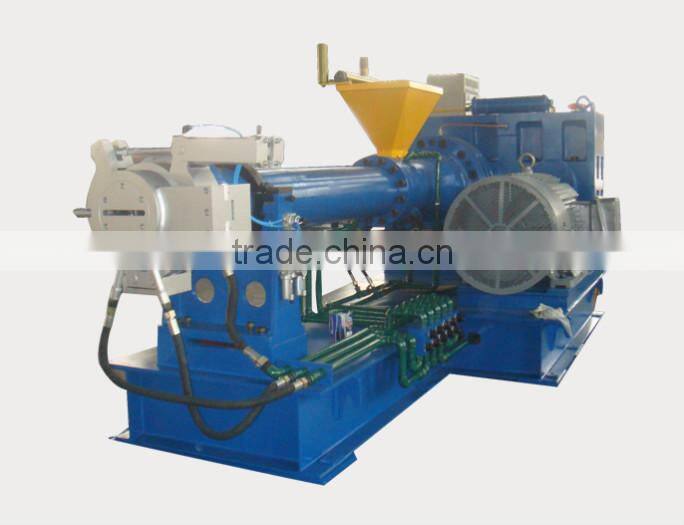

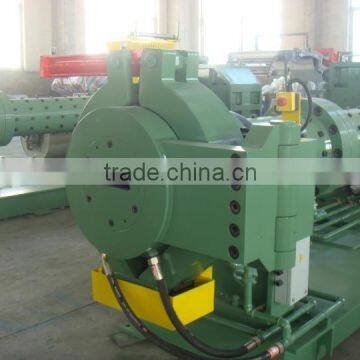

the pin barrel rubber tire tread extruder is mainly used for the shaping extrusions of rubber compounds at room temperature. when fitted with different extruder heads, it can achieve many rubber products in rubber industry, for example, extruding of inner tubes and tire treads, coating of rubber tube and conveyor belt, shaping extrusion of profiles of rubber sheet and plate. in addition, it also incorporates into a multiple extrusion unit together with other (hot or cold feed) rubber extruders.
pin barrel extruder has good plastifying and mixing properties which can result in uniformity goods, low extrusion temperature , high extrusion capacity , low power consumation, wide processing adaptability.
2. Technical specifications:
Data / Model | XJD- 90X14D | XJD- 120X14D | XJD- 150X16D | XJD- 200X12D | XJD- 200X16D | XJD- 250X12D | XJD- 250X16D | |
Diameter Of screw(mm) | 90 | 120 | 150 | 200 | 200 | 250 | 250 | |
L/D | 14:1 | 14:1 | 16:1 | 12:1 | 16:1 | 12:1 | 16:1 | |
Max. speed of screw(r/min) | 60 | 50 | 43 | 33 | 33 | 26 | 26 | |
Size of feeding hopper (LxW) (mm) | 120x80 | 160x110 | 200x165 | 260x210 | 260x210 | 340x208 | 340x208 | |
Row quantity of pins | 8 | 10 | 10 | 8 | 12 | 10 | 12 | |
Pin quantity per row | 6 | 6 | 8 | 10 | 10 | 12 | 12 | |
Hot water circulating zones | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
Total power for hot water heating | 24 | 36 | 48 | 48 | 54 | 48 | 48 | |
Capacity (kg/h) | 360 | 1000 | 1800 | 2600 | 2600 | 3000 | 3000 | |
Motor power (kw) | 55 | 90 | 220 | 280 | 315 | 400 | 450 | |
Overall dimension(mm) | L | 2300 | 3250 | 3880 | 4900 | 6200 | 5400 | 6077 |
W | 950 | 1250 | 1700 | 1900 | 1900 | 2400 | 2400 | |
H | 1450 | 1650 | 1700 | 1850 | 1850 | 1920 | 1920 | |
Weight (kg) | 3250 | 5670 | 7250 | 14000 | 14600 | 18000 | 20800 | |
If you are interested in our more extruders, please check our website:
http://zhihongrubbermachinery.en.china.cn
Thank you
