High Quality Pin Barrel Rubber Twin Screw Extruder
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zhihong | Model Number | XJF-200Cx150C | |
| Voltage | 220V-460V | Power(W) | 315kw | |
| Dimension(L*W*H) | 6250x5800x4400mm | Weight | 36500kg | |
| Certification | ISO9001 CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

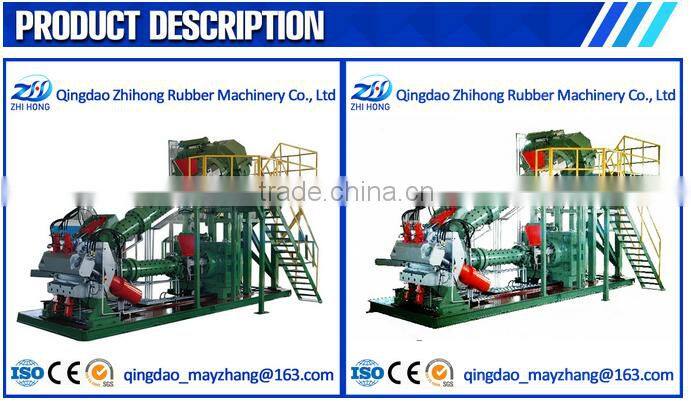

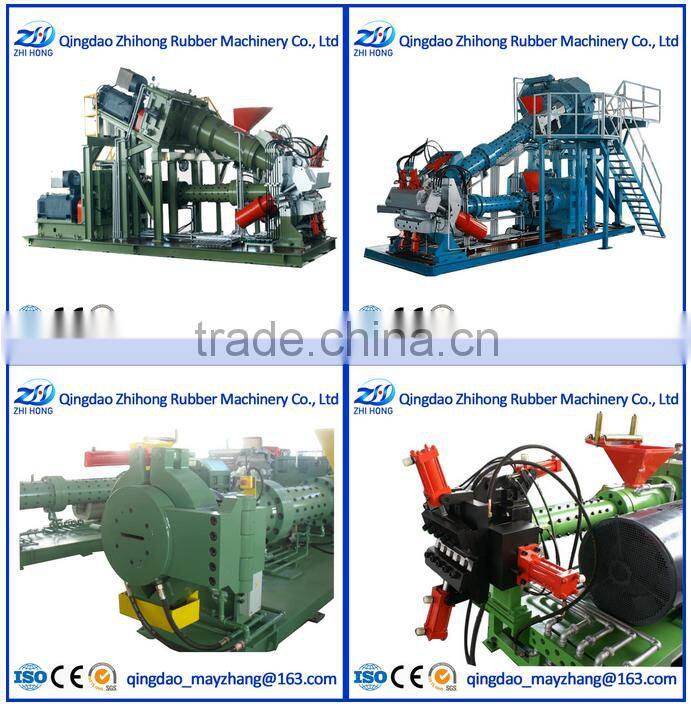

High Quality Pin Barrel Rubber Twin Screw Extruder
Usage:
The set is used for the compound extrusion of tire tread.
Structural features:
- 1. The machine adopts compound technology to make the tire tread precise size and compact structure.
- 2. The series machines adopt introduced technologies and equipments and select the domestic ancillaries and some imported ancillaries.
- 3. The set is supplied in two types, dual cooling and one-cooling-one-heating. It’s also equipped with a reducer with hard-tooth gears, an automatically hydraulic tread head and a temperature pressure measuring device.
- 4. The temperature of each part is controlled sectionally by intelligent temperature control device.
- 5. The machine adopts DC and AC motor drive.
- 6. We can design and manufacture multi-extruders with any configuration according to customer’s requirement.
Technical parameters:
Model: XJF-200Cx150C
Specification: XJD-200x16D/XJD-150x16D
Screw Dia: 200/150mm
L/D: 16D/16D
Max.rotational speed of screw: 33/43 r/min
Hopper opening: 260x150/200x120mm
Rows of pin: 10/10
Pin quantities of each row: 10/8
Motor model: Z4-280-32/Z4-250-41
Power: 315/220 KW
Hot water culation zone: 9
Heating power of hot water circulation: 125KW
Max.output: 2600/1500kg/h
Overall dimension: 6250x5800x4400mm
Weight: 36.5ton

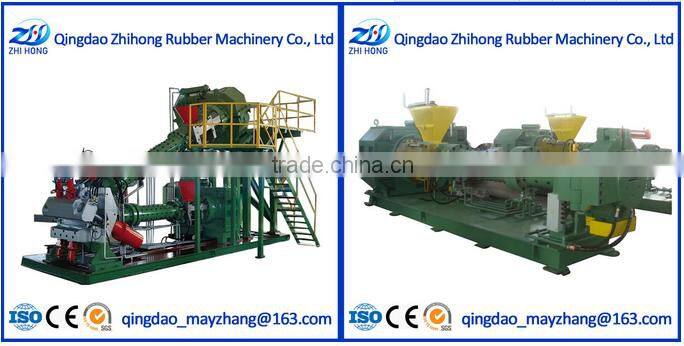

Cold feed rubber extruder machine includs the PIN-TYPE cold feeding rubber extruder machine and common cold feeding rubber extruder macine. Cold feed rubber extruder machine is widely used in the rubber product like rubber profiles, rubber tubes, tubber tyres and rubber sealings production.
The PIN-TYPE Cold feed Rubber Extruder Machine Applications: extrusion of tread,side wall,inner tube of the tyre. the rubber pipe extrusion,rubber sheet extrusion, rubber sealings etc.
The Common Cold feed Rubber Extruder Machine Applications: car tubes extrusion, rubber sealing strips, rubber window&door sealing profiles, rubber rings etc.extrusion.
ItemSpec | HF250X4.5D HF200X4.5D | HF250X8D HJD150X16D | HF200X8D XJD150X16D | XJD250X16D XJD200X16D | XJD200X16D XJS150X16D | XJD150X16D XJD120X14D | XJD120X14D XJD90X14D |
Screw Dia | 250/200 | 250/150 | 200/150 | 250/200 | 200/150 | 150/120 | 120/90 |
L/D | 4.5/4.5 | 8/16 | 8/16 | 16/16 | 16/16 | 16/14 | 14/14 |
Max.Screw Speed | 57.6/56.6 | 40/40 | 50/30 | 26/33 | 33/43 | 43/50 | 50/60 |
Hopper Opening | 280X205 230X240 | 365X300 200X165 | 365X300 200X165 | 340X208 260X210 | 260X210 200X165 | 200X165 160X110 | 160X110 120X80 |
Row Quantity of pin | - | 10 | 10 | 12/12 | 12/10 | 10/10 | 10/8 |
Pin Quantity of Each Row | - | 8 | 8 | 12/10 | 10/8 | 8/6 | 6/6 |
Model of Motor | Z4-250-31 Z4-250-11 | Z4-250-41 Z4-250-41 | Z4-250-12 Z4-250-41 | Z4-250-12 Z4-250-32 | Z4-250-32 Z4-250-41 | Z4-250-41 Z4-250-11 | Z4-250-11 Z4-250-41 |
Power | 132/110KW | 220/220KW | 160/220KW | 450/315KW | 315/220KW | 220/110KW | 110/55KW |
Zone of Hot Water Circulating | - | 9 | 7 | 9 | 9 | 8 | 7 |
Total Power for Hot Water Heating | - | 144 | 128 | 152 | 128 | 92 | 84 |
Overall dimensions | 4836X2150X1915 | 6650X8400X4200 | 6971X7116X3640 | 8750X3520X4800 | 6250X5800X4400 | 5100X4600X3500 | 4200X2500X2800 |
Weight | 19.5T | 33T | 32T | 53T | 40T | 30T | 20T |
Capacity | 3500/1800Kg/h | 3500/1500Kg/h | 2600/1800Kg/h | 3000/2100Kg/h | 2100/1500Kg/h | 1500/1000Kg/h | 1000/360Kg/h |
