New Technology Automatic FRP Pultrusion Production Line
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zhihong | Model Number | MG-26A4 | |
| Voltage | 220V-460V | Power(W) | 20kw | |
| Dimension(L*W*H) | 20m(L) x 1.85m(W) x 1.45m(H) | Weight | 8000kg | |
| Certification | ISO9001 CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

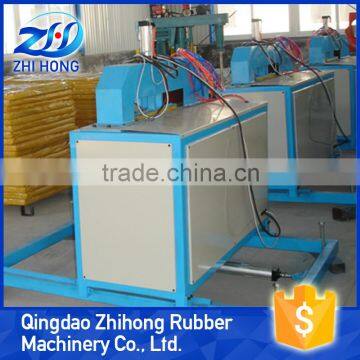

New Technology Automatic FRP Pultrusion Production Line
The FRP rebar production line is the special pultrusion machine used to produce FRP rebar with different specifications from diameter 6mm to 30mm. It can finish distributing roving, impregnation, pre-molding, winding, heating and curing, unwinding, fix-length cutting and pile up automatically.
The production line can make 2pcs rebars at one time. so the production efficiency is high.
Working voltage | 380V/50HZ | Air pressure | 0.4-0.6Mpa |
Total power | 20KW | Center height | 1000mm |
Number of winding heads | 2 | Central space between winding head | 411mm |
Winding rotation speed | 9-95rpm | Winding diameter | φ6-30mm |
Traction speed | 0.1-1 m/min | Traction force | 40KN |
Clamping length | 1200mm | Clamping width | 500mm |
Cutting range | 600x65mm(WxH) | Cutting speed | 2850rpm |
Cutting journey | 700mm | Length setting mode | Limit switch |
Dimension | 20000x1850x1450mm |
|
|
Our Production Line:
We are Zhihong Group,Except the FRP Profile Pultrusion Machine, We can also design and manufacture all kinds of vulcanizing press, only please inform us your requirement, such as total pressure, hot plate size, working layer number etc. technical parameter.We have a group of professional engineers who engaged in this field for more than 15 Years in charge of designing,manufacturing, installing,testing. So we can guarantee that our machines will be running with good performance based on high quality. What is the most important, Complete after-sales service will enhance your satisfaction.
Please Feel Free To Contact Us For Further Information!
(Click To Our Website)
