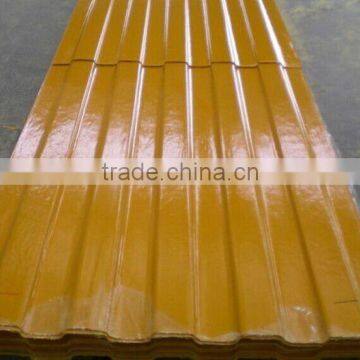

China Manufacturer FRP Corrugated Roofing Sheet Production Line

China manufacturer FRP corrugated roofing sheet production line

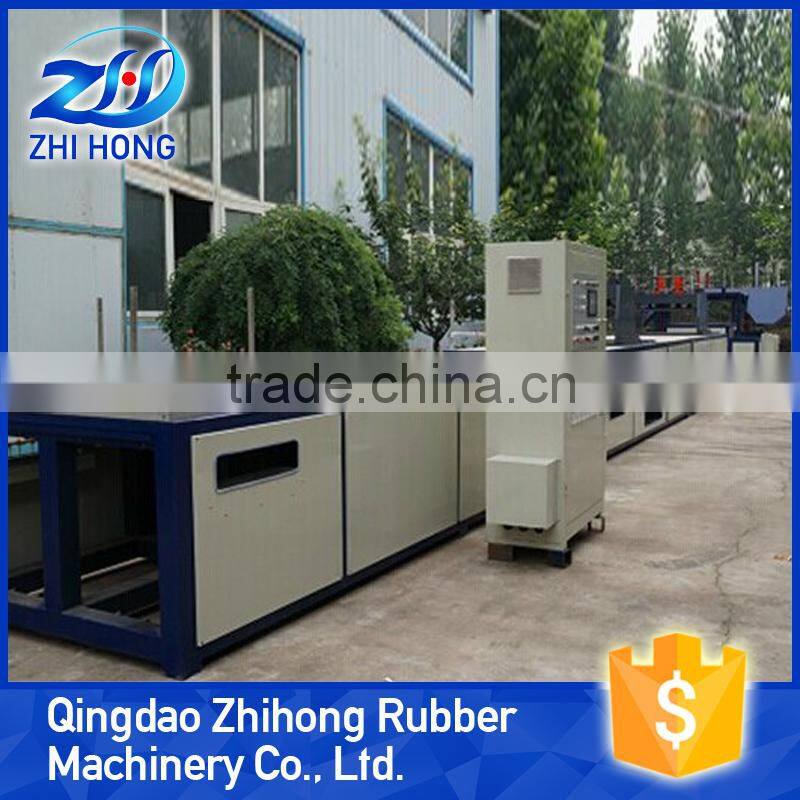

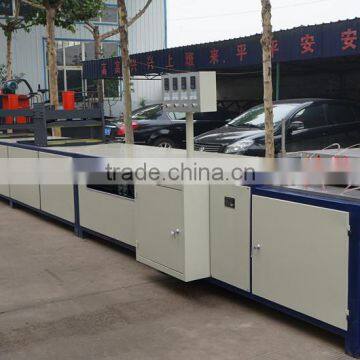

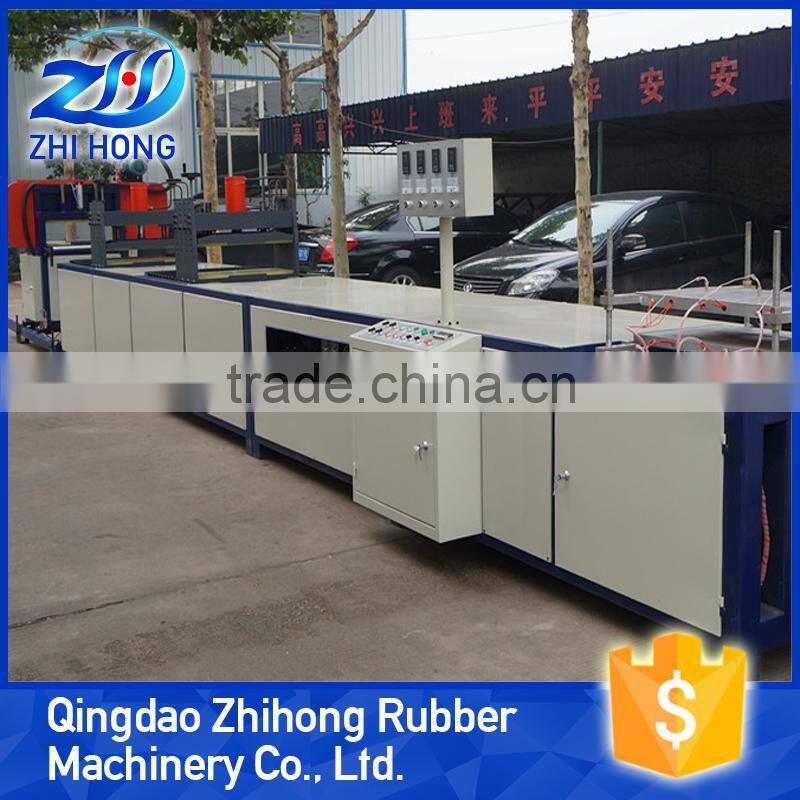

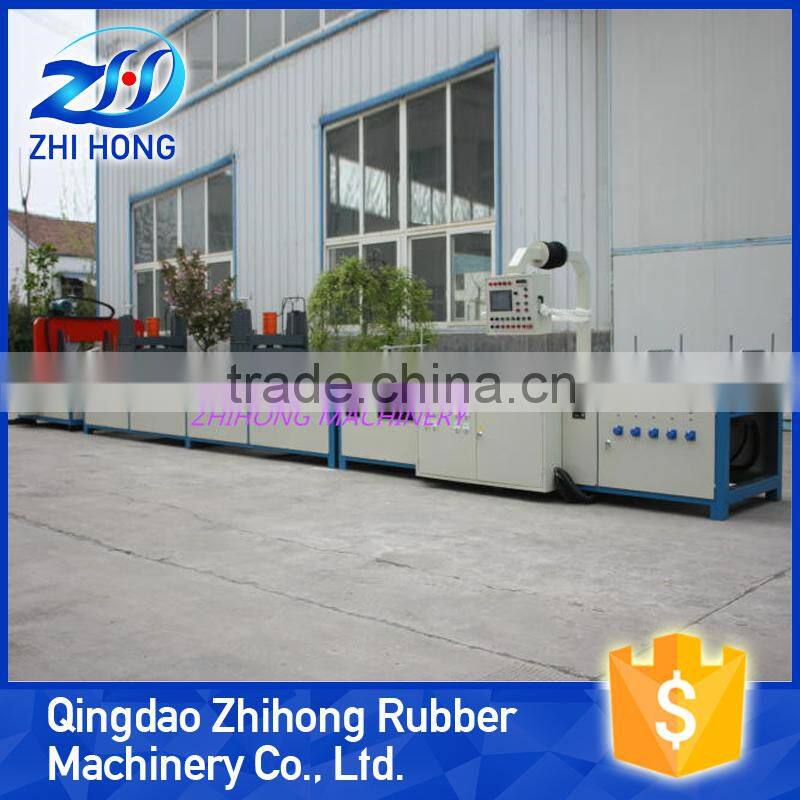

 Hydraulic type pultrusion machine is controlled by PLC, which adopts hydraulic pressure type to-and-fro as traction force with pneumatic length-fixing cutting. The line consists of roving racks, resin bath, mould calibrating table, to-and-fro traction machine, cutting saw, racks for finished products and control system.

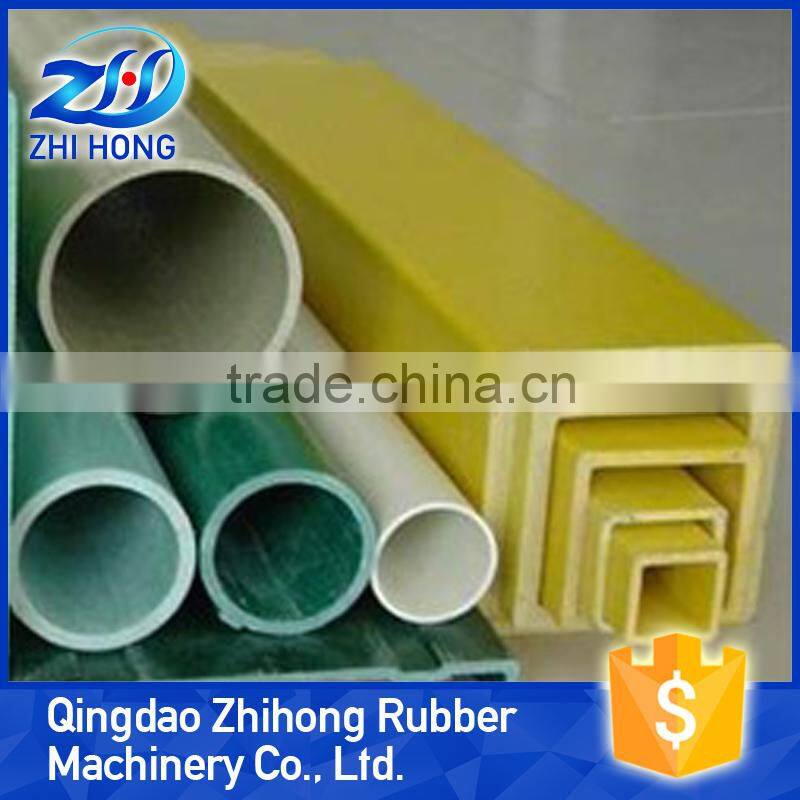

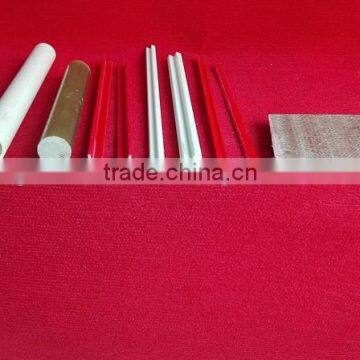

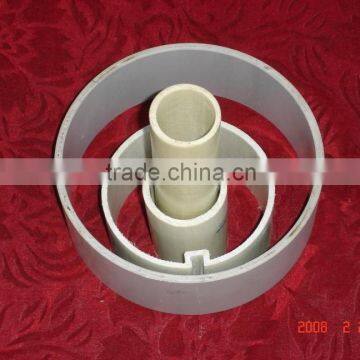

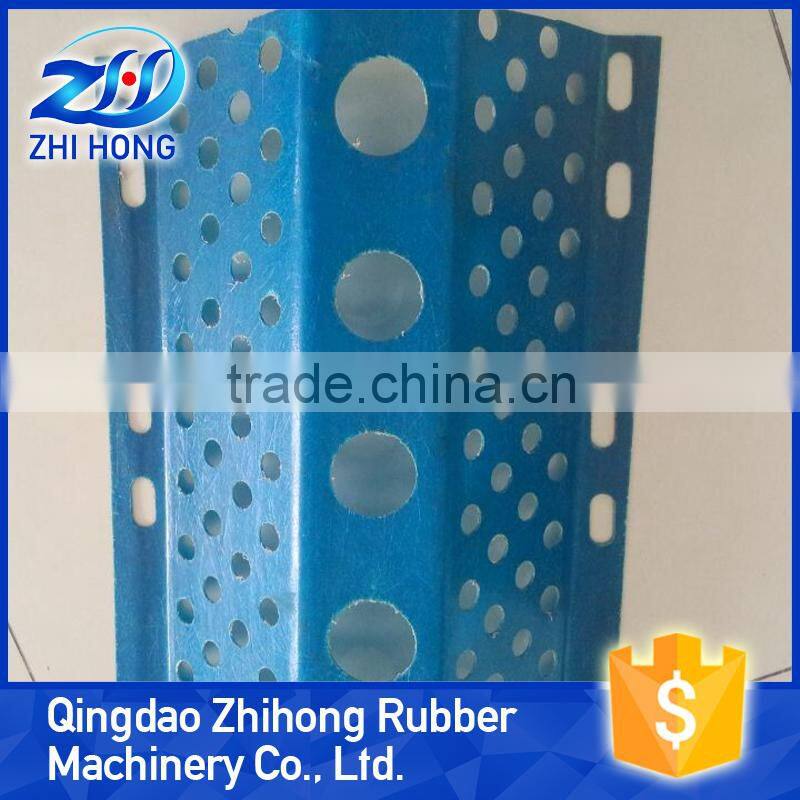

The machine can produce various  FRP(including Glass fiber and Basalt fiber) Pultrusion Profiles only need different molds, the profiles include square tubes, rectangular tubes, round tubes, angles, I-shapes, channel, beam, windows and doors profiles, flat sheet, wave sheet, and rod fiberglass pultruded profile etc.

Temperature is controlled by high-precision dual displaying meter.

Traction speed digital displaying

Sealing elements of hydraulic cylinder is imported ones and hydraulic system adopts importing variable pump hydraulic components.

With the optional function of oil temperature alarm and oil level malfunction alarm. Optional hydraulic oil heater.

Hydraulic type traction device supply different kinds of operation modes. The traction speed id infinitely controlled.

Adopting round blade cross cutting, pneumatic clamping and tracing.

Max. products range:

Sheet max.size:800x300mm(WXH)

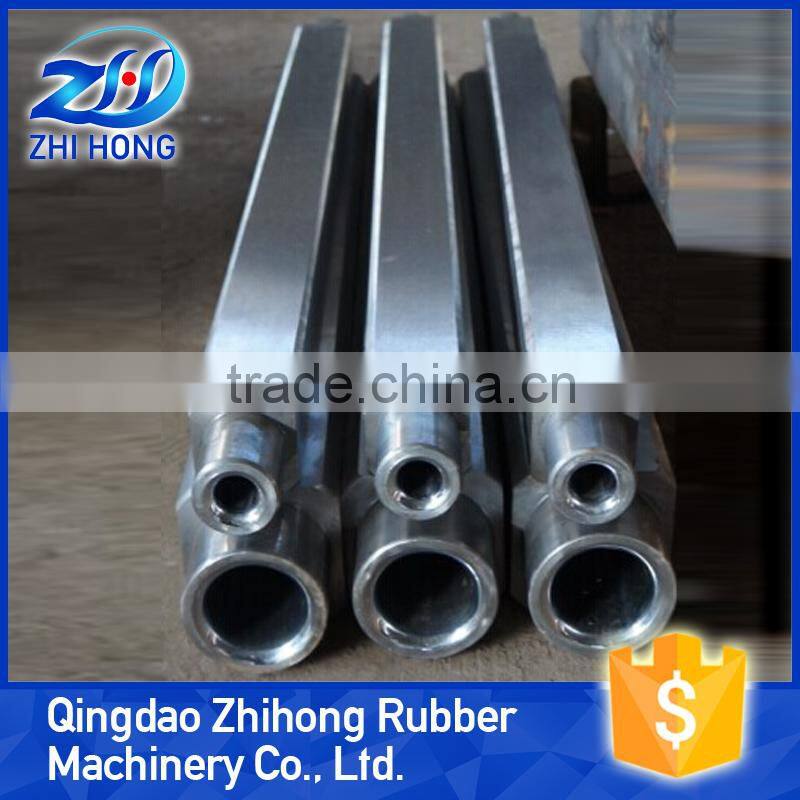

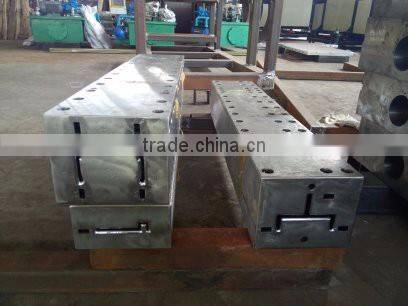

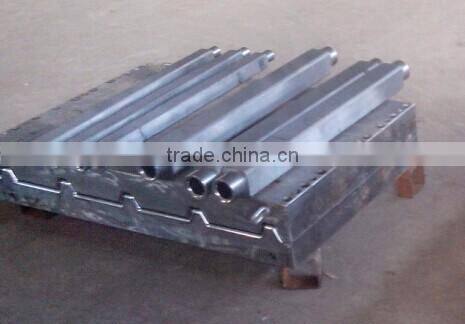

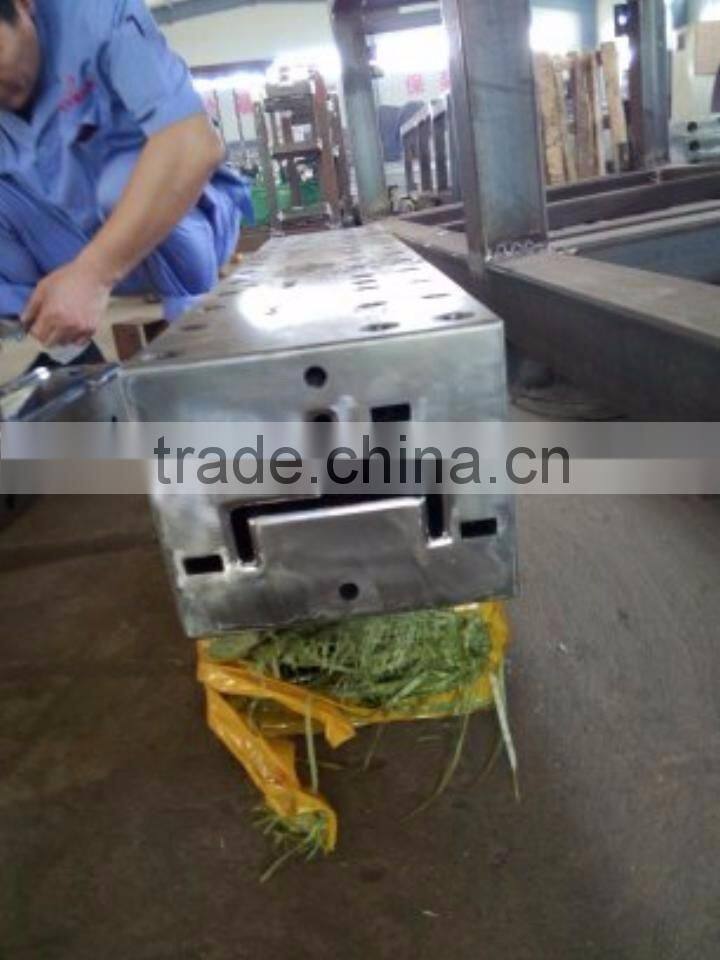

  My company to provide customers with all kinds of mold: fiberglass pultruded profile mold frp rod pultrusion die solid bars pultrusion die,If necessary, please contact us..

 A Little Tip:

We are Zhihong Group,Except the FRP Profile Pultrusion Machine, We can also design and manufacture all kinds of vulcanizing press, only please inform us your requirement, such as total pressure, hot plate size, working layer number etc. technical parameter.We have a group of professional engineers who engaged in this field for more than 15 Years in charge of designing,manufacturing, installing,testing. So we can guarantee that our machines will be running with good performance based on high quality. Good after-sales service will be satificated with you.
