Vertical Car Parking System Used Two Post Car Lifts for Sale
- qingdao
- T/T
You May Like
-
2.7t HYDRAULIC FOUR POST PARKING LIST /4 POST CAR Parking Lift Quality Choice
-
China InTwo Post Car Stacker Parkin Lift Garage Equipment/Two Post Simple Parking Lift/ 2 Post Easy Parking Lifts
-
Two Post Car Parking Lift Equipment for Home Garages
-
Car Engine Two Post Lift
-
Mechanical Car Garage Double Deck Vertical 2 Level Parking Lift
-
Underground Parking System Home Garage Parking Lift
Product Details
| Type | Parking Lift | Height (mm) | 3900mm | |
| Width (mm) | 2585mm | Place of Origin | Shandong, China | |
| Brand Name | telian | Model Number | PTJ301-20 | |
| Warranty | 1 Years |
Product Description
vertical car parking system used two post car lifts for sale,PTJ301-20
Our products are sold all over the world, United States, United Kingdom, Mexico, Russia, Kenya, Portugal, Columbia, Singapore, New Zealand, Malta,Australia ect.
Product description
This parking system is designed of two spaces of up and down as one unit. The bottom car go in and out directly.
When the upper space needs to park a car, the car in the bottom should be driven out.
It can be widely used in apartments, yards and lower height of basements.
Product advantages
- Hydraulic drive, cable lifter system device to ensure the balance both ends of rise and fall.
- Low noise, smooth operation, save energy, low carbon and environmental protection.
- Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow.
- Polluting the lower vehicles.
- Electrical and driving parts with waterproof characteristics.
- Simple structure, easy installation, minimal requirements for civil engineering.

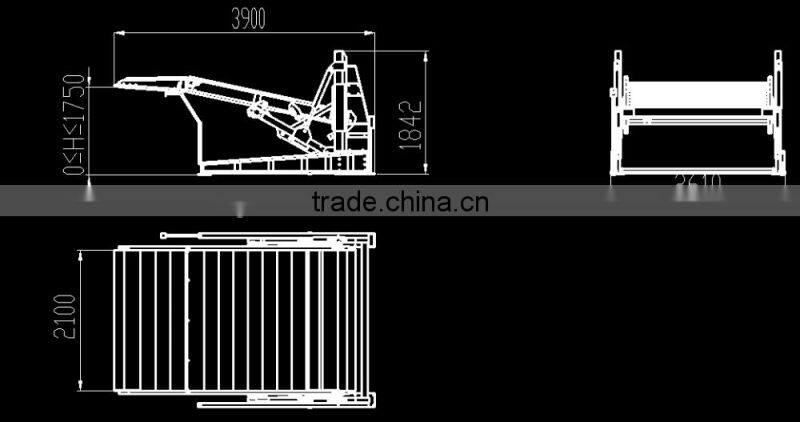

Product parameter
Name | Tilting Parking Lift |
Dimension | 3900*2585*1842mm |
Weight of parking car | 2000kg |
Rated speed | 2m/min |
Lifting height | 1700mm |
Size of vehicle loading pallet | 3660*2100mm |
Motor | 2.2kw |
Warming devices | Yes |
Mode of operate | Button / Remote key |
Mode of control | Hydraulic control |
Mode of drive | Hydraulic driving |
Electrics motor | 380v,3 phase; 220v single phase |
Package size | 2650*810*1880mm |
weight | 850kgs |
20’ container | 11sets |
40’ container | 22sets |

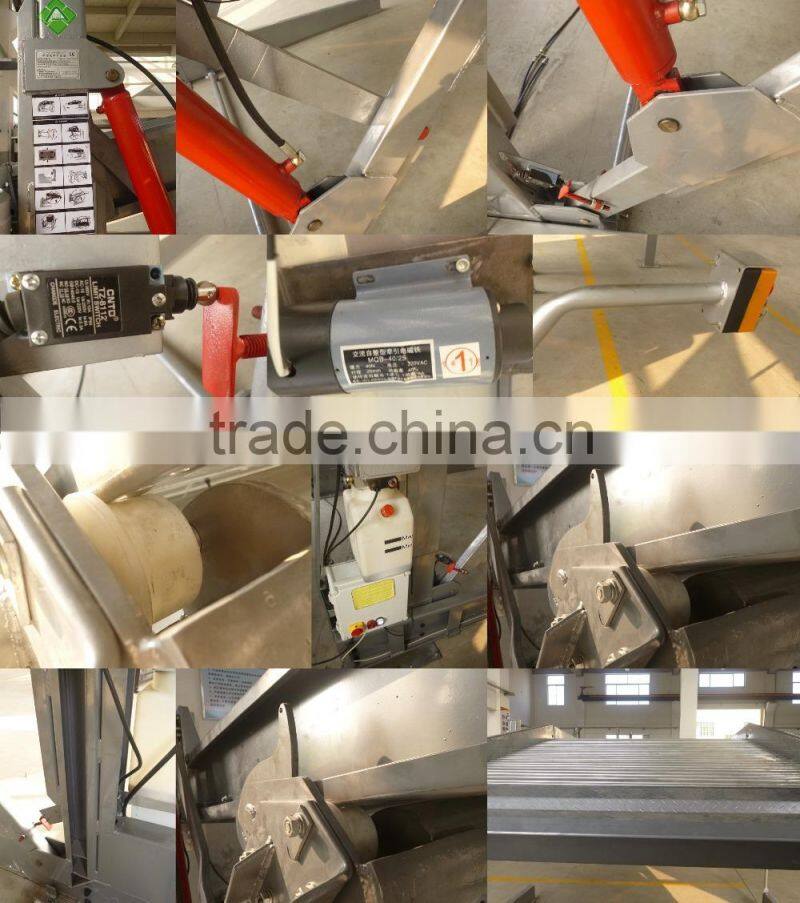

Product details

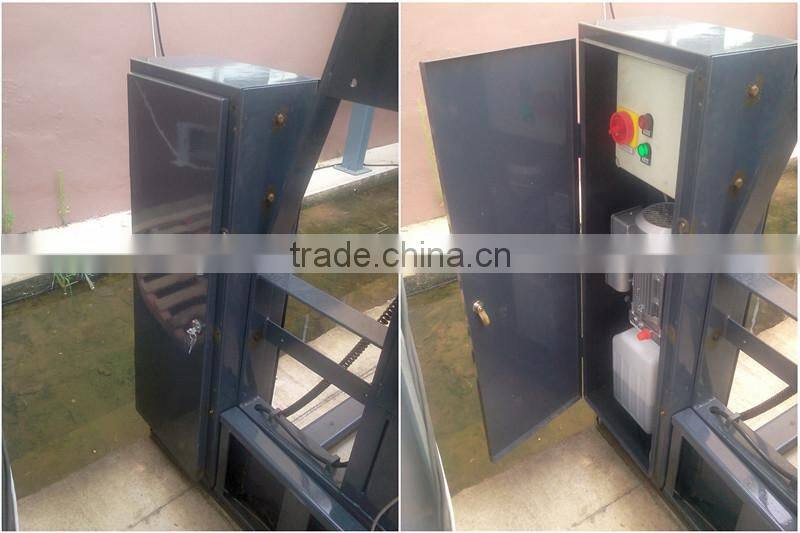

Shield: It can protect the power unit away from the rain or sunlight.
Others:

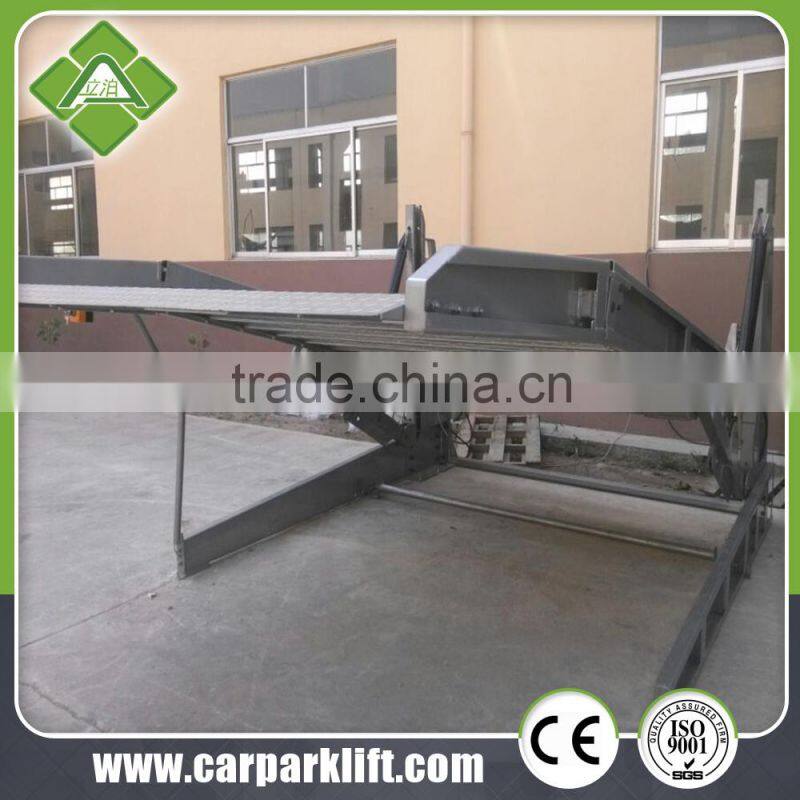

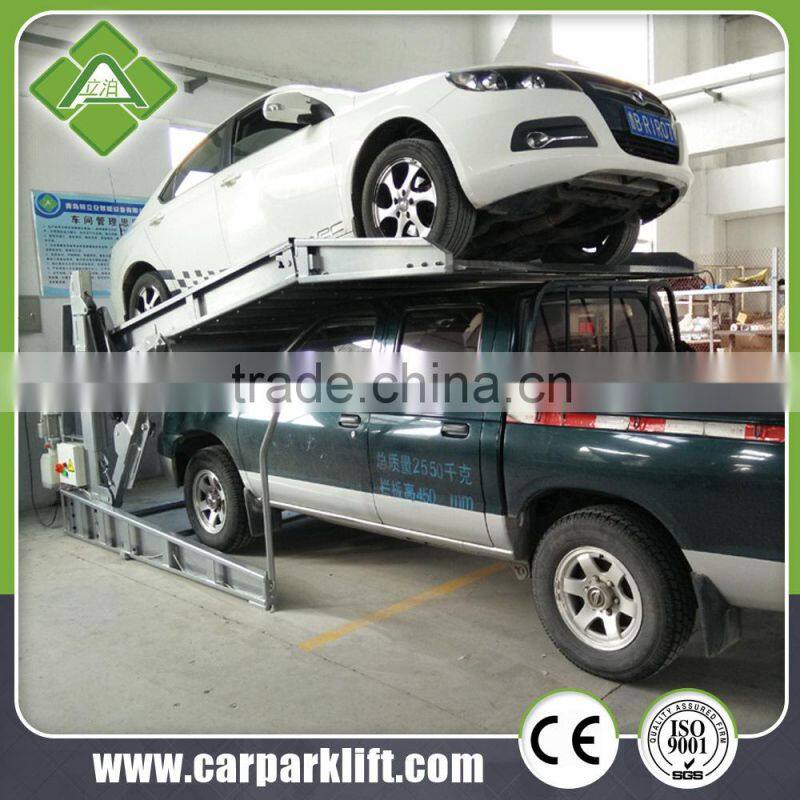

Product photos
The package
- Iron frame to fix equipment.
- All structures fixed on the frame by screws.
- All electric wires and motor put into carton.
- Iron frame and carton will be covered by stretch film.
- Each package will twine three stretch film to prevent water.
- During the unloading, please use forklift to unload the iron frame.

Factory information
Qingdao Telian Machinery Co., Ltd. is an enterprise that specializes in research ,production ,sale and service of simple household parking lift. Main products are two post parking lift, four post parking lift, tilting parking lift, underground parking lift, car lift, lift-sliding parking lift etc.
Quality is the life of enterprise. As the manufacturer and supplier, Telian focus on quality and technical innovation.The production of device put through strict quality control. Meanwhile, Telian smart two level parking lift imported Germany advanced technology andpassed the European CE certification.
The characteristics of products are easy operation, safe and reliable, attractive appearance, small floor space, easy installation, low energy consumption, low noise. The products are used in enterprise, office building, dwelling and hotel. The quality of the products is better than others in the market.
Customer’s demand is the guide of Telian. We also can customize the products for you.
The queations
It is my pleasure to provide you the details.
Q: Is PTJ301-20 used indoor or outdoor?
A: Both of them are avaliable.
Q: What if we can't install it
A: Don't worry, we will help you.
Q: Is there any other sizes?
A: Yes, of course, we can custom made it for you.
About the terms
Q: What is the standard trade term for making business with us?
A: Usually we send the shipments in FOB term.However,the terms of CIF and CFR are acceptable which depend of clients.
Q: What is the delivery time after placing the order?
A: Usually it takes 15-30 days after we received your down payment.However,it would depend on our production line schedule (the timing clients place order) and the complication of the item.
Q: What is the payment?
A: By T/T,50%is paid in advance; balance before delivery.
Q: How do you package the equipment?
A: Our packing is used Iron frame+structures .
Q: What is the min order?
A: 1 set.
Q: What is the warranty?
A: 1 year for free,after sales service for ever.
Contact us
For our product , we can according to your requirement do it for you
Contact Us
- Qingdao Telian Machinery Co., Ltd.
- Contact nametelian qd Chat Now
- Phone0086-532-85135975
- AddressNo.521 Haibin 12th Road, Qingdao, Shandong
