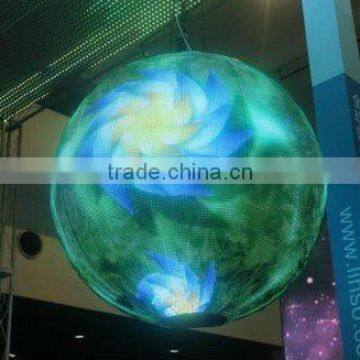

Ball LED Screen P6 LED Ball

Technology Specifications

Name

Technology Specifications

1.Physical index

Pixel:6mm

Color:Red+Green+Blue

Pixel configuration:1R1G1B

Pixel density:27778dots/sqm for the standard module

LED type :SMD3528

2 Module

Panel pixel(dots):98000dots

Modul size:irregular

3 Screen

Viewing:360⁰

Storage temperature:-40°C_~~+65°C

Operated temperature:-40°C~~+60°C

Humidity:10%-95%

Screen thickness:cabinet thickness 12cm(Front Maintenance)

Protection:IP31

4 Power supply

Power: AC220Vor 380V

Max power consumption:1200W/sqm average 500W/ sqm sqm

5 Control system

Computer:DELL V230 or similar computer

Operating system:WIN7/2000/XP

Display card:DVI

Control mode:synchronization control

Refresh frequency:≥2000Hz

Grey/Color:16K,4K(Optional)/16.7M colors

Calibrate Brightness:256level adjust

Control system adopts:DVI+Master card+ Internet line

6 Main specifications

Driver:Constant current

Driver mode:1/8 scan

Frame frequency:≥60Hz

Brightness:≥2000cd/sqm

Accepting signal:RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc

MTBF:≥1000hours;Life-span:100,000hours

Level up degree:pixel≤0.5mm;module<1mm

Uniformity:pixel and module uniformity brightness

Malfunction dot rate:<0.0001

Switch power load:5V/40A

Computer display mode:1024×768

Control distance:internet line :100m;single mode fiber:
20km;multi mode fiber:500m
