Wirerope Electric Hoist 1 ton
- Tianjin Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | pengda | Model Number | CD/MD | |
| Usage | Other, Mining or construction hoist | Power Source | Electric | |
| Sling Type | Wire Rope | Maximum Lifting Weight | 1t | |
| Maximum Lifting Height | 6~30m | Lift Speed | 8m/min, 8/0.8m/min,7m/min,7/ 0.7m/min, 3.5m/min, 3.5/0.35m/min | |
| Certification | ISO9001 | Warranty | 14 month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

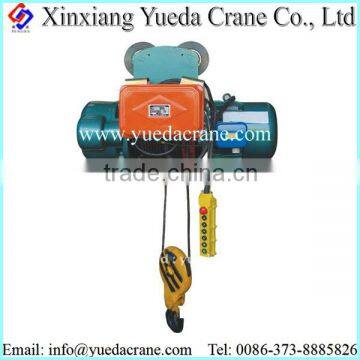

Wirerope Electric Hoist 1 ton
CD model electric hoist has only one normal speed ,which can satisfy normal application. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.
CD&MD model electric hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharfs and warehouses.
The standard capacity of this type electric hoist: 0.5T, 1T, 2T, 3T, 5T, 10T, 16T, 20T.
Lifting height: 6m, 9m, 12m, 18m, 24m, 30m, and Max. 100m.
Main techniacl data
The general details of wire rope electric hoist with standard type | |||||
Model | CD | MD | |||
Capacity (ton) | 0.5, 1, 2, 3, 5 | 10, 16, 20 | 0.5, 1, 2, 3, 5 | 10, 16, 20 | |
Travelling mechanism | Travelling Speed (m/min) | 10, 20, 30 | 10, 20, 30 |
| |
Motor (kw) | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | 1x0.4, 1x0.8 | 2x0.8, 4x0.8 | |
Lifting mechanism | Lifting Speed (m/min) | 8 | 7, 3.5 | 8/0.8 | 7/0.7, 3.5/0.35 |
Lifting height (m) | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | 6, 9, 12, 18, 24, 30 | 9, 12, 18, 24, 30 | |
Motor (kw) | 0.8, 1.5, 3.0, 4.5, 7.5 | 13 | 0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 | 13/1.5 | |
Duty Class | M3 | ||||
Power source | 380V, 50HZ, 3 phase (or other standard) | ||||
Working temperature | -20~40°C | ||||
Branch of rope | 2 ropes(0.5t~5t), 4 ropes(10t~20t) | ||||
Brake | Mounted on motors | ||||
Control model | Pendant pushbutton control or wireless remote control | ||||
Photo of electric hoist
The lifting motor of electric hoist:
The travelling unit of electric hoist:
The wire rope guider of electric hoist:
The main limit witch for upward/downward motions & second limit switch for upward motion:
The electrical control box of hoist with Siemens brand contactors and pendant pushbuttons control:
The package of hoist for delivery:
