Specifications

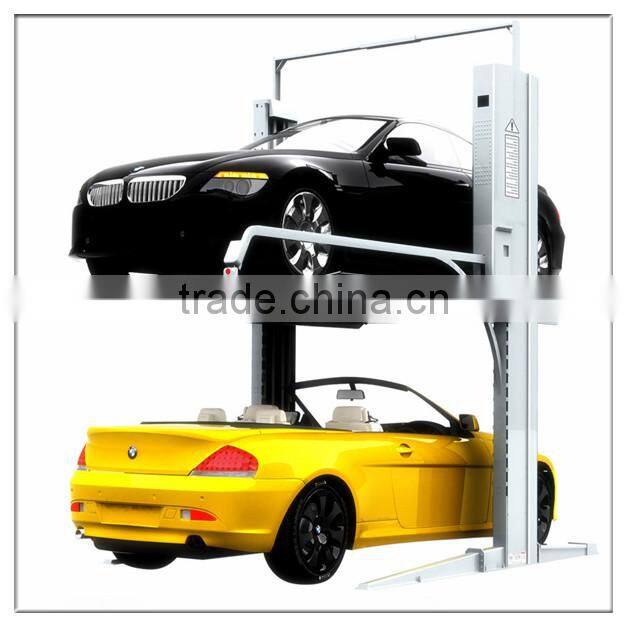

1. 2 cars garage mechanical car parking stack is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.

2.It can be widely used in hotels, enterprises and public institutions and residential area. Column can be N+1 form, saving land area, full use of space, property rights.

3.Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall.

4. Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow polluting the lower vehicles.

5. Spraying plastics, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics.

6. Simple structure, easy installation, minimal requirements for civil engineering.

We are dedicated to make your own car lift according to your requirements.

If any questions, please feel free to contact us. Service you by heart and soul .

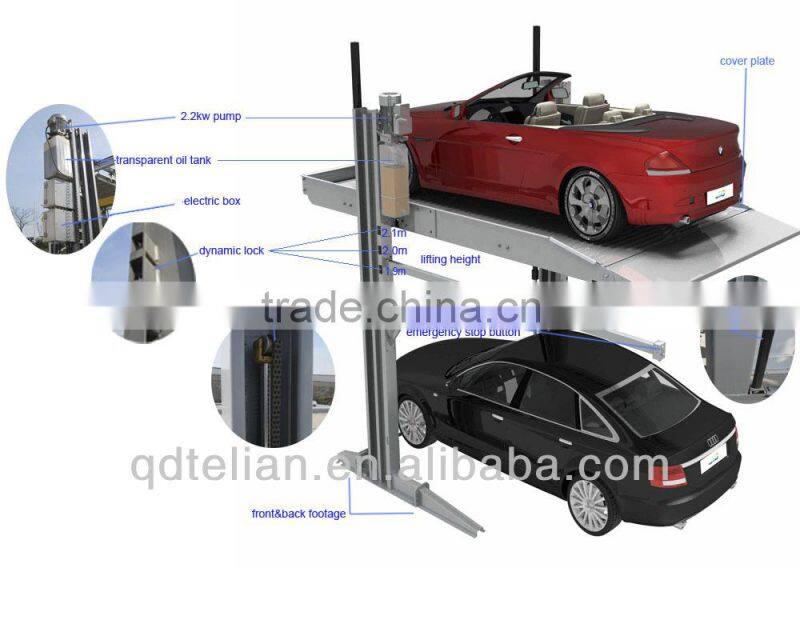

1.Multiple protective device

a. Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.

b. Limited switch device: to protect the equipment running.

c. Photoelectric switch (device for checking the entrance of people and vehicles): to prevent the people from accidently entering into the equipment under operation.

d. Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.

2.Oil cylinder

a. Used cylinder reversal, have many advantages, not distortion, dustproof.

b. Adopt Italy Aston Seal ring.

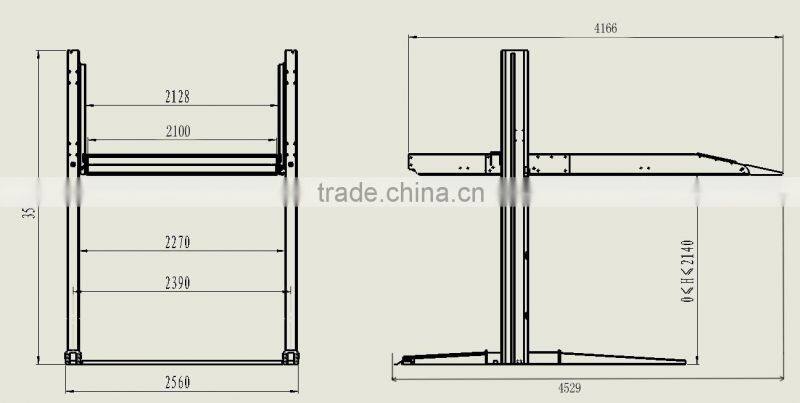

3.Adjusting lifting height, the maximum lifting height can be 2200mm. Usually, lifting height is 1900mm, 2000mm or 2100mm.

4.Lifting capacity can be 2700kgs.

5.Structure all adopts laser cutting, attractive appearance, easy installation, less questions, easy maintenance.

6.The width of car carrier board is 2100mm.

Quality is the life of enterprise,We attach great importance to quality.

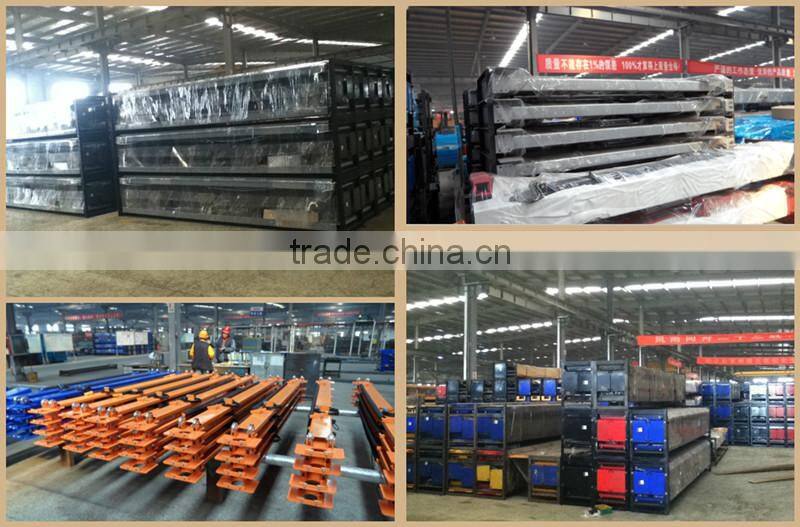

Packaging







FAQ

1.About  Delivery Term

Q: What's the delivery term for making business with us?

A:Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients.

2.About  Delivery Time

Q:What's the delivery time after placing the order?

A:Usually it takes 15-50 days after we received your down payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.

3.About Payment

Q: What's the payment?

A:By T/T, 50% is paid in advance; balance befor delivery .

4.About Min Order

 Q:What's the min order?

 A:1 set.

5.About Warranty

 Q:What's the warranty?

 A:1 year for free; after sales service for ever.
