Made in China Two Columns Home Parking Lift,two Post Parking Lift,car Parking Lift

Specifications

Product Description:

This parking system is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.

It can be widely used in hotels, enterprises and public institutions and residential area. Column can be N+1 form, saving land area, full use of space, property rights

Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall

Low noise, smooth operation, save energy, low carbon and environmental protection

Vehicle loading pallet fully enclosed design, to avoid oil leakage, rain and snow

Polluting the lower vehicles

Spraying plastics, high anti-corrosion ability, long life. Electrical and driving parts with waterproof characteristics

Simple structure, easy installation, minimal requirements for civil engineering

Product Advantage:

1.Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.

2.Limited switch device: to protect the equipment running.

3.Photoelectric switch (device for checking the entrance of people and vehicles):

to prevent the people from accidently entering into the equipment under operation.

4.Emergency switch: the emergency switch button is used to cut power off

when there is anything abnormal during the equipment process.

5.Used cylinder reversal, have many advantages, not distortion, dustproof.

6.Adopt Italy Aston Seal ring.

7.Adjusting lifting height, the maximum lifting height can be 2200mm.

8.Usually, lifting height is 1900mm, 2000mm or 2100mm.

9.Lifting capacity can be 2700kgs.

10.Structure all adopts layer cutting, attractive appearance.

11.Easy installation, less questions, easy maintenance.

12.The width of car carrier board is 2100mm.

 Product Specification:

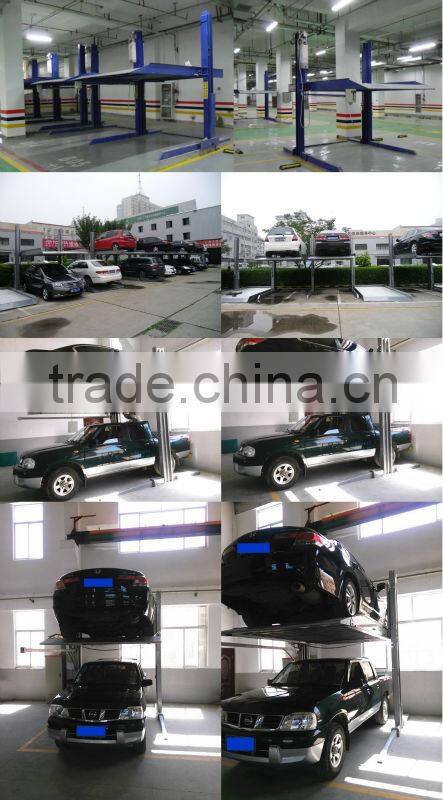

Product Picture:

Drawing:

Detail:

Qingdao Telian Machinery Co., Ltd. specializing in simple parking equipments, auto lift,

parking facilities, shot blasting machines' development and production. Main products are

two post parking lift, four post parking lift, tilting parking lift, pit type parking lift, liftsliding

parking equipment, parking locks, road brake etc.

save land area,high rate of land usage, convenient installation, low noisy.

Parking systems adopt different site conditions.

If any questions,please feel free to contact us,thanks!
