hydraulic Four post vehicle parking garage for sale

Specifications

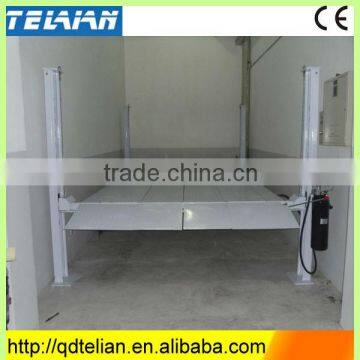

4 post parking car lift

Technical parameters

Feature:

The best choice for parking and simple repair

Hydraulic driven, cable lifter system

Manual or electric single point release

Automatic lock system ensure safety at different heights

Maintenance free load bearing

Stop blocks in all posts for added safety

Moveable drips trays prevent pollution of vehicle on floor

Caster kit for moving the lift easily

Mold machining through the whole process so that the parts are universal and interchangeable

120% capacity dynamic load test and 150% capacity static load test

Italian oil seal to make sure no oil leakage

Solenoid valve with emergency manual drop function

Optional manual pomp for lock release in case of power off

Optional 24 control box and solenoid valve

Specifications:

Working noise:         ≤75dB(A)

Rise time:             60s

Drop time:             90s

Working temperature:   -5 °C ~ 40 °C

Motor power:           2.2kw / 220v, 380v

Relative humidity:       80%

Using altitude:         ≤ 1000m

Lifting capacity:         7,000lbs/3200kgs

Lifting height:           1755mm

Width between runways:   956mm

20 Container:             12 sets

40 Container:             24sets
