aerial lift equipment

Place of Origin	Guangdong, China		Brand Name	Extreme
Model Number	GTWY-9-2,GTWY-10-2,GTWY-11-2,GTWY-12-2,GTWY-13-2,GTWY-14-2,GTWY-14-2G		Lift Mechanism	Lift Chain
Lift Drive / Actuation	Electric Motor		Power	1.5kw-2.2kw
Rated Loading Capacity	272kg		Min. Lifting Height	9m
Max. Lifting Height	18m		Table Size	1.80m x 0.69m x 1.1
Weight	680kg-980kg

Specifications

Aerial working equipment
1. CE and ISO certificated.
2. Stable and safety lifting and lowering
3. Single mast,6-13.8m heigh

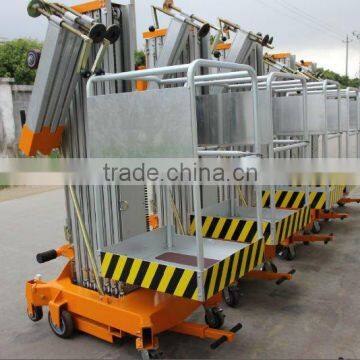

Aerial working equipment--Single mast aerial work platform



Code	GTWY-6		GTWY-8	GTWY-9	GTWY-10	GTWY-11	GTWY-12	GTWY-12G
Work height(m)	7.8		9.8	10.8	11.8	12.8	13.8	13.8
Platform height(m)	6		8	9	10	11	12	12
Carrying capacity(kg)	150		150	136	136	120	120	120
Storage length(m)	1.3		1.34	1.34	1.4	1.46	1.52	1.43
Storage width(m)	0.76		0.76	0.76	0.76	0.76	0.76	0.76
Storage height(m)	1.99		1.99	1.99	1.99	1.99	1.99	2.78
Work platform size(m)
Platform length(m)	0.68		0.68	0.68	0.68	0.68	0.68	0.68
Platform width(m)	0.64		0.64	0.64	0.64	0.64	0.64	0.64
Guardrail height(m)	1.1		1.1	1.1	1.1	1.1	1.1	1.1
Supporting leg size(m)	1.55x1.35		1.68x1.48	1.75x1.55	2.10x1.83	2.23x1.9	2.45x2.06	2.26x2.06
Volatage(v)ACxDC	220/12		220/12	220/12	220/12	220/12	220/12	220/12
Electricity machine pressure(kw)	0.75		0.75	0.75	0.75	0.75	0.75	0.75
Raise/drop speed(m/s)	0.18/0.30		0.18/0.30	0.18/0.30	0.18/0.30	0.18/0.30	0.18/0.30	0.18/0.30
Machine-weight(kg)	320/355		370/405	375/410	410/415	435/470	460/495	460/495
Inclined collection size								2.78 x 0.75x1.99





Its good feature:

----Strengthen Aluminum alloy design,make sure it is handled fluently;

mast will not deformate,construction is nicety and compact,machine body design is legerity.

---- All the hydraulic pressure pumping station and motor are all imported original from Occident,

----Inner back-up electrical source and manual valve design,insure drop the control flat roof in the roof or ground if break the electricity when you doing high-altitude work.

----There is movable wheel in the machine shelf base,can supply better turn off function,and east to span common ground bars.

----Lifting chain load safety factor more than 10:1,also have steel wire safety protect systerm,make sure lift and drop fluently and safely.supporting leg occupy area is very small,

The biggest distance between flat roof and wall is 0.34m after fix,it is very convenient to work.

----light-duty,single series high altitude work flat roof, electrohydraulic transmission,safety and credibility,the highest work altitude can reach 13.8m,the biggest load can reach 150kg.

----We use universal safety inserting leg,can interlock with brainpower electrically controlled,can protect worker oblige.

----Lift and fall roofs volume is small,weight is light,very flexible to move and very easy to go through room door and elevator door.Quality and capability exceed JC5099-1998,JG/T5103-1998,and CE.





Then you can lift and down the machine to do cleaning,maintaining and other work:



From Extreme
