slope car parking lift

PTJ301-20 Tilt Parking Lift

Production Description

PTJ301-20 tilt parking lift is designed of two spaces of up and down as one unit. The bottom car can go in and out directly. When the upper space needs to park a car, the car in the bottom should be driven out.

Product advantage

The maximum lifting height can be 1750mm. The maximum lifting weight is 2000kg. This type parking lift is available for sedan.

The upper platform can inclines to make full use of the space. Compared with the net height of other 2-level parking equipment, the net height of our equipment is required to be not less than 3100mm or 2900mm.

The device size is according to customer’s requirement.

Hydraulic drive, chain balancing device to ensure the balance both ends of rise and fall.

Vehicle platform fully enclosed design to avoid oil leakage polluting the bottom car.

Structure all adopts laser cutting, attractive appearance, easy installation, less questions, easy maintenance.

It can be widely used in hotels, enterprises and public institutions and residential area.

Specifications

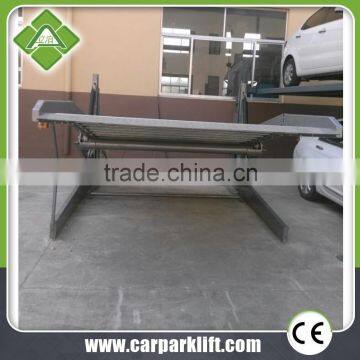

Product Picture

Drawing

Detail

One year guarantee for parts and five years for main structure.

24 hours technical surport by e-mail Calling or door to door service.

To meet different user purposes, we provide customized service. Including lifting capacity, lifting height, dimension of platform, color and so on.

Q: How many cars could be parked for each set?

A: 2 cars.

Q: Could PTJ301-27 be used for paking SUV?

A: Yes. PTJ301-27 used for parking 1 SUV and 1 Sedan.

Q: Is PTJ301-27 used indoor or outdoor?

A: Both of them are avaliable.

Q: What's the MOQ?

A: 1 set.

Q: What's the supply voltage?

A: Standard voltage is 220v, 50Hz, 1Phase or 380v, 50Hz, 3Phase. Other voltage could be customized according to clients' request.

Q: Is the installation simple?

A: Yes. Most of structure and parts are pre-positioned in factory. Detailed installation manual and drawing are provided from us. If the project is necessary, we could send our engineer for site guidance.Just one person could operate the lift by key switch, without any specail training.

Q: warranty

A: 5 years for structure and 1 year for parts.
