High quality VERTICAL MACHINE CENTER VMC850 4-axis, 5-axis

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Vertical
Place of Origin	Shandong, China	Brand Name	Pulute Machine Pulutek
Model Number	VMC850 VMC1060	Voltage	200/400V
Power(W)	5.5/7.5KW	Dimension(LWH)	278024502700KG
Weight	6000KG	Certification	ISO9001 ISO14001 CE
Warranty	One year warranty	After-sales Service Provided	Engineers available to service machinery overseas

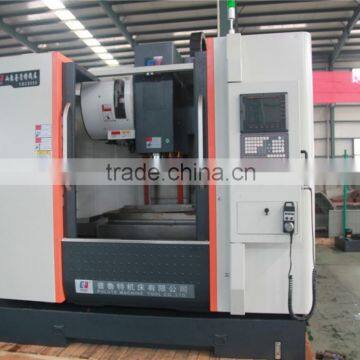

VMC850 VERTICAL MACHINE CENTER

1. SPECIFICATION

	VMC850
Table size	1050*500 mm
X axis travel	800 mm
Y axis travel	500 mm
Z axis travel	550 mm
Distance between spindle center and column	550 mm
Distance between spindle nose and table	105-655 mm
T-slot (No.* slot width *spacing)	3-18*150 qty-mm
Spindle taper	BT40
ATC type	24-pcs tools, disk type
Speed speed	8000 rpm
Spindle motor	7.5/11 kw
X.Y.Z axis servo motor	2.0/2.0/2.0 kw
Max.load capacity of work table	600 kg
X.Y.Z rapid feed speed	20/20/20 m/min
X.Y.Z cutting feed speed	1-10 m/min
X.Y.Z axis position accuracy	±0.005/300 mm
X.Y.Z axis reposition accuracy	±0.003 mm
Dimension (LWH)	2700×2250×2700 mm
N.W.	5 Tons (5000kg)

2. FEATURES

High quality resin-coated sand casting

Taiwan spindle

Taiwan ball screw and locking nut

Taiwan pressure cylinder

Japan NSK bearing

Germany R+W coupling

Automatic lubrication system

Chip conveyor optional

3. Standard/Optional

Boxway guideways, Linear x3/2/1 optional

24 pcs disc type magazine, 16 pcs hat ( umbrella ) type optional

Chip conveyor optional

12000rpm spindle optional

4th/5th axis optional

KND 1000M system standard, (KND 2000M,GSK, Siemens, Fanuc, etc OPTIONAL).

4. Custom-making, OEM services avail
