small Gantry types vertical and horizontal maching center GVHMC65
- 10 Set / Sets per Month
- T/T
You May Like
Product Details
Condition | New | Type | Gantry | |
Place of Origin | Shandong, China | Brand Name | PULUTE | |
Model Number | LMT80/100 | Voltage | 220V/380V | |
Power(W) | 15/18KW | Dimension(L*W*H) | 5*5*4METER | |
Weight | 10MT | Certification | ISO9001 | |
Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

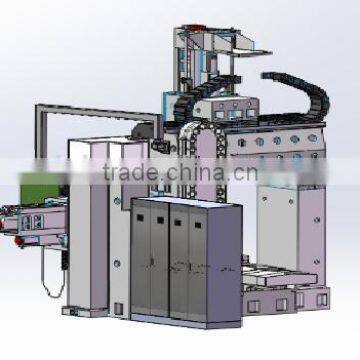

Gantry types vertical and horizontal maching centers,
not only can be used as gantry type vertical machining with ATC, also do horizontal machinining with ATC
ITEMS |
|
| ||
GVHMC65 | GVHMC80 | |||
Table size | Long table | mm | 650X1300 650X1650 650X2000 | 800X1600(800X1500)800X2000 800X2400 |
Add-on rotary table | mm | 630X630 | 800X800 | |
Built-in rotary table | mm | Φ800 | Φ1000 | |
Built-on rotary table | mm | 630X800 | 800X1000 | |
Two changable rotary table | mm | 630X630 | 800X800 | |
mm | 630X800 | 800X1000 | ||
Max table loading | Base table | kg | 2 | 3 |
Rotary table | kg | 1.5 | 2 | |
Max height thru- gantry | Base table | mm | 1200 | 1300 |
Add-on table | mm | 900 | 1100 | |
Add-on rotary table | mm | 720 | 800 | |
Built-on rotary table | mm | 950 | 1100 | |
Max width thru-gantry |
| mm | 1200 | 1400 |
Vertical Spindle nose to table | Base table | mm | 1000 | 1100 |
Add-on table | mm | 800 | 900 | |
Add-on rotary table | mm | 530 | 750 | |
Built-on rotary table | mm | 950 | 1100 | |
Table to floor | Base table | mm | 700 | 730 |
Add-on table | mm | 900 | 930 | |
Add-on rotary table | mm | 1080 | 1110 | |
Built-on rotary table | mm | 900 | 935 | |
X travel |
| mm | 1500,1850,2200 | 1600/1800,2200,2600 |
T-slot |
| mm | 18X7X125 | 18X7X150 |
Y travel |
| mm | 1095 | 1100 |
Z travel |
| mm | 700 | 800 |
W travel |
| mm | 700 | 800 |
V travel |
| mm | 800 | 970 |
Horizontal spindle center to table | Base table | mm | 800 | 900 |
Horizontal spindle nose to table side | Base table | mm | 275 | 275 |
Spindle | Spindle taper |
| BT40 | BT50 |
speed | rpm | Rated 2000, Max 8000 | Rated 2000, Max 6000 | |
Main motor | KW | 7.5/11 | 13/18.5 | |
Feeding motors | Y axis |
| 3KW, 2000rpm | 4.2KW, 2000rpm |
X,Y,Z,W,V |
| 3.2KW, 2000rpm | 3.6KW, 2000rpm | |
Rapid traverse | X,Y,Z,W axis | mm/min | 20 | 20 |
V axis | mm/min | 15 | 15 | |
Feeding speed | X,Y,X,V,W axis | mm/min | 10000 | 10000 |
Positioning accuracy | positioning | mm | 0.025/1000 M 0.015/1000 | 0.025/1000 M 0.015/1000 |
Repeatability | mm | 0.015 M0.008 | 0.015 M0.008 | |
Rotary table (C-axis)
| Servo motor |
| 2.5KW, 1500rpm | 3KW, 1500rpm |
Speed | r/min | 11.1 16.7 | 11.1 16.7 | |
Positioning accuracy | NC | 30" M 10" | 30" M 10" | |
Hydraulic | 6" | 6" | ||
Repeatability | NC | 15" M 4" | 15" M 4" | |
Hydraulic | 2" | 2" | ||
Magazine-ATC | Vertical spindle |
| Disc: BT50-24T | Disc: BT50-24T |
Horizontal spindle |
| Row: BT50-10T | Row: BT40-12T | |
Chain type for both vertical & horizontal spindles |
| BT50-40T 60T 80T 100T 120T | BT40-40T 60T 80T 100T | |
Overall size | LXWXH | mm | 5000(5400,5800) x4500x4000 | 5400(5800,6200) x4700x4200 |
N.W. |
| T | 14 17 20 | 20 22 25 |
PLY WOOD CASES, WOODEN CASES, PER CUSTOMERS
